Home >> Pontiac >> 2006 >> Wave (CANADA) L4-1.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Automatic Transmission/Transaxle >> Shifter A/T >> Automatic Transmission Shift Lever (North America)

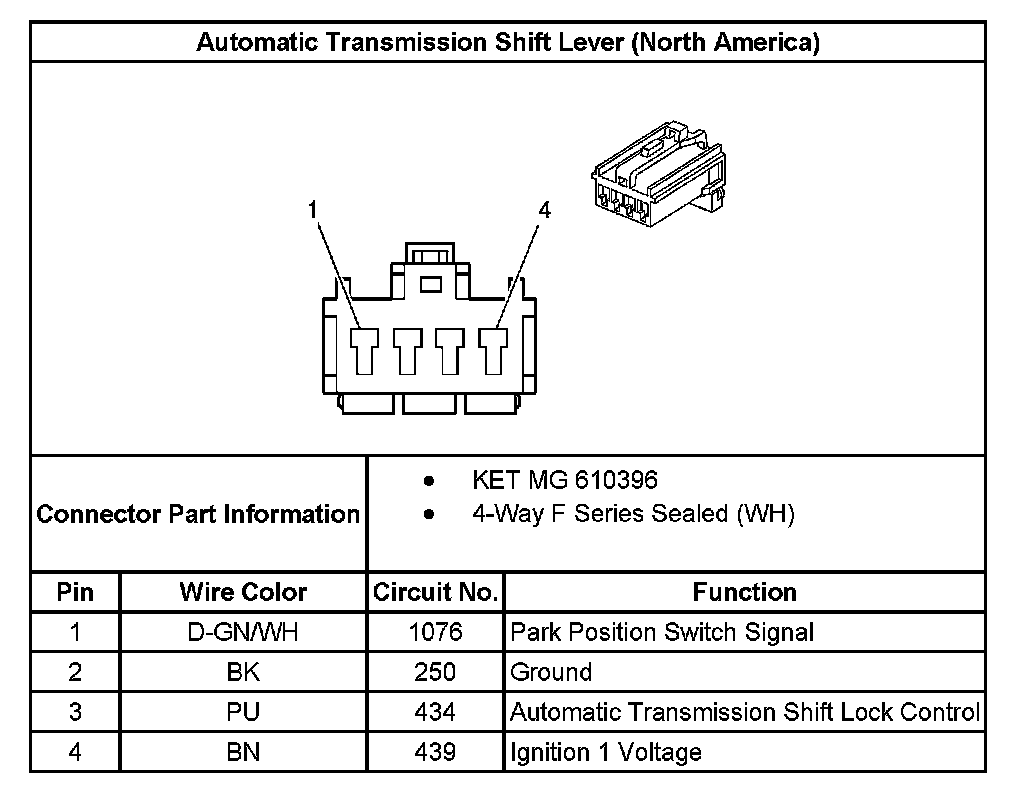

Automatic Transmission Shift Lever (North America)

Automatic Transmission Shift Lever (North America):
