Home >> Pontiac >> 2006 >> Wave (CANADA) L4-1.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module >> Inflatable Restraint Sensing And Diagnostic Module (SDM) LHD

Inflatable Restraint Sensing And Diagnostic Module (SDM) LHD

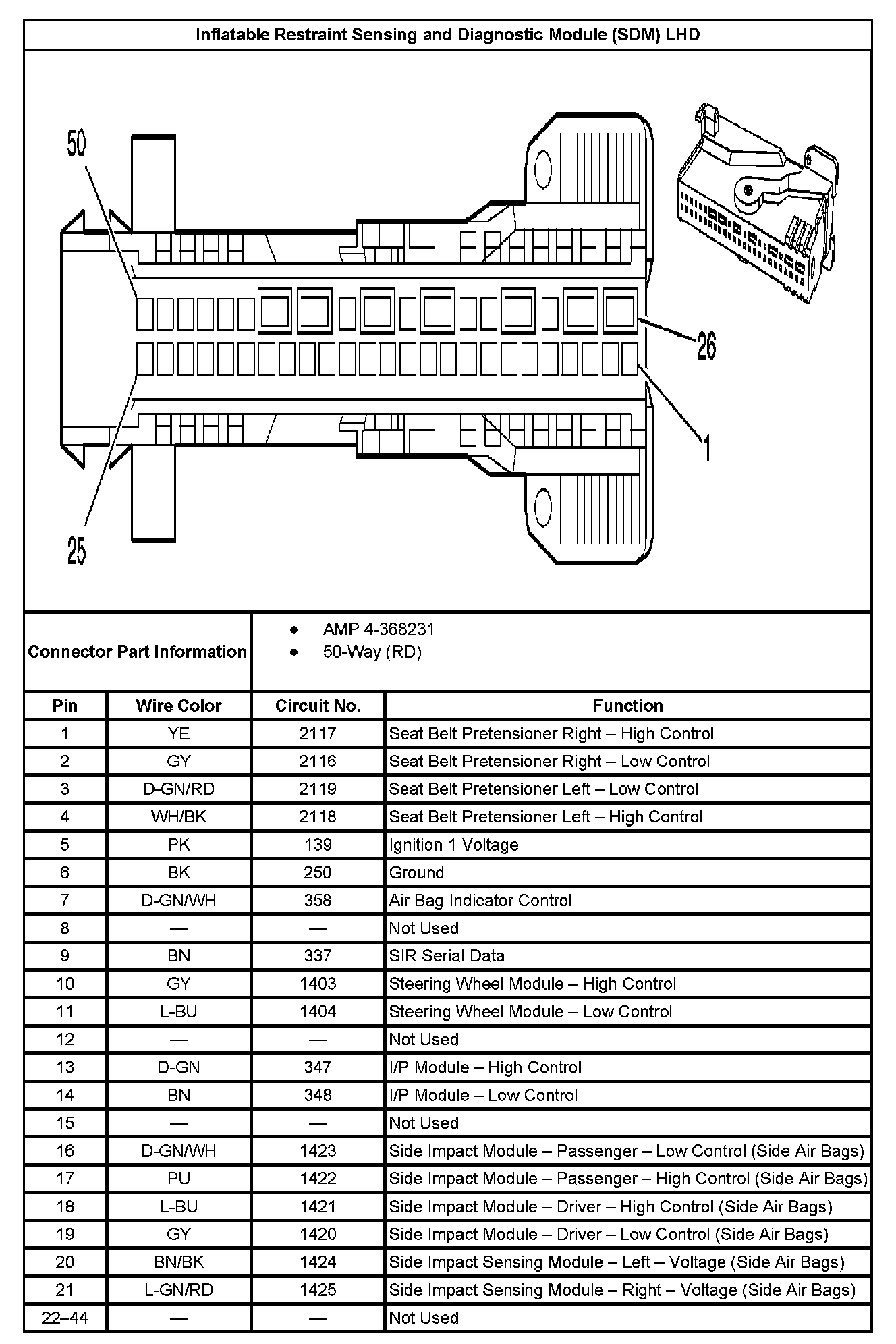

Inflatable Restraint Sensing And Diagnostic Module (SDM) LHD (Part 1):

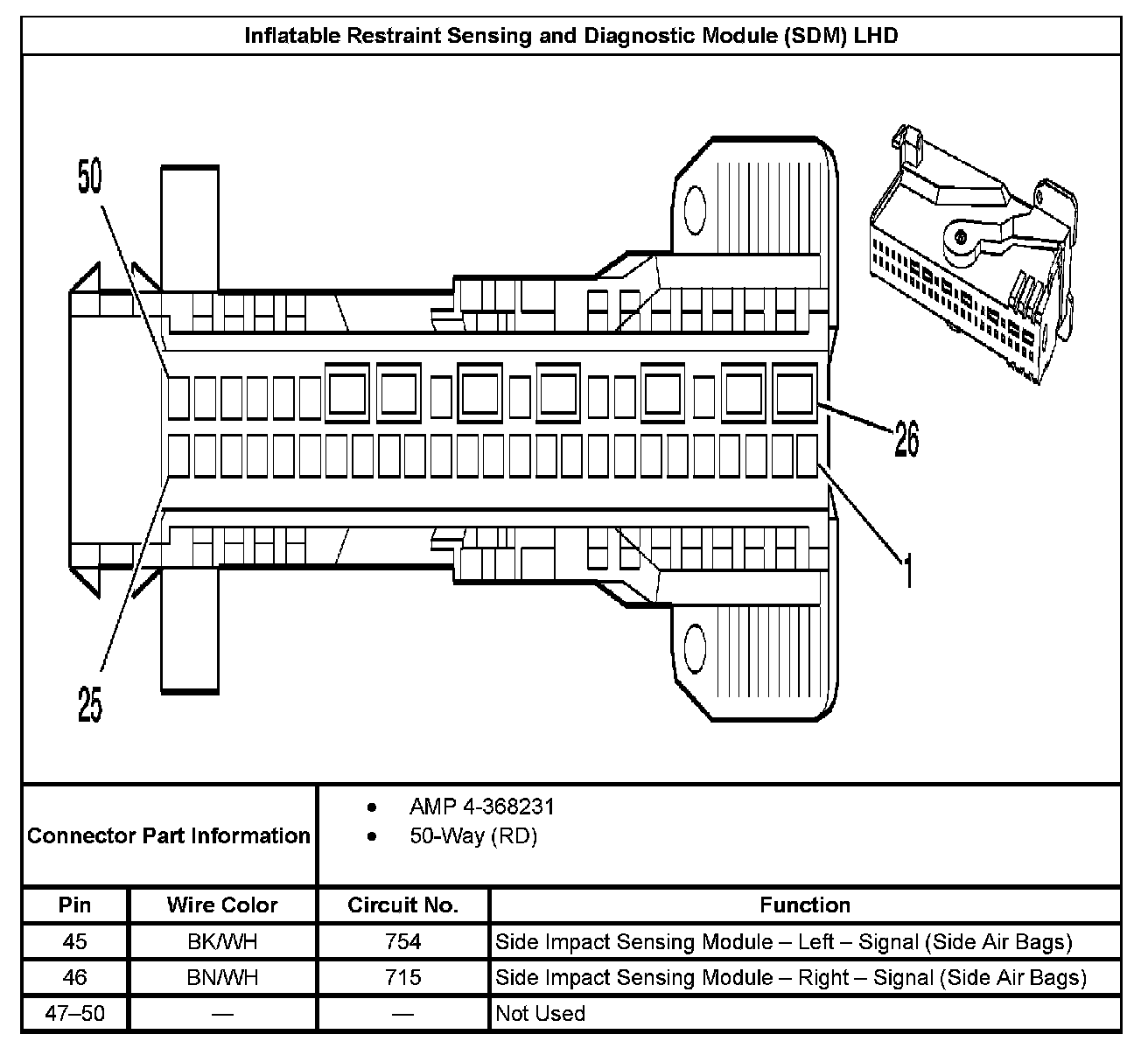

Inflatable Restraint Sensing And Diagnostic Module (SDM) LHD (Part 2):
