Trim Panel Replacement - Upper Center Pillar

Trim Panel Replacement - Upper Center Pillar

Removal Procedure

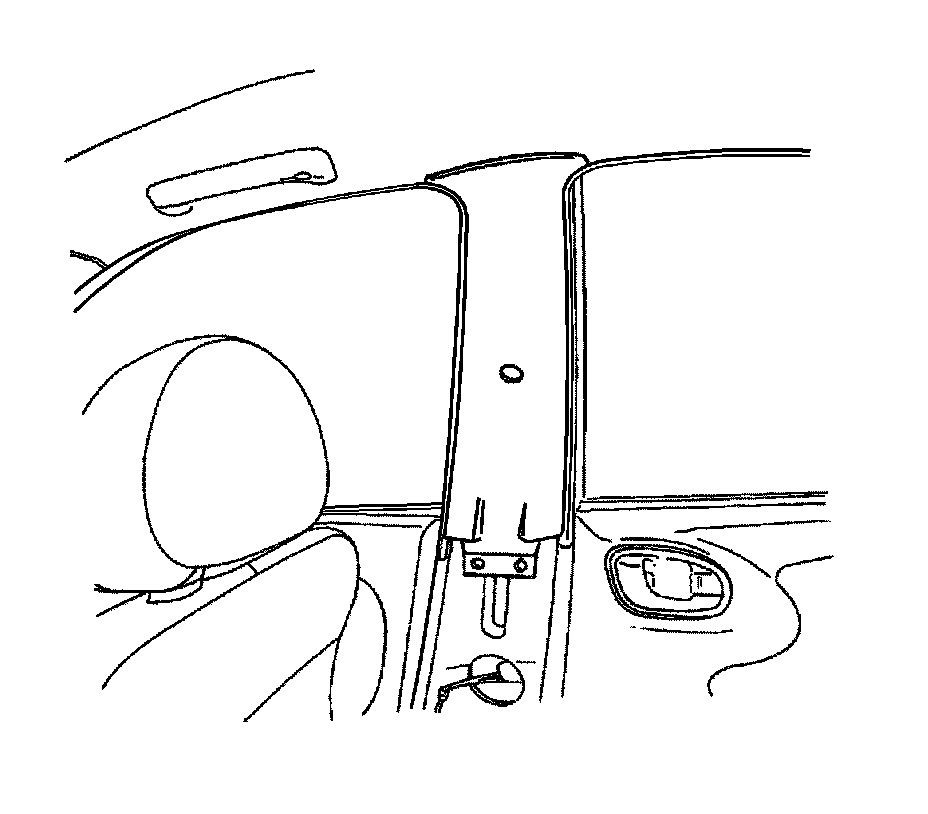

1. Remove the bolt and the upper front seat belt anchor.




2. Remove the lower center pillar trim panel. Refer to Trim Panel Replacement - Lower Center Pillar (Removal and Replacement) .

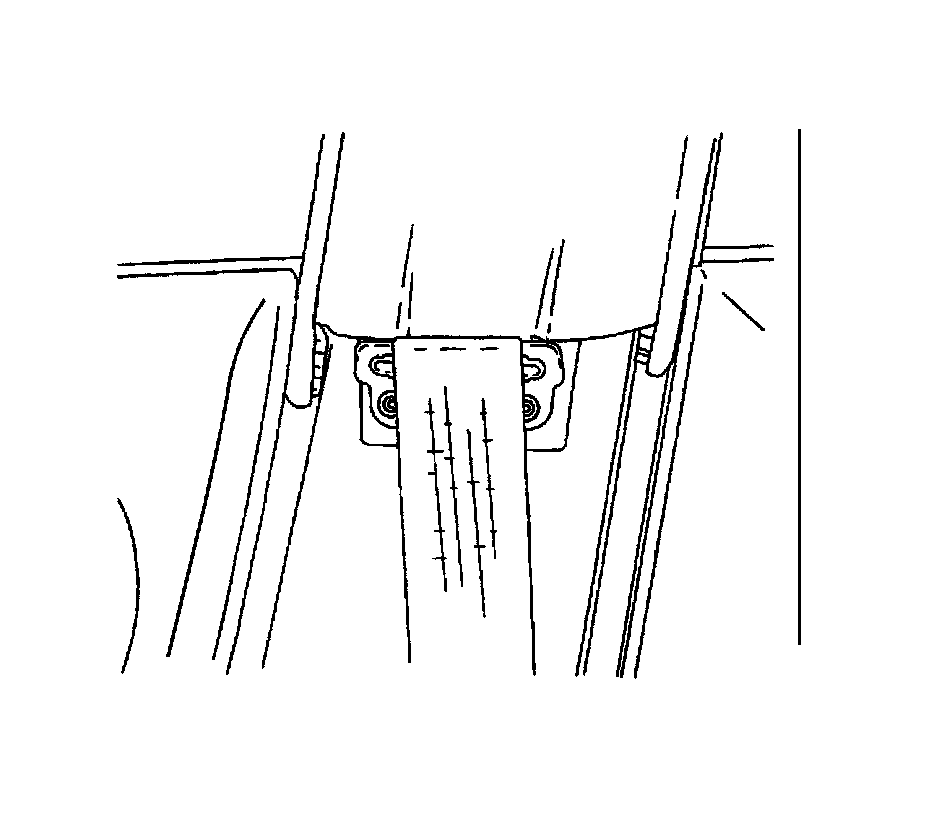

3. Remove the screws and the seat belt bracket.

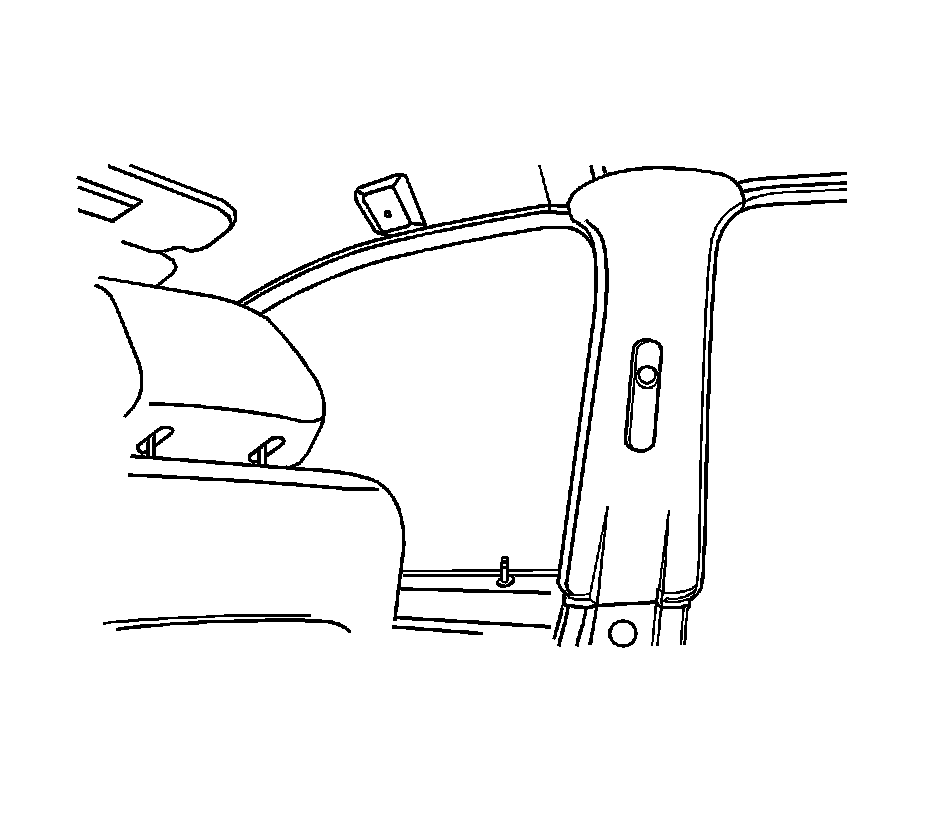

4. Pry off the upper center pillar trim panel.



Installation Procedure





1. Install the upper center pillar trim panel.





Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the seat belt bracket with the screws.

Tighten the seat belt bracket screws to 10 N.m (89 lb in).





3. Install the lower center pillar trim panel. Refer to Trim Panel Replacement - Lower Center Pillar (Removal and Replacement) .
4. Install the upper front seat belt anchor with the bolt.

Tighten the seat belt anchor bolt to 38 N.m (28 lb ft).
