Trim Panel Replacement - Rear Quarter Upper

Trim Panel Replacement - Rear Quarter Upper

Removal Procedure





1. Remove the seat belt from the rear quarter upper trim panel.
2. Remove the rear rocker trim panel.
Refer to Door Sill Plate Replacement - Rear (Service and Repair)

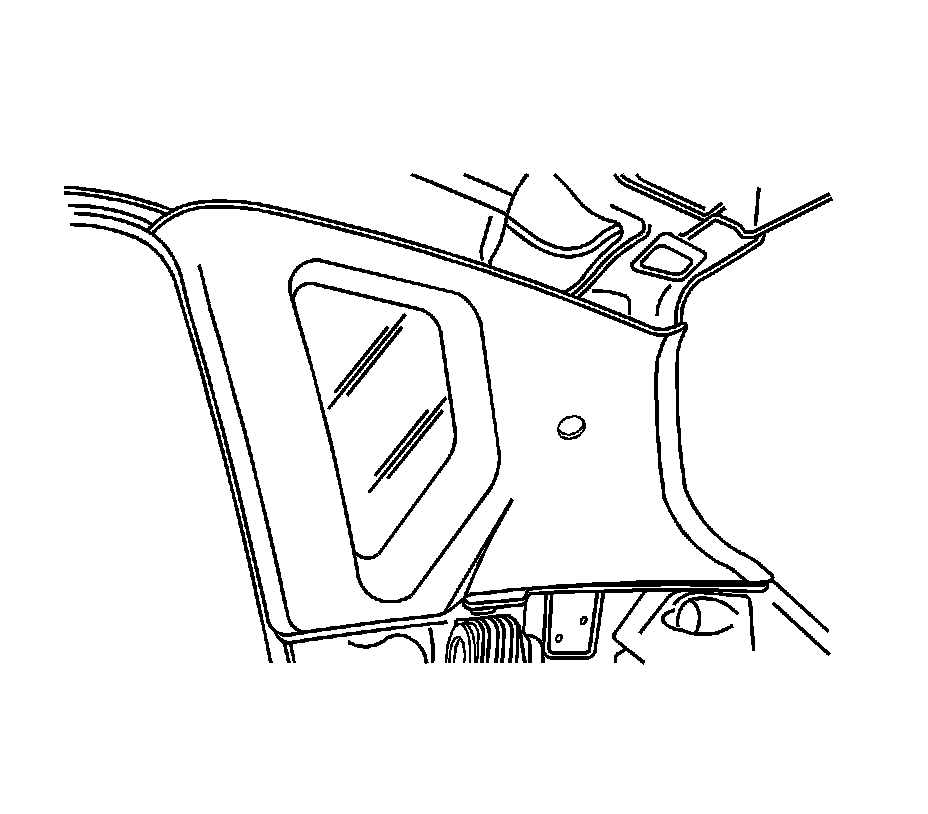

3. Remove the rear quarter upper trim panel.



Installation Procedure





1. Install the rear quarter upper trim panel.
2. Install the rear rocker trim panel.
Refer to Door Sill Plate Replacement - Rear (Service and Repair) .
3. Install the seat belt from the rear quarter upper trim panel.
