Trim Panel Replacement - Rear Quarter



Trim Panel Replacement - Rear Quarter

Removal Procedure

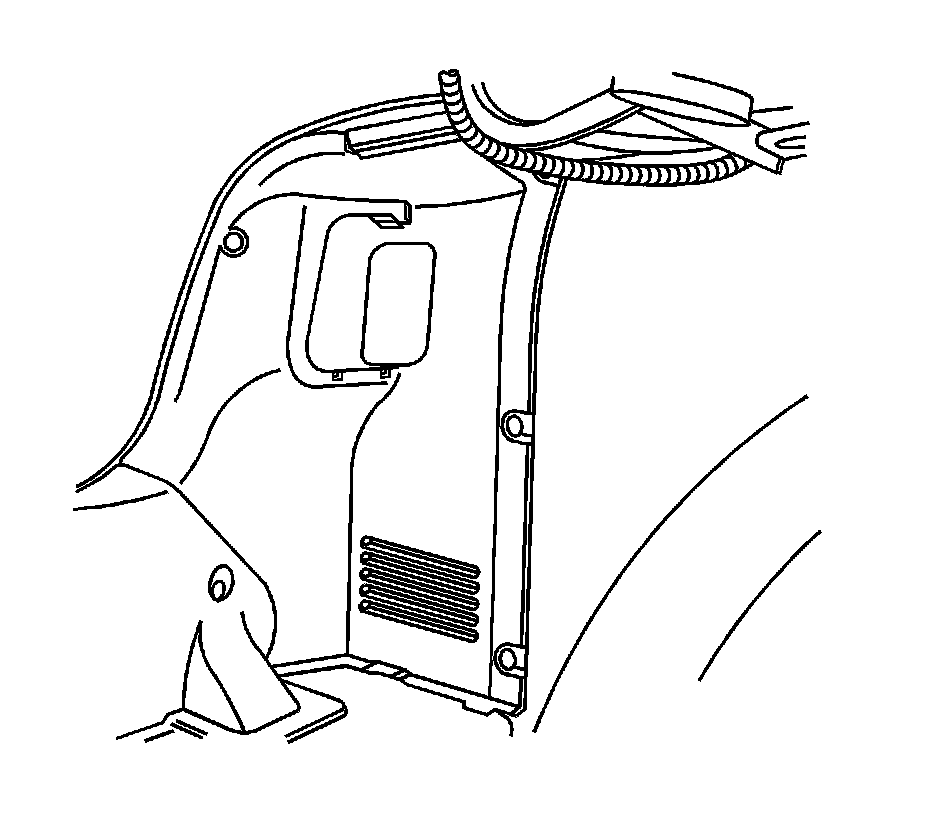

Remove the plastic retaining clips and the rear quarter trim panel.


Installation Procedure





Install the rear quarter trim panel with the plastic retaining clips.
