Trim Panel Replacement - Front Door

Trim Panel Replacement - Front Door

Tools Required

J 21104-B (KM 475-B) Weatherstrip Remover Universal


Removal Procedure





1. Lower the front window.

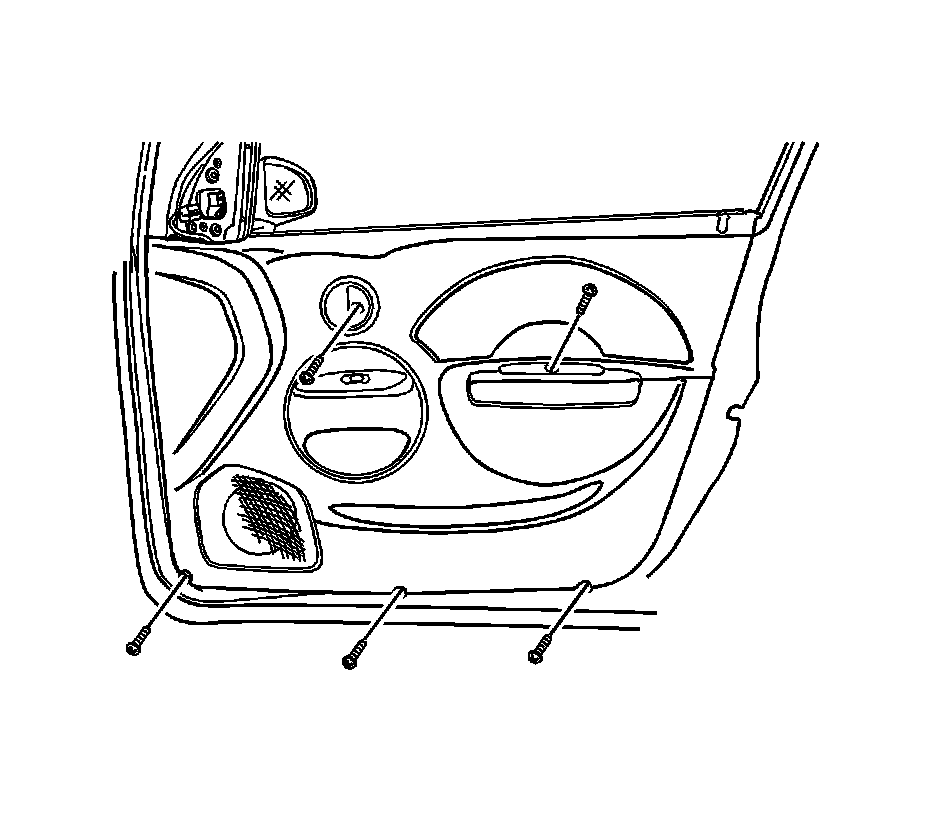

2. Remove the door pull screw.
3. Remove the inside door handle.
4. Remove the screws at the base of the trim panel.




5. Pry off the trim panel using the trim remover J 21104-B (1).



Installation Procedure





1. Install the trim panel.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the screws at the base of the trim panel.

Tighten the trim panel screws to 3.5 N.m (31 lb in).

3. Install the inside door handle.




4. Install the door pull screw.

Tighten the door pull screw to 3.5 N.m (31 lb in).

5. Raise the window.
