Passenger Assist Handle: Service and Repair

Assist Handle Replacement

Removal Procedure

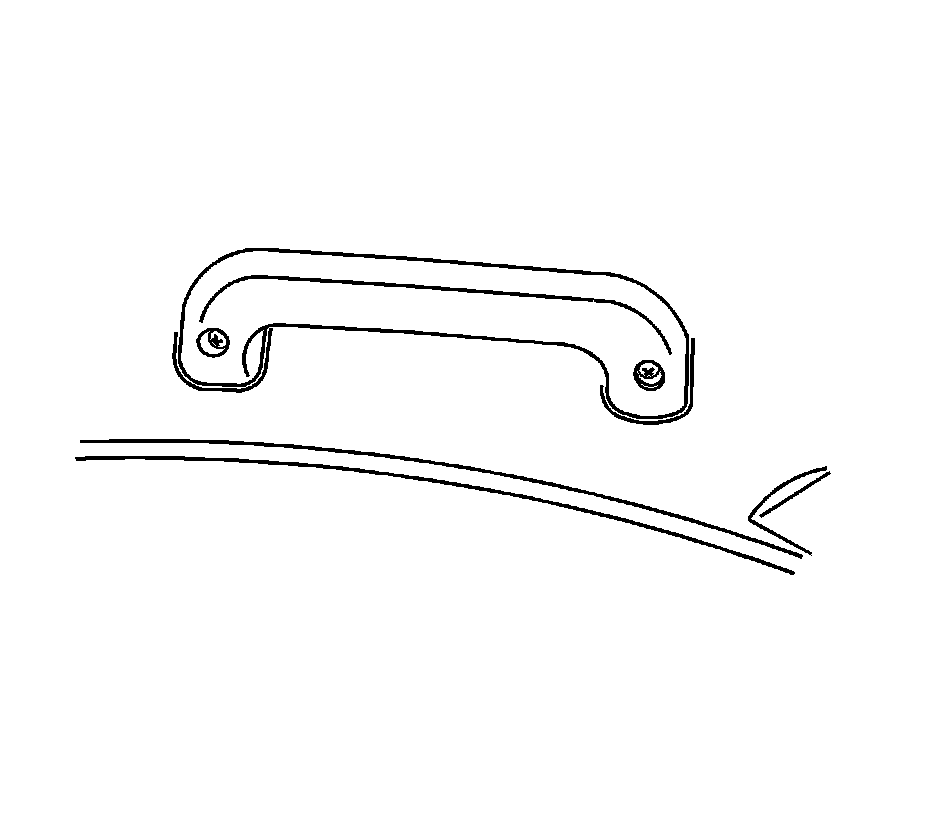

Remove the screws and the assist handle from the headliner.


Installation Procedure





Notice: Refer to Fastener Notice in Cautions and Notices.


Install the assist handle to the headliner with the screws.


Tighten the passenger assist handle screws to 3.5 N.m (31 lb in).
