Auxiliary Audio/Video Control Replacement

AUXILIARY AUDIO/VIDEO CONTROL REPLACEMENT

REMOVAL PROCEDURE




1. Disconnect the negative battery cable.

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

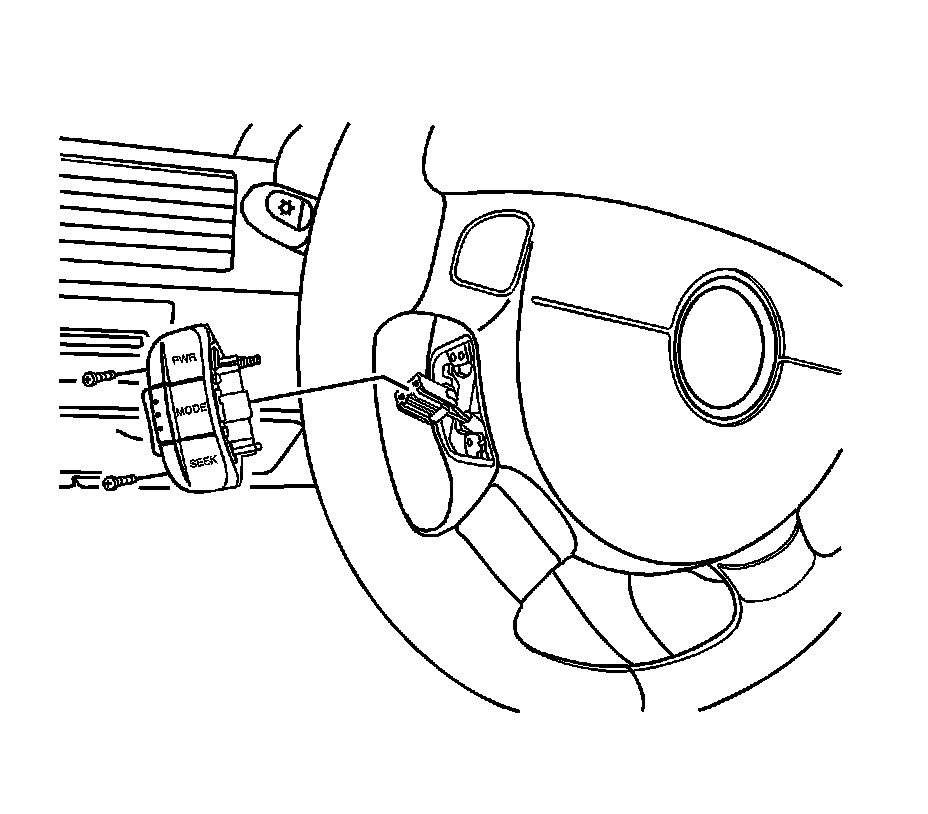

2. Remove the screws and the audio remote controller.

INSTALLATION PROCEDURE




1. Install the audio remote controller with the screws.
2. Connect the negative battery cable.
