DTC 032
DTC 032
CIRCUIT DESCRIPTION
When the ignition switch is turned to ON, the sensing and diagnostic module (SDM) will perform a turn-on test to diagnose critical malfunctions within the SDM itself.
If air bag inflation was caused by a vehicle collision, the SDM maintains warning lamp ON and the entire air bag system, including the SDM, air bag module, and wiring should be replaced.
DTC DESCRIPTOR
This diagnostic procedure supports the following DTC:
DTC 032
CONDITIONS FOR RUNNING THE DTC
Ignition voltage is within the normal operating voltage range.
CONDITIONS FOR SETTING THE DTC
The history of the air bag inflation or belt pretensioner explosion is in the SDM.
ACTION TAKEN WHEN THE DTC SETS
The SDM commands the AIR BAG indicator ON.
CONDITIONS FOR CLEARING THE DTC
The condition responsible for setting the DTC no longer exists and the scan tool Clear DTCs function is used.

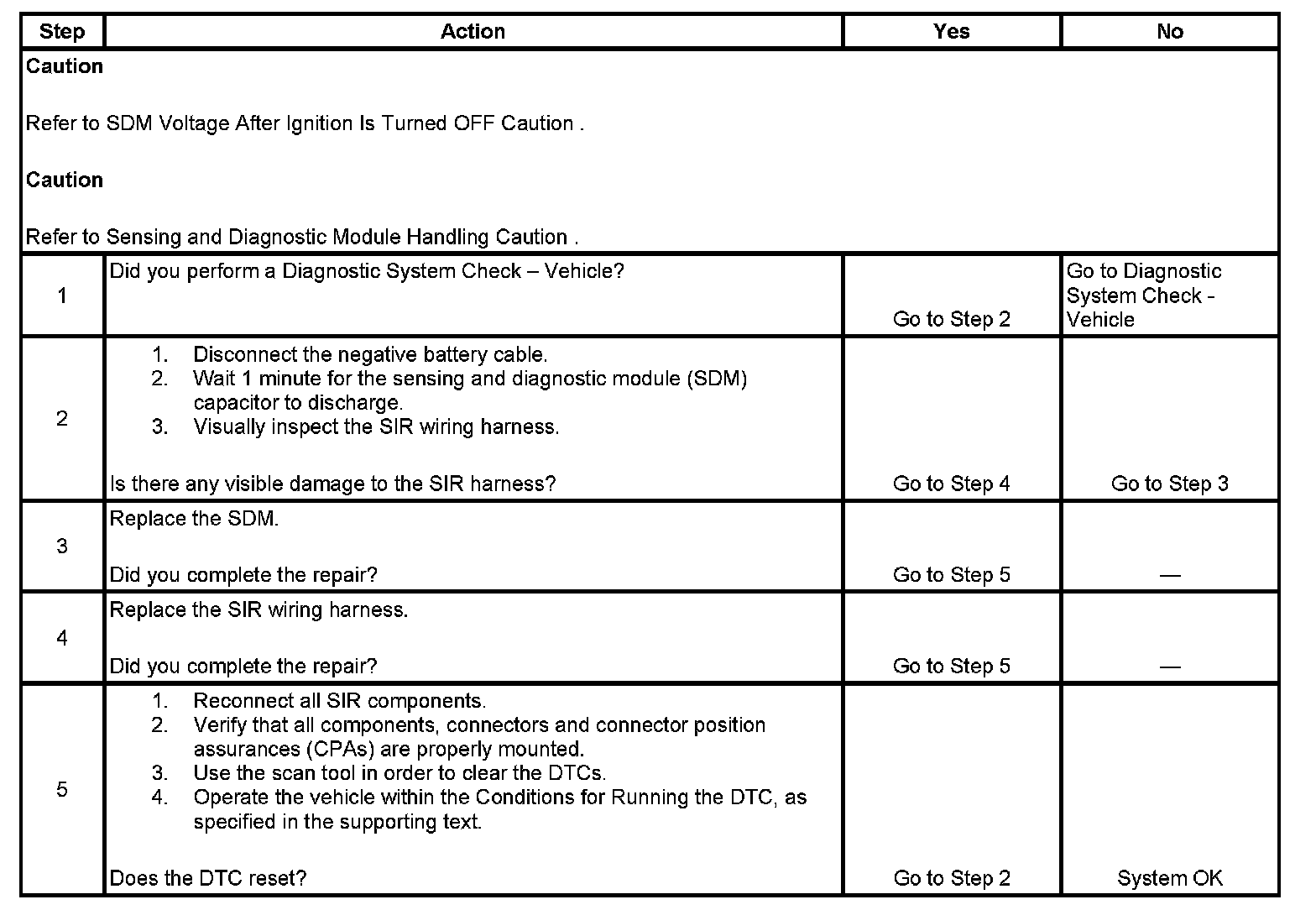

TEST
