Timing Chain Tensioner
Use the following steps in order to install the timing chain tensioner:

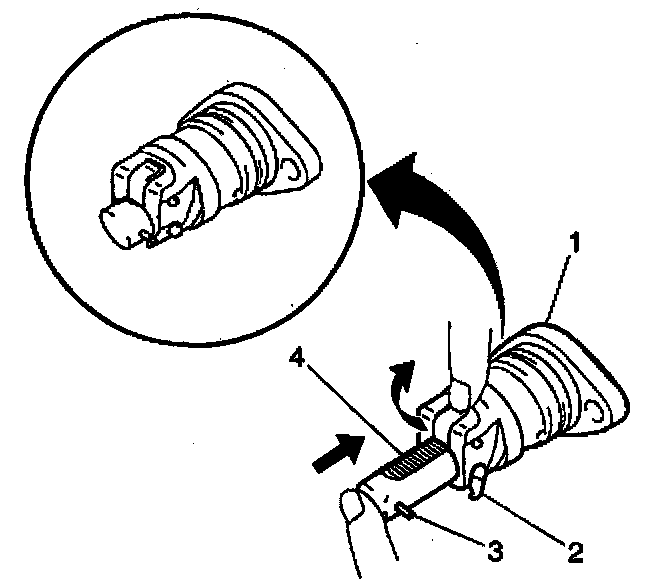

Fully depress the plunger (4).
Apply the hook (2) to the pin (3)
Install the timing chain tensioner
Timing Chain Tensioner Bolts 10 Nm (89 inch lbs.)
