Relay Box

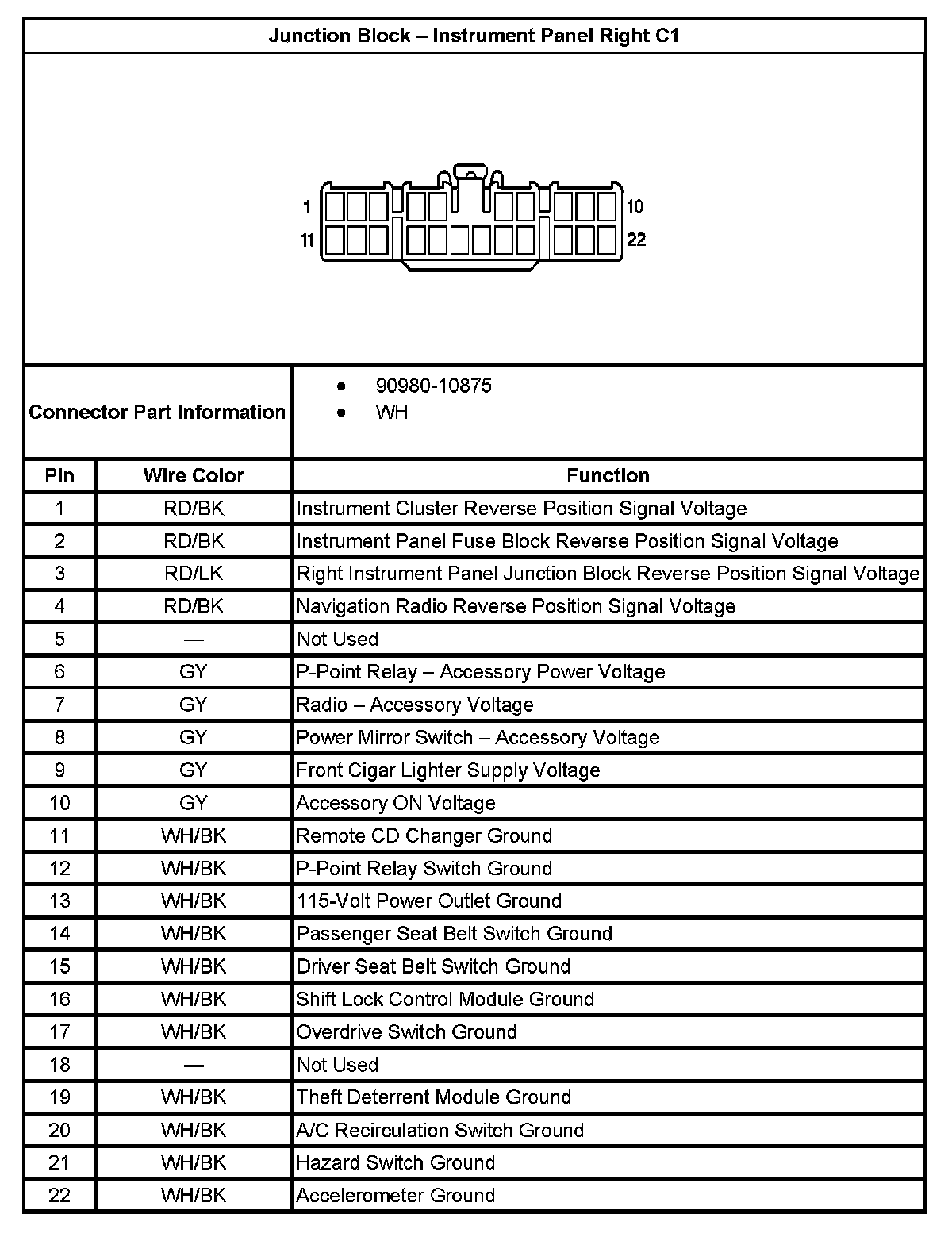

Junction Block - Instrument Panel Right C1:

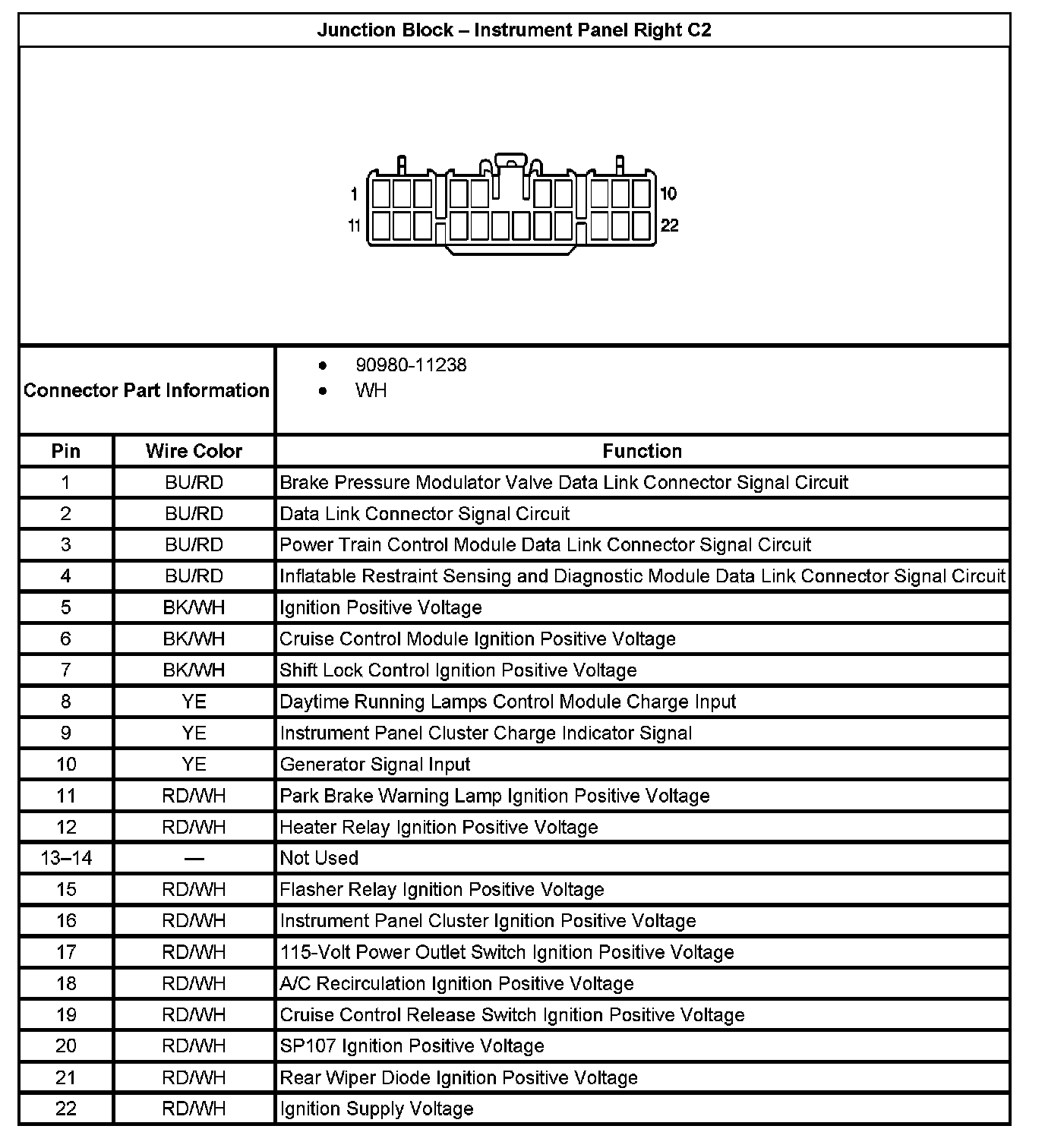

Junction Block - Instrument Panel Right C2:

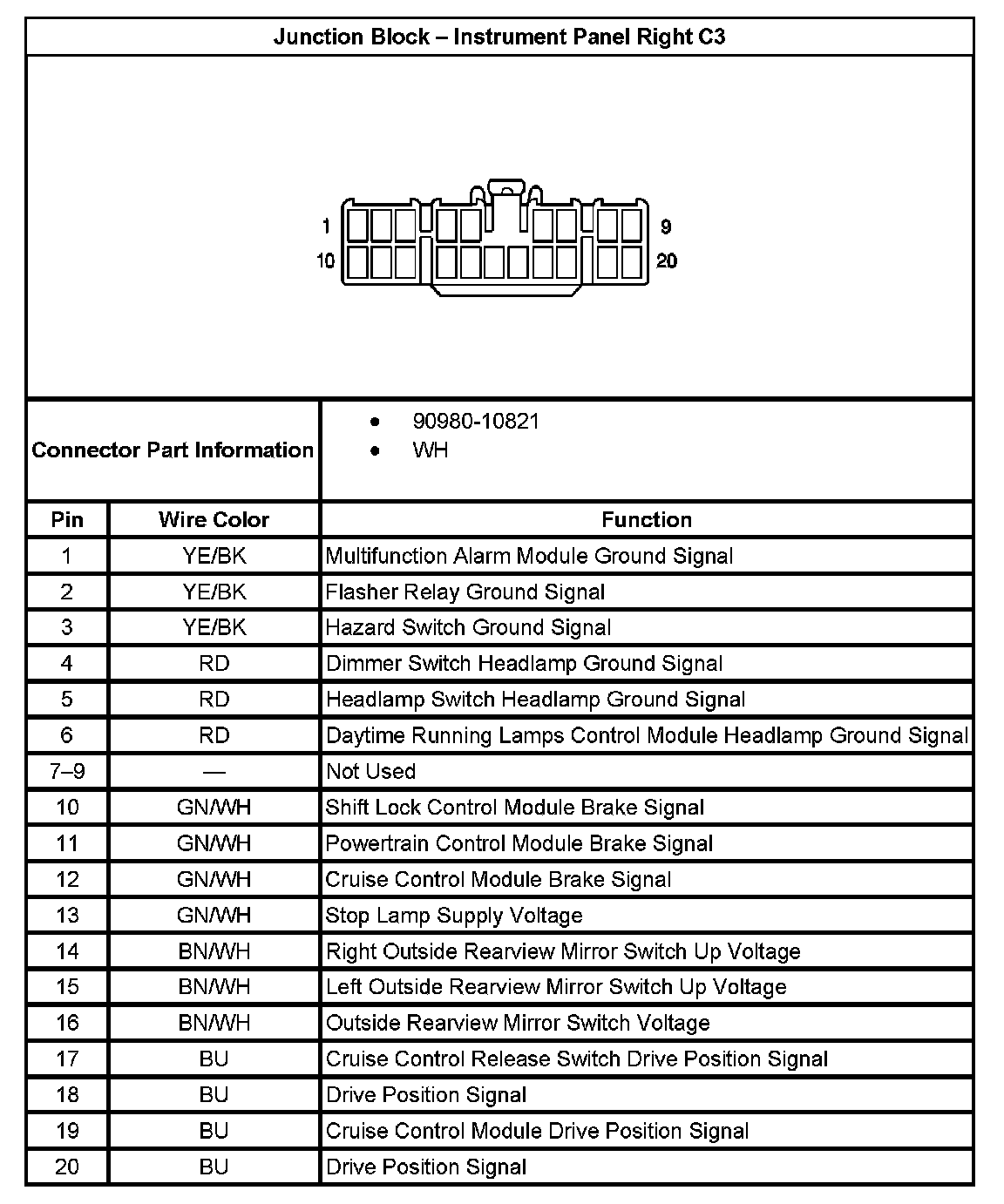

Junction Block - Instrument Panel Right C3:
