Vibe FWD L4-1.8L VIN 8
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
Power Window Switch

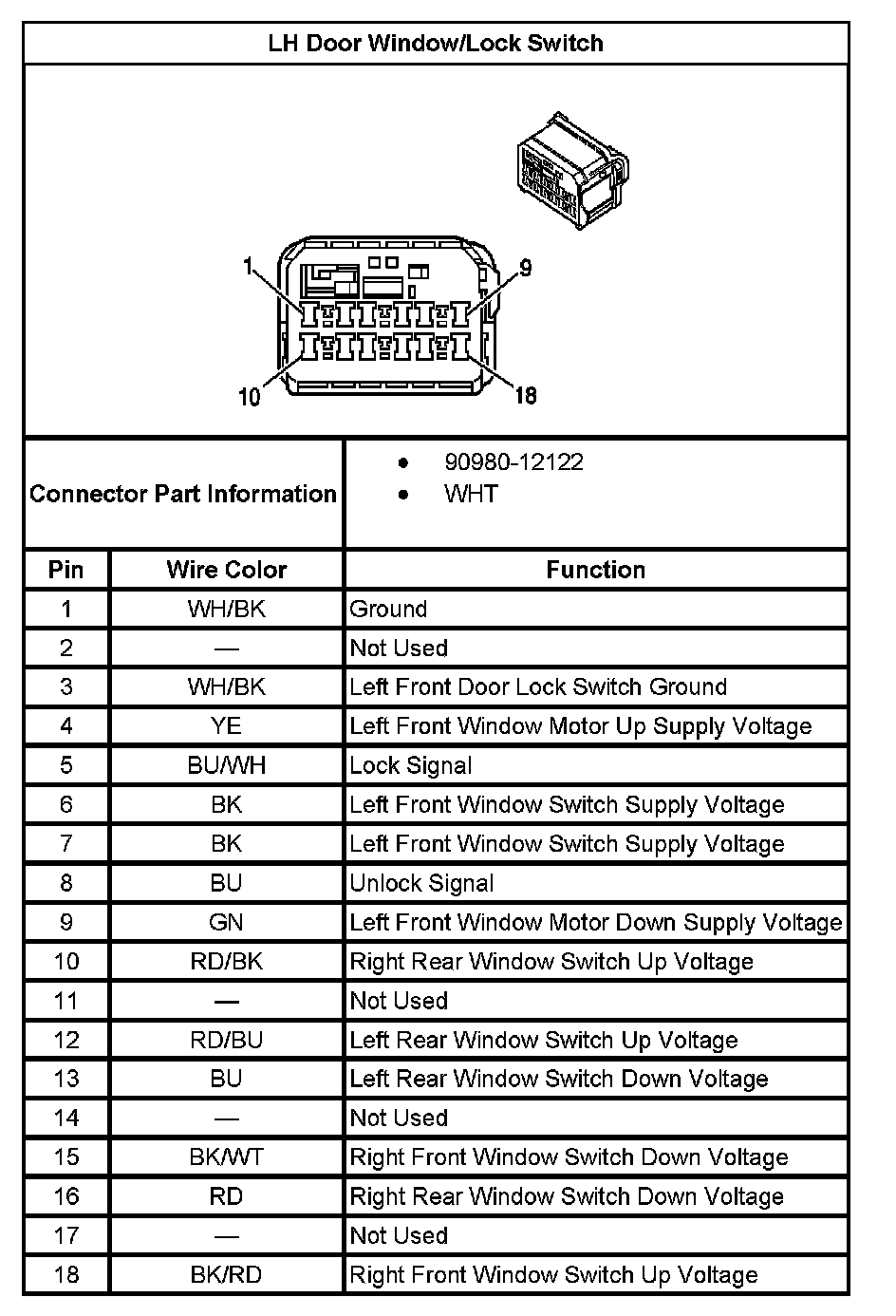

LH Door Window/Lock Switch:

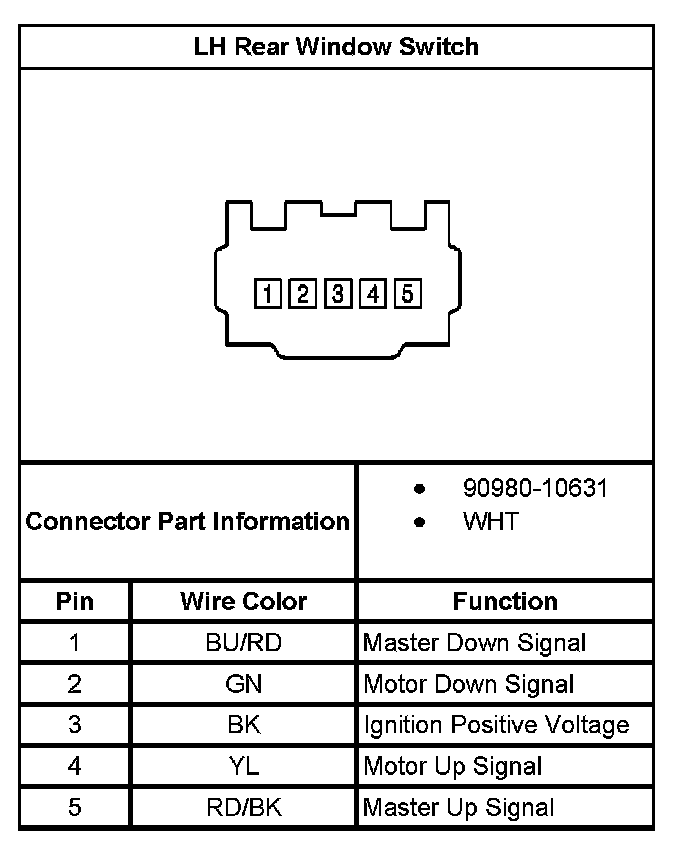

LH Rear Window Switch:

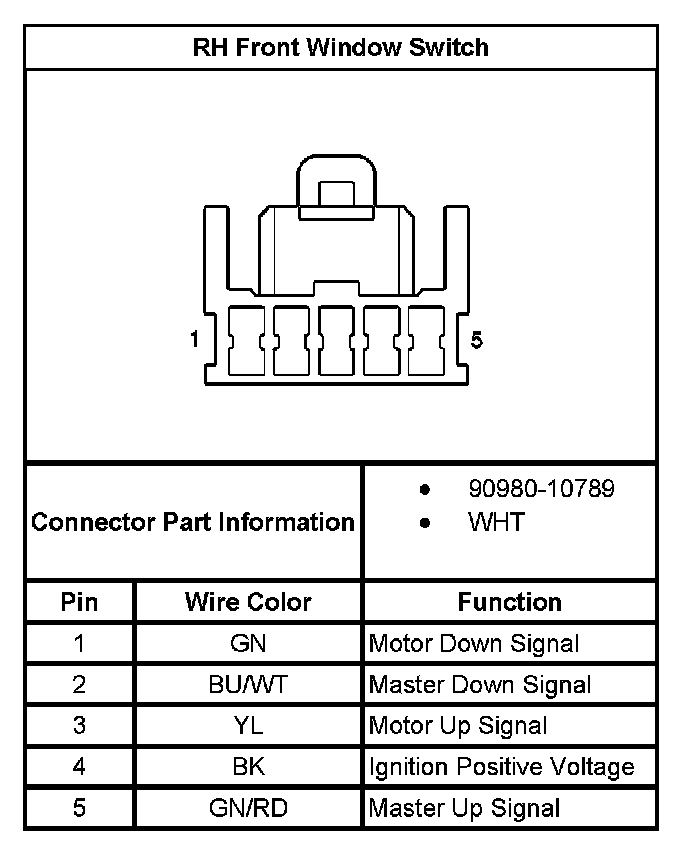

RH Front Window Switch:

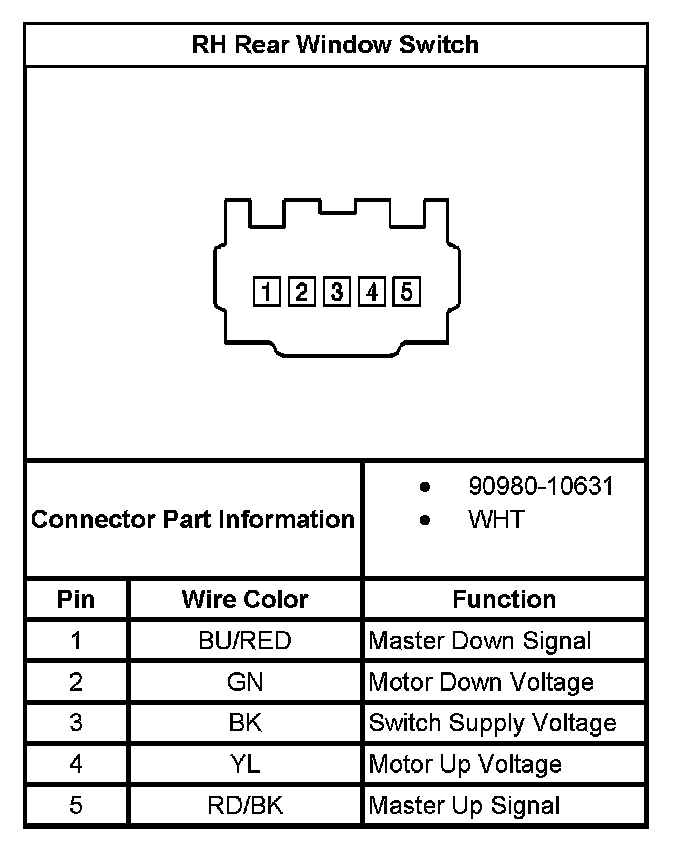

RH Rear Window Switch:
