Vibe FWD L4-1.8L VIN 8
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Distribution Module
Power Distribution Module

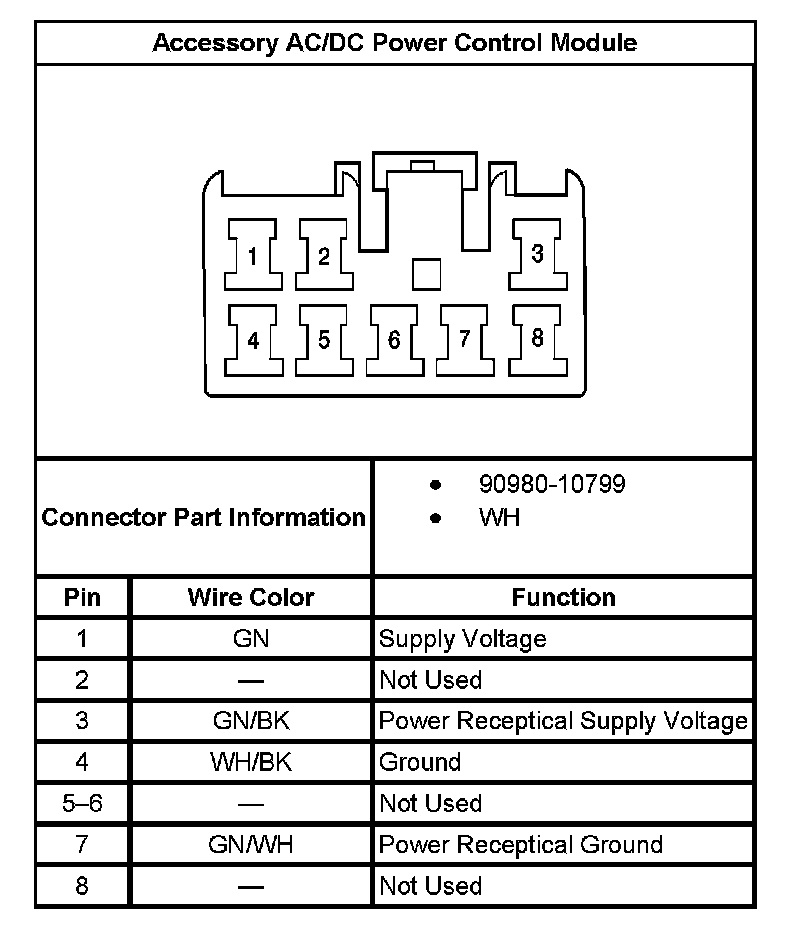

Accessory AC/DC Power Control Module:
