Inflatable Restraint Driver Inflatable Module

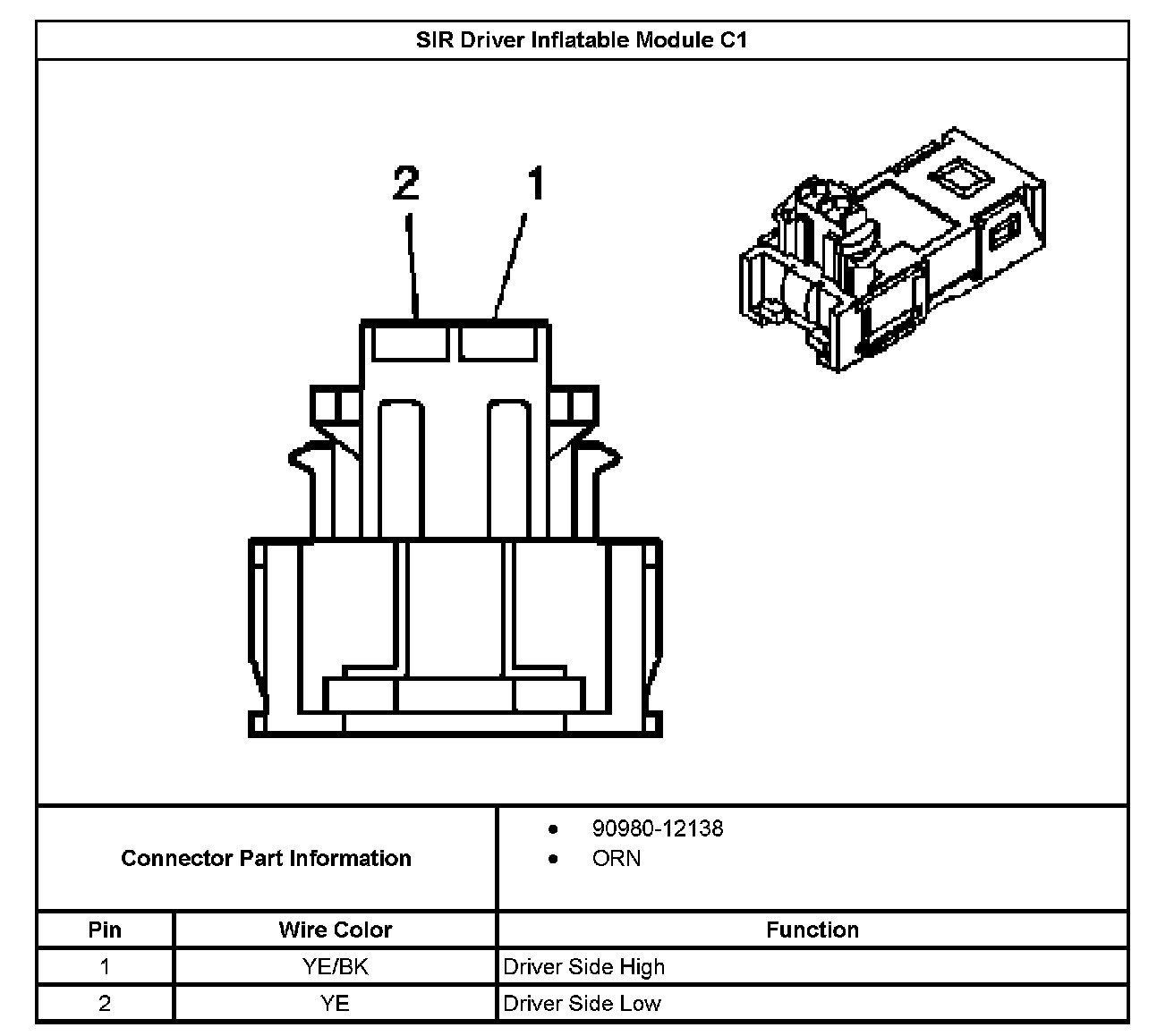

SIR Driver Inflatable Module C1:

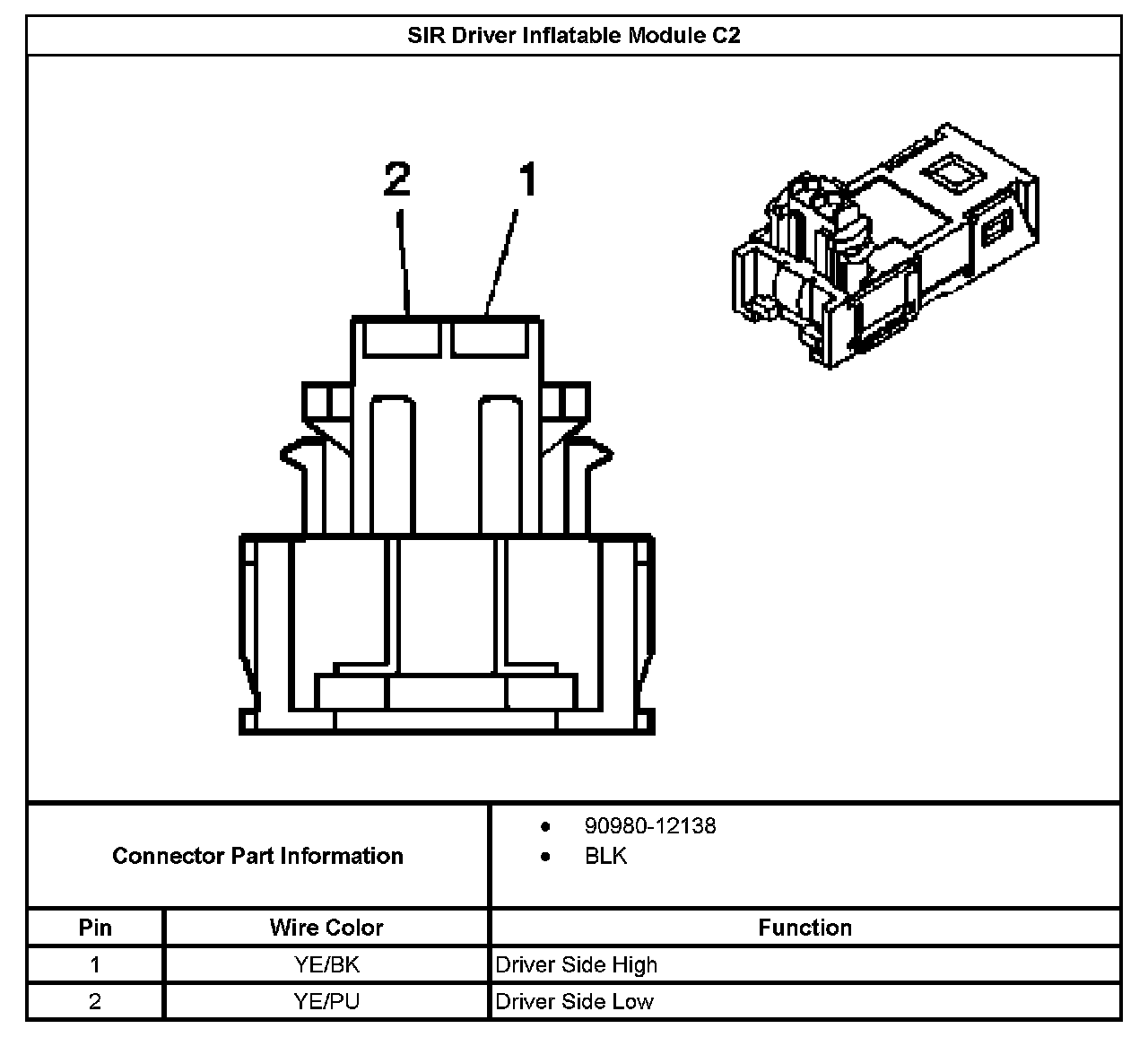

SIR Driver Inflatable Module C2:
