Home >> Pontiac >> 2006 >> Vibe FWD L4-1.8L VIN 8 >> Repair and Diagnosis >> Diagrams >> Components

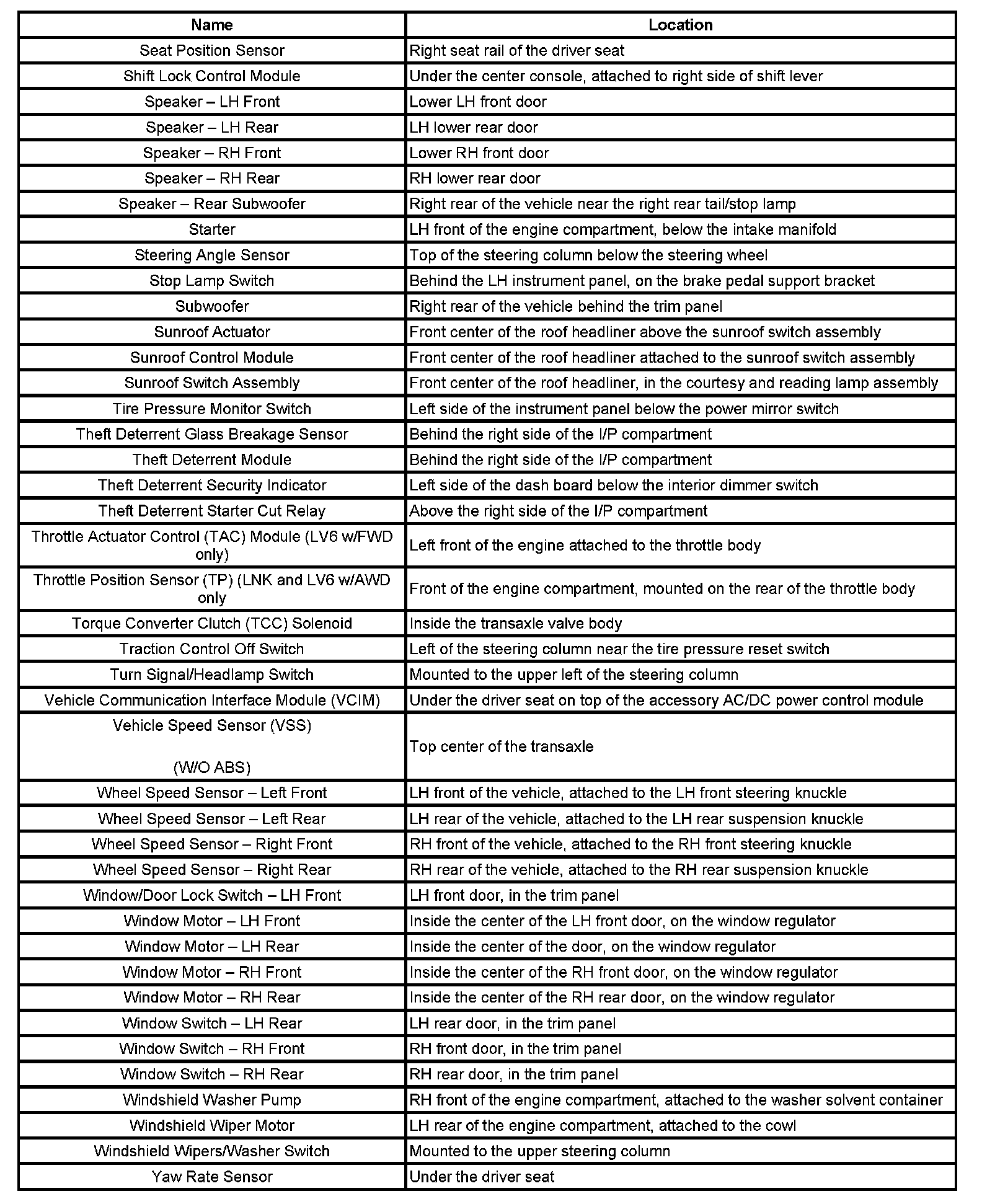

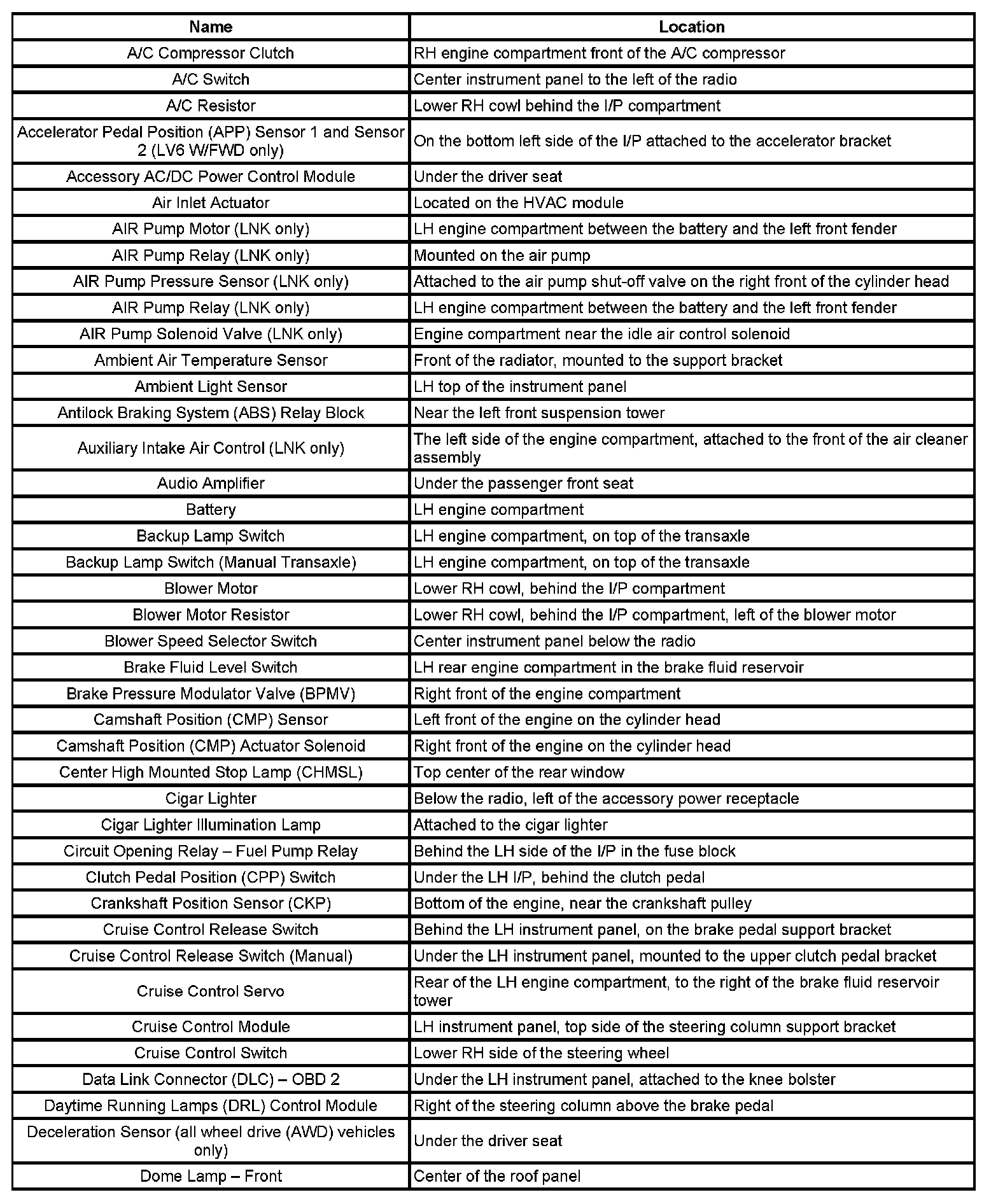

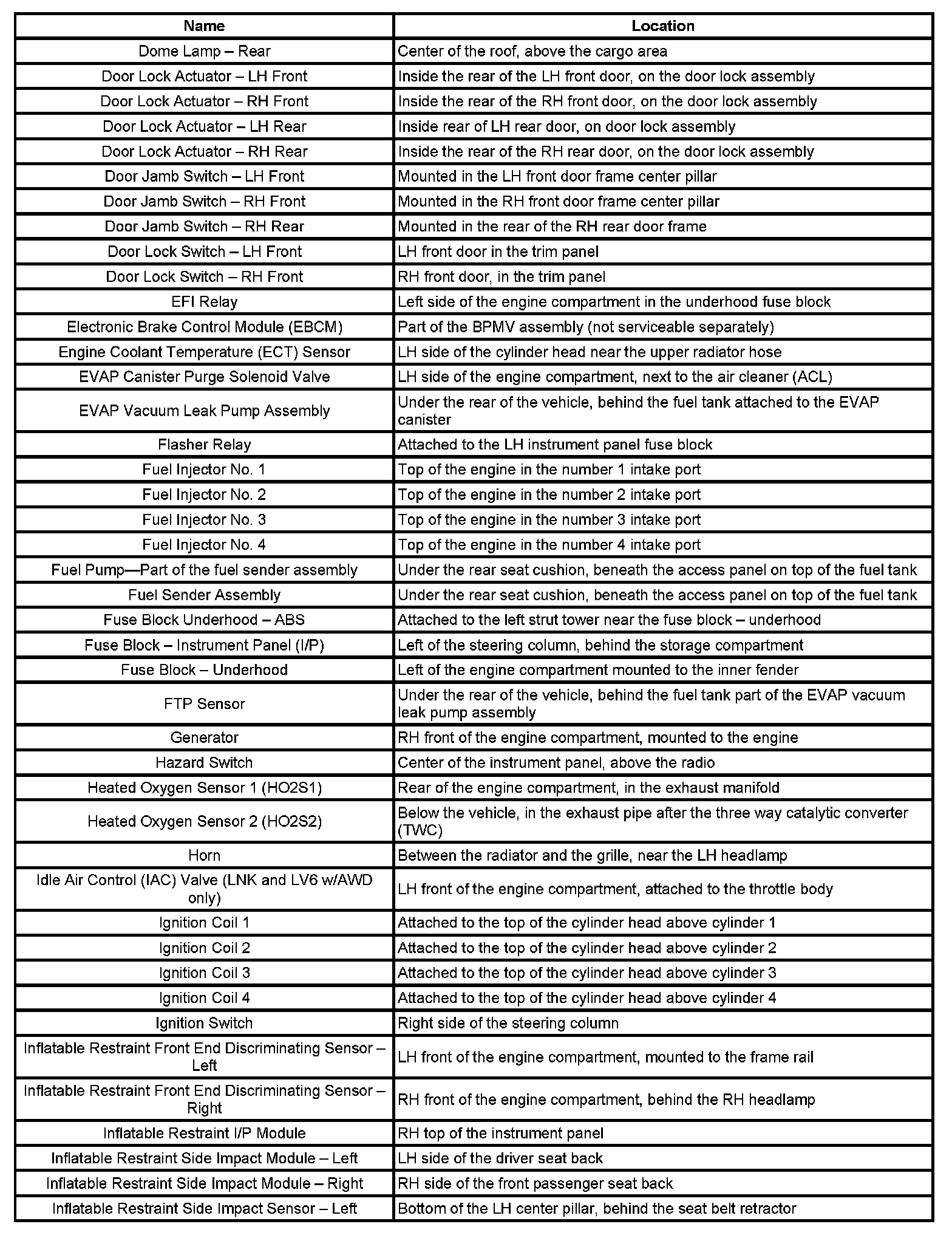

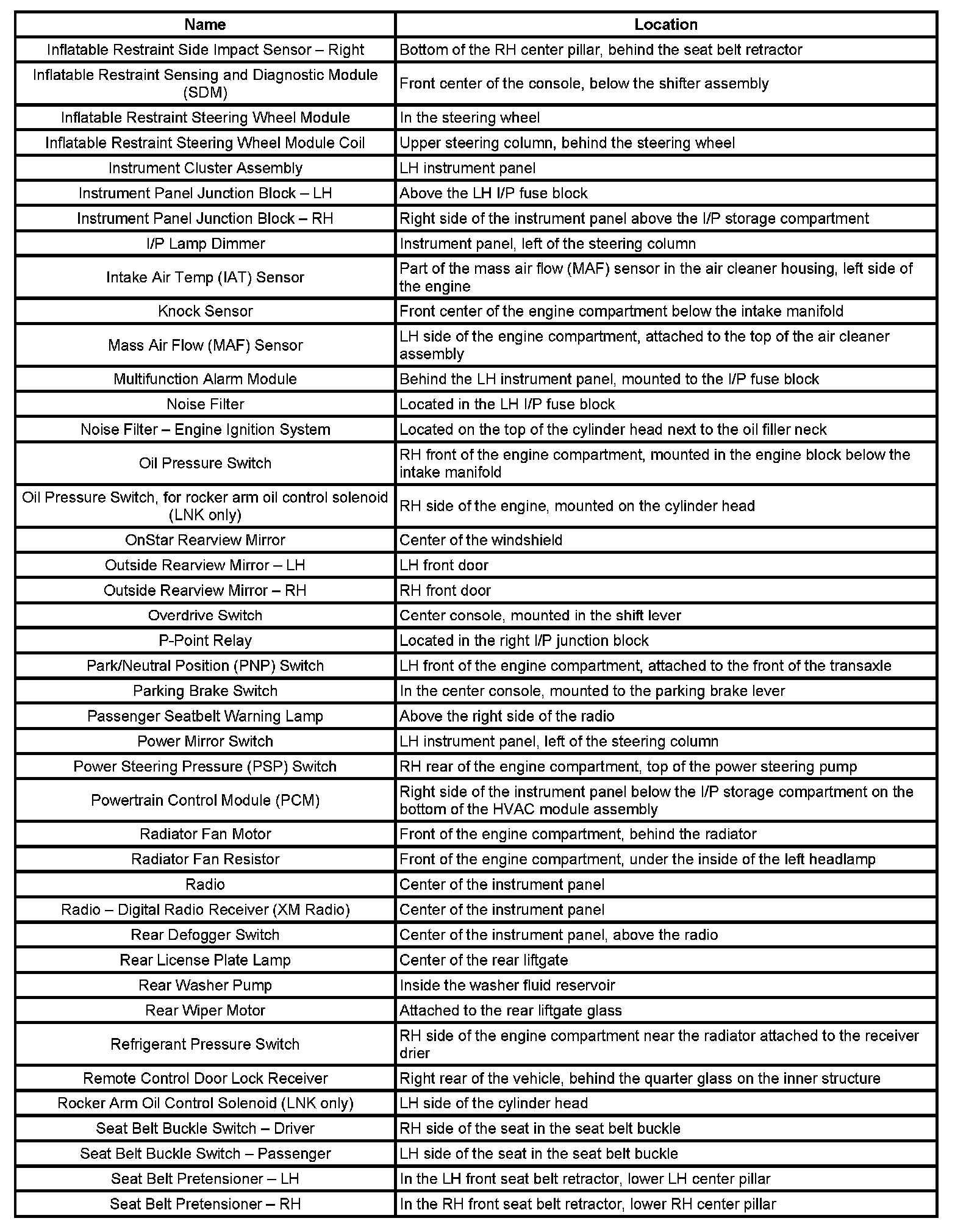

Components

A/C - Do:




Do - In:




In - Se:




Se - Ya:
