Grand Prix V8-5.3L VIN C
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Locations
>>
Engine Views
>>

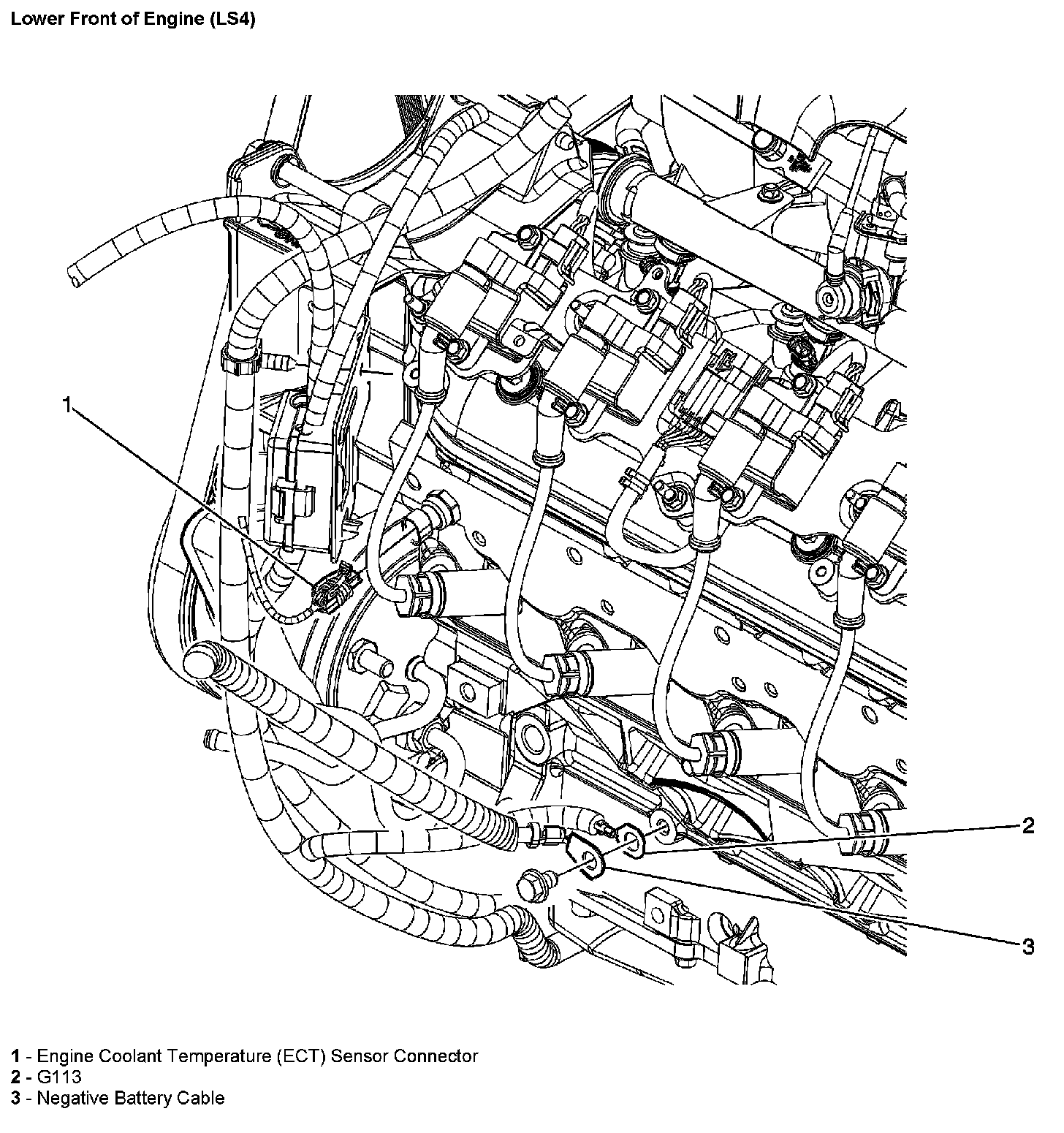

Lower Front of Engine
Lower Front of Engine
Lower Front Of The Engine:
