Home >> Pontiac >> 2006 >> Grand Prix V8-5.3L VIN C >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuse Block >> Fuse Block - I/P C2

Fuse Block - I/P C2

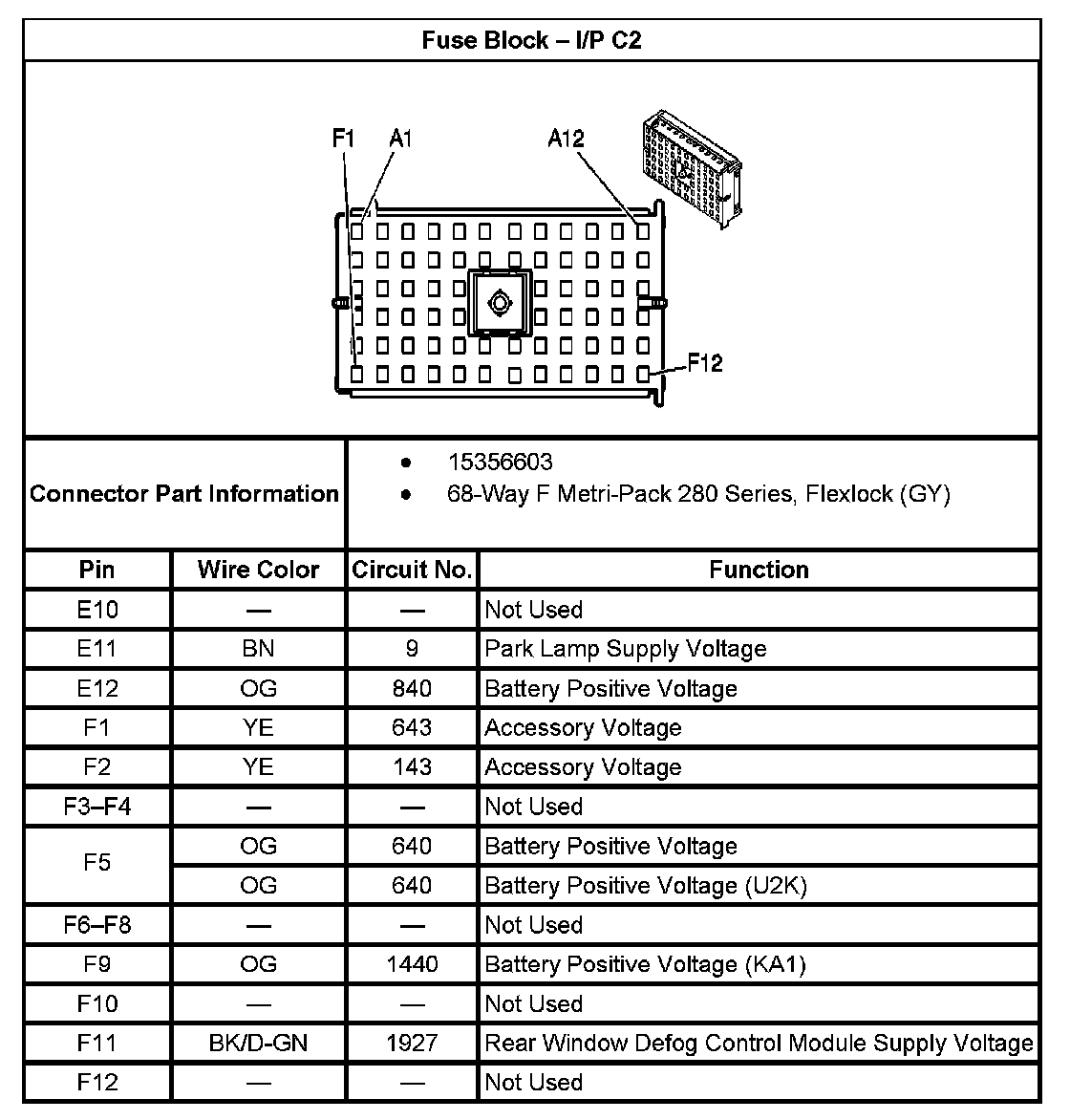

Fuse Block - I/P C2 (Part 1):

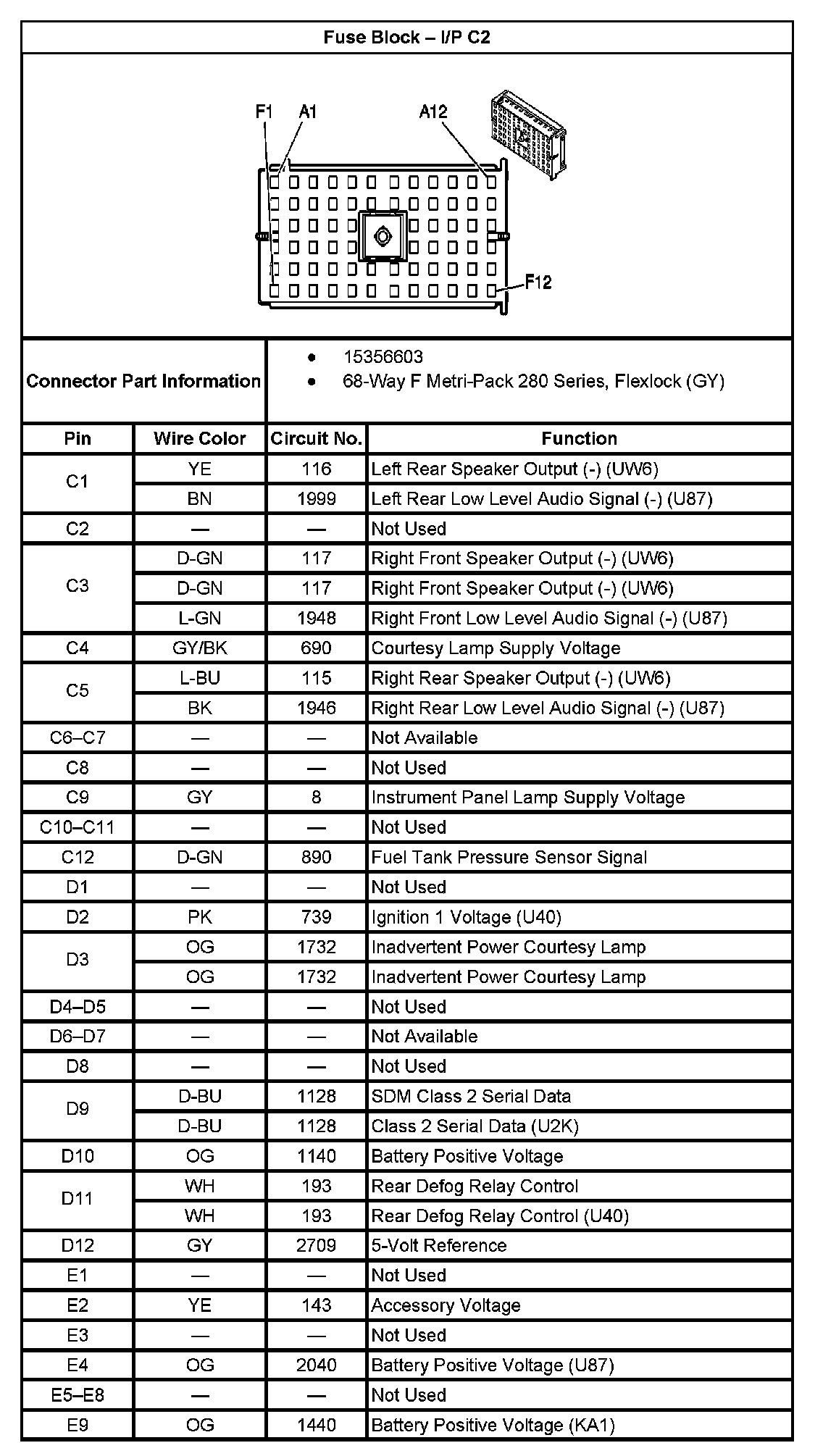

Fuse Block - I/P C2 (Part 2):



Fuse Block - I/P C2 (Part 3):
