Home >> Pontiac >> 2006 >> Grand Prix V8-5.3L VIN C >> Repair and Diagnosis >> Diagrams >> Components

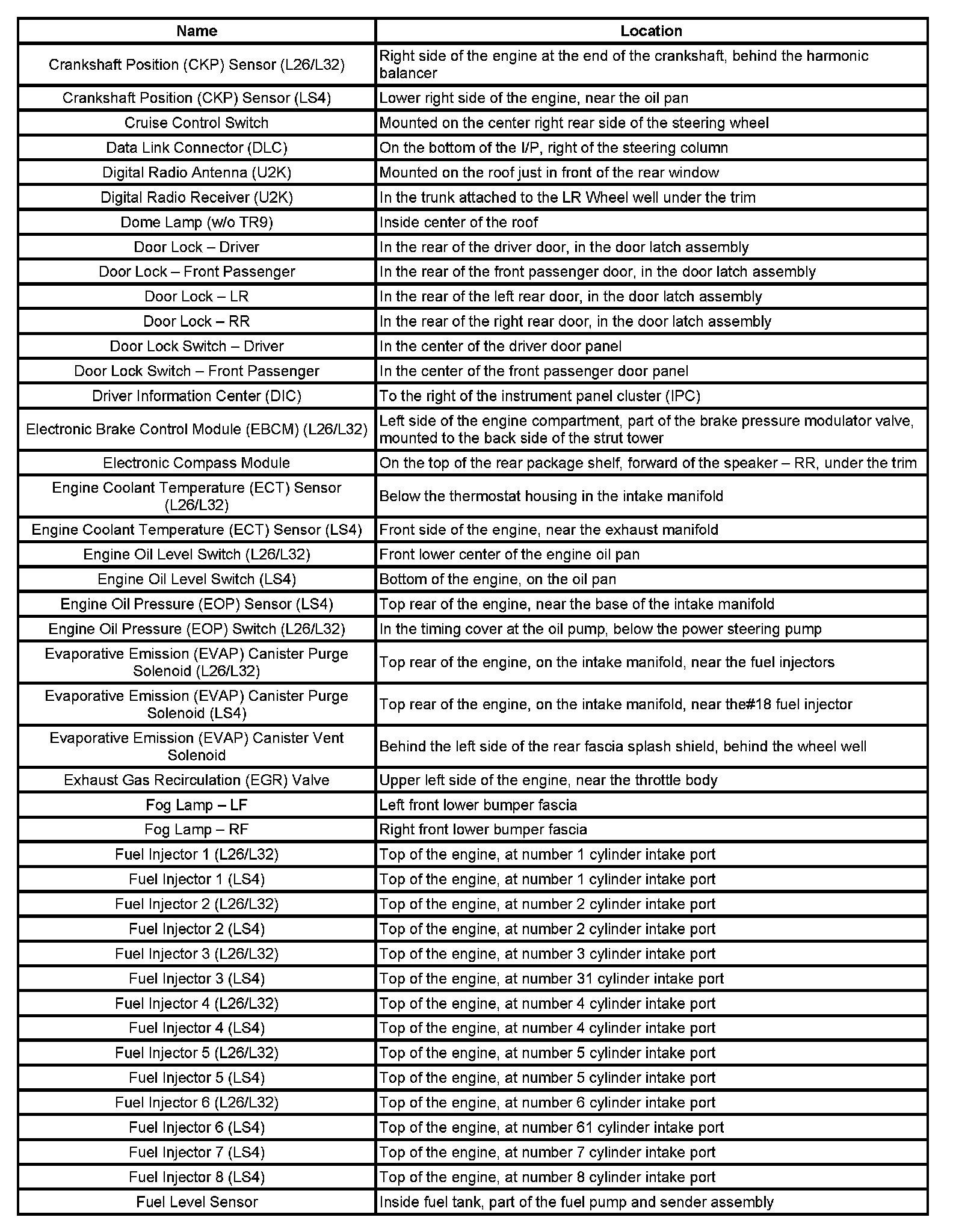

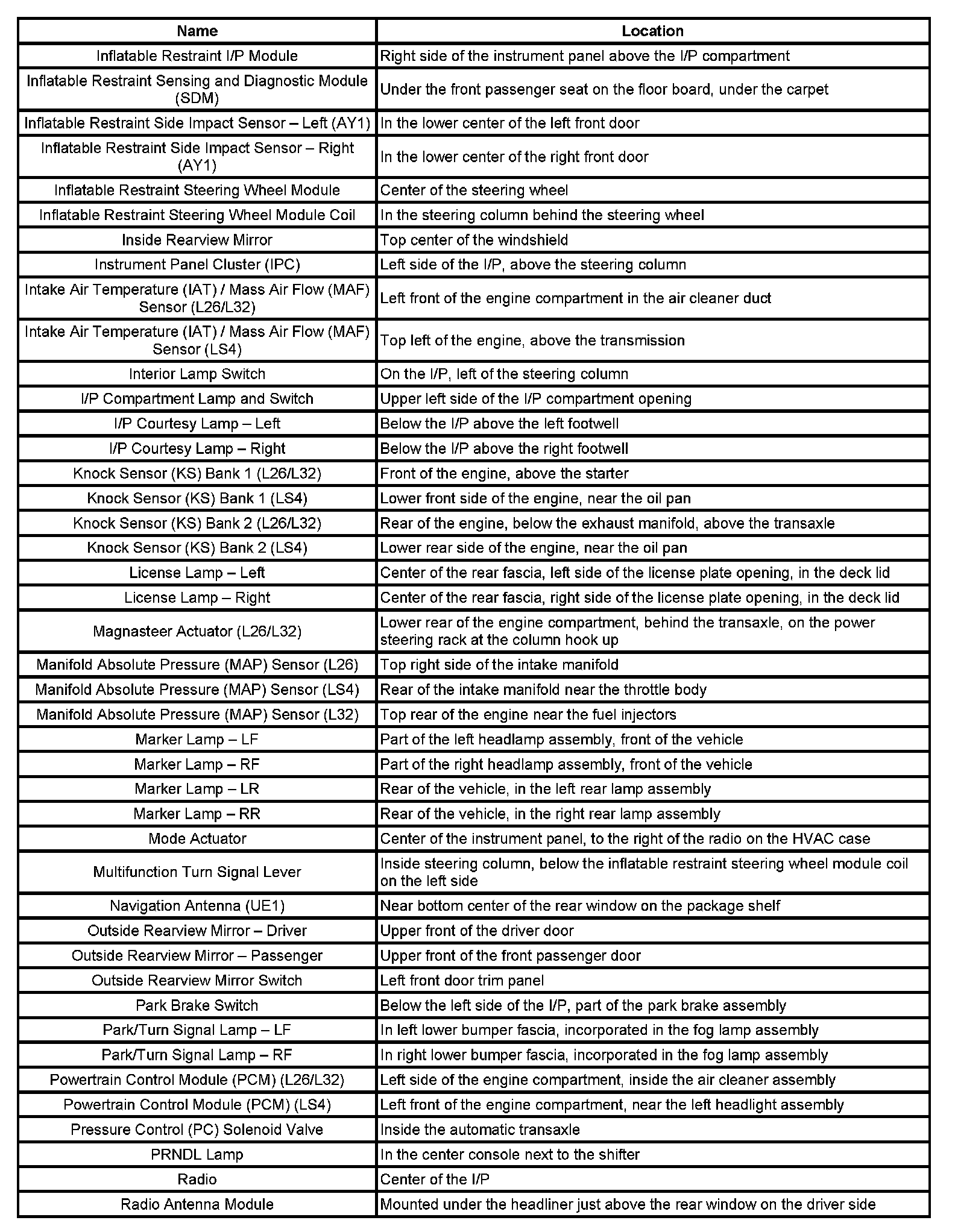

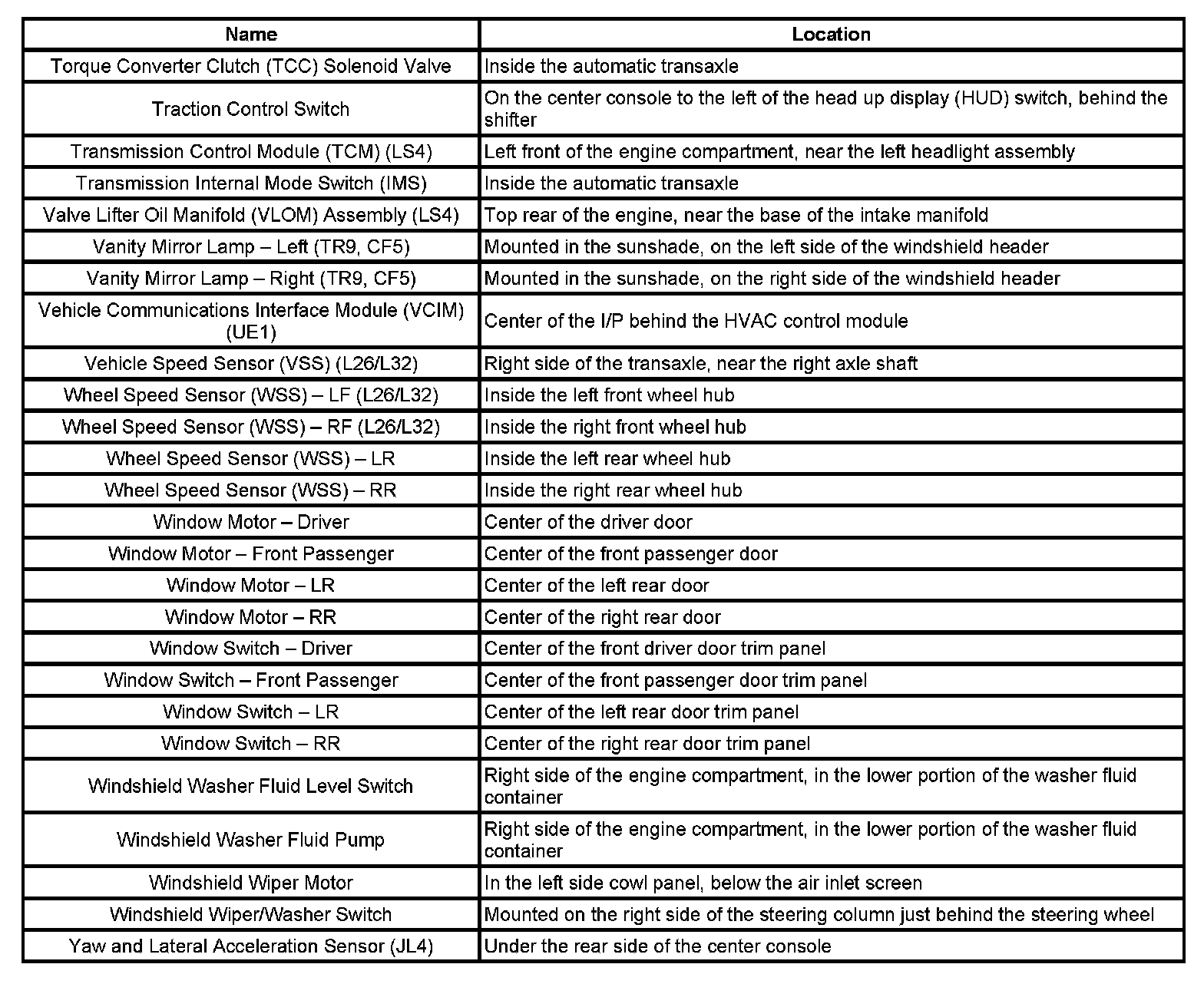

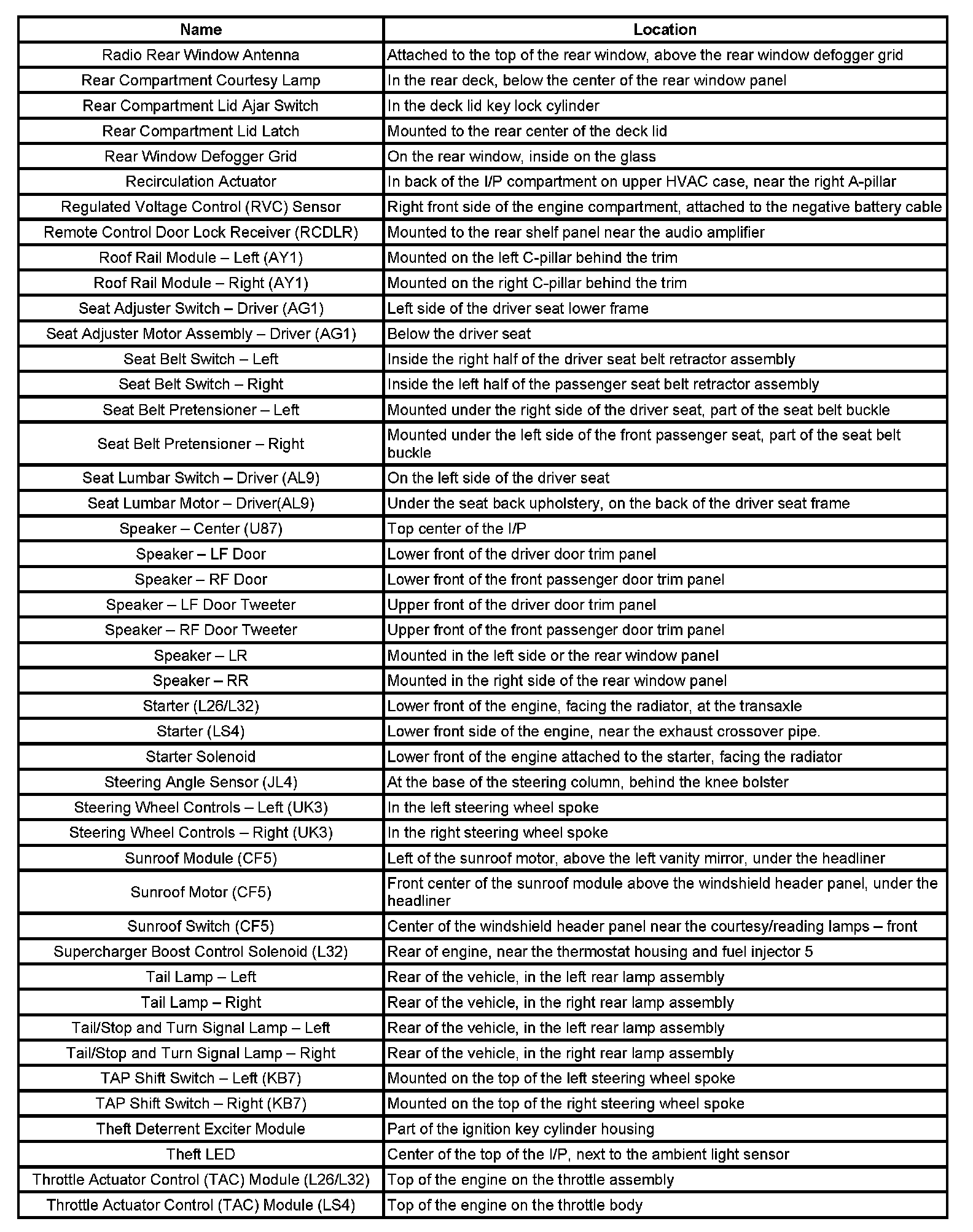

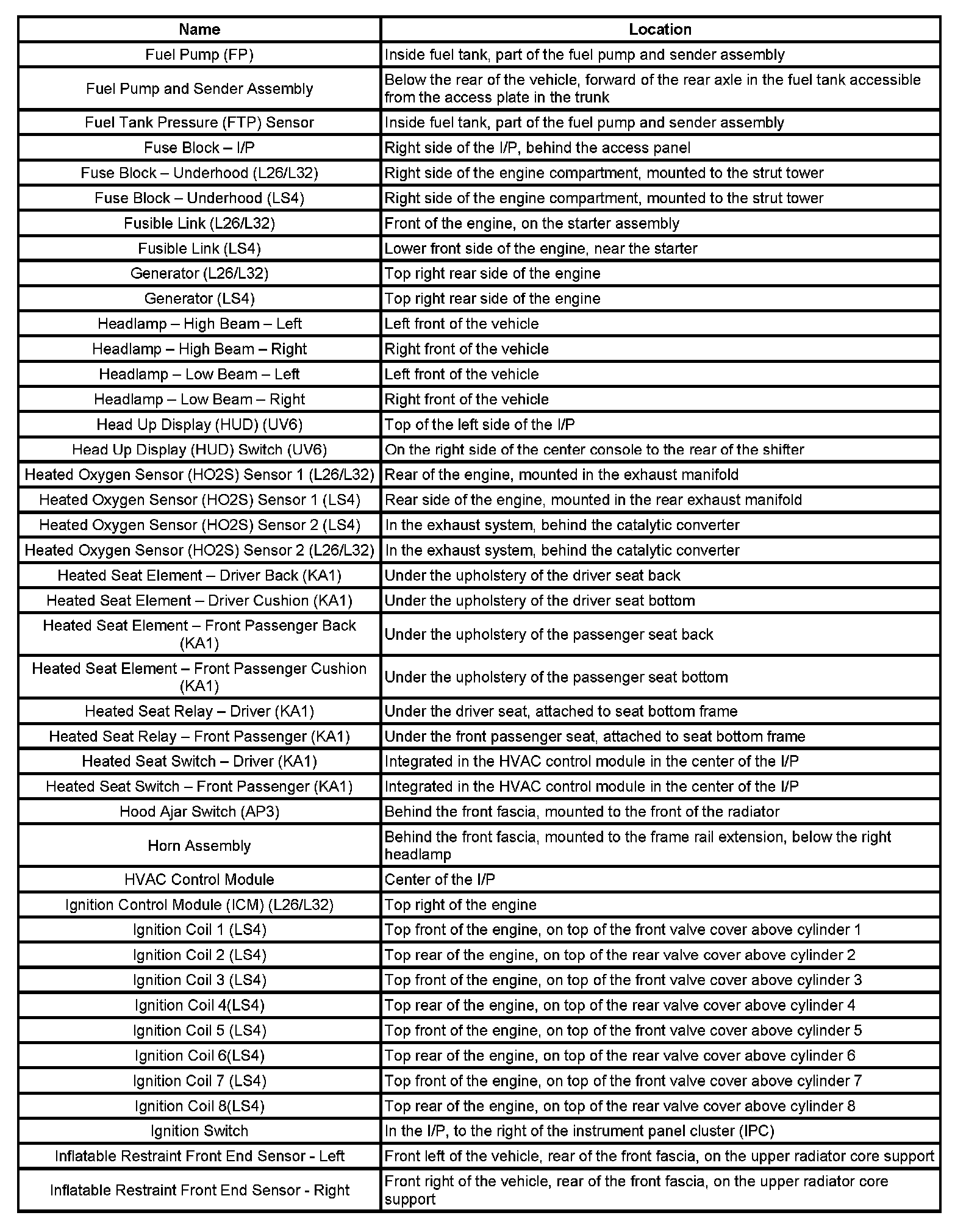

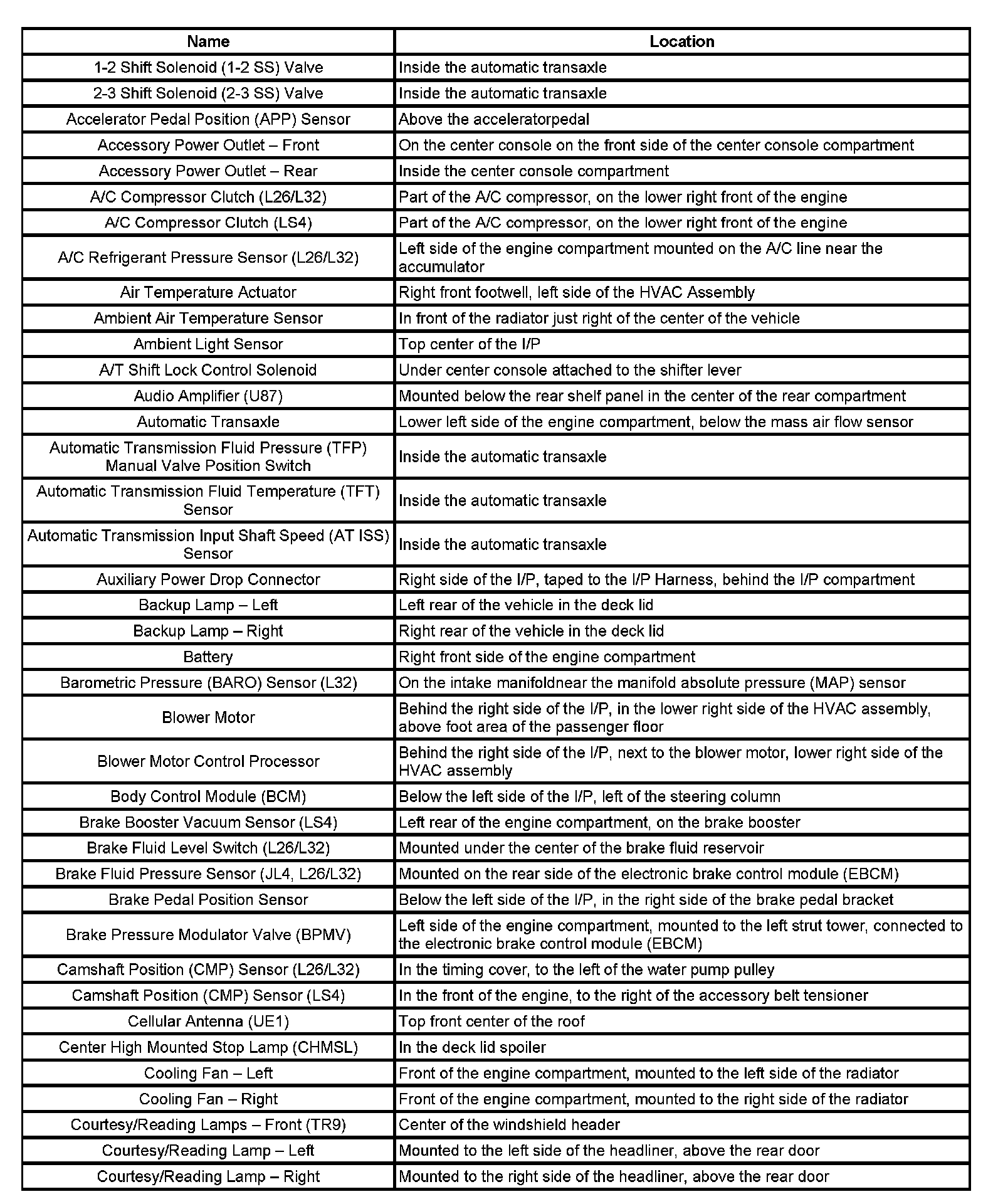

Components


1-2 Sh - Co:




Cr - Fu:




Fu - In:




In - Ra:




Ra - Th:




To - Ya:
