G6 V6-3.9L VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
>>
Window Switch - Driver C1
Window Switch - Driver C1

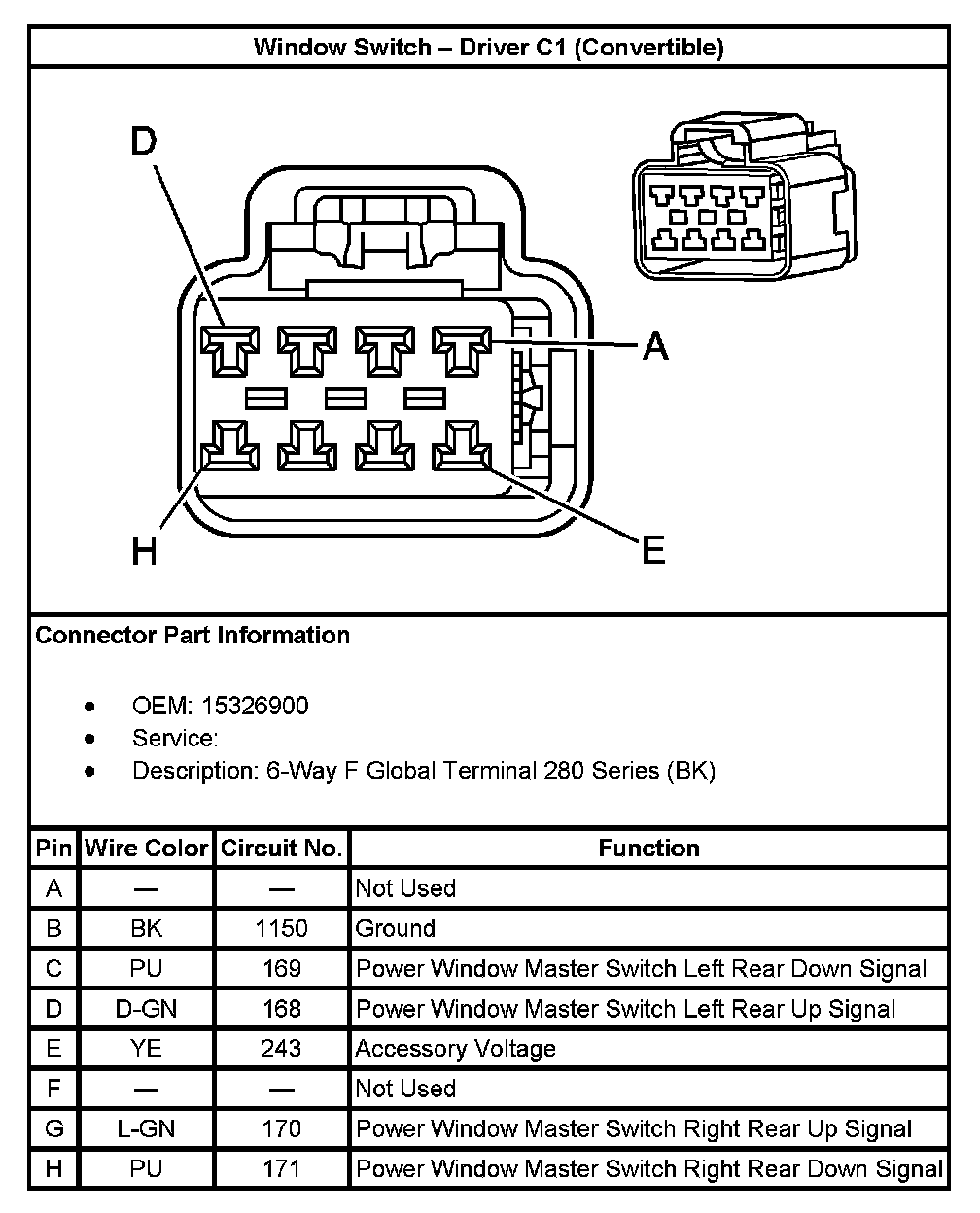

Window Switch - Driver C1 (Convertible):

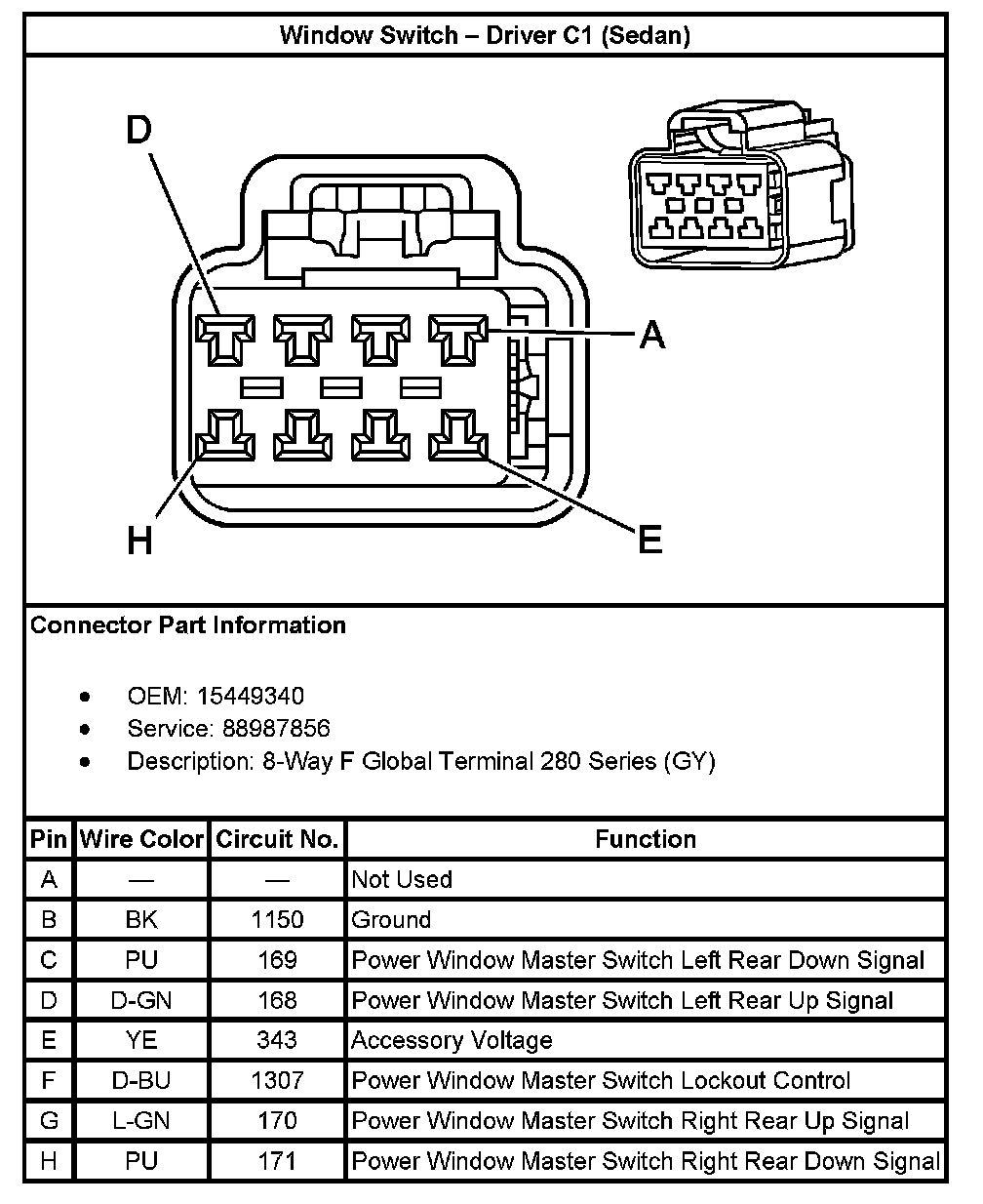

Window Switch - Driver C1 (Sedan):
