Rear Fuse Block

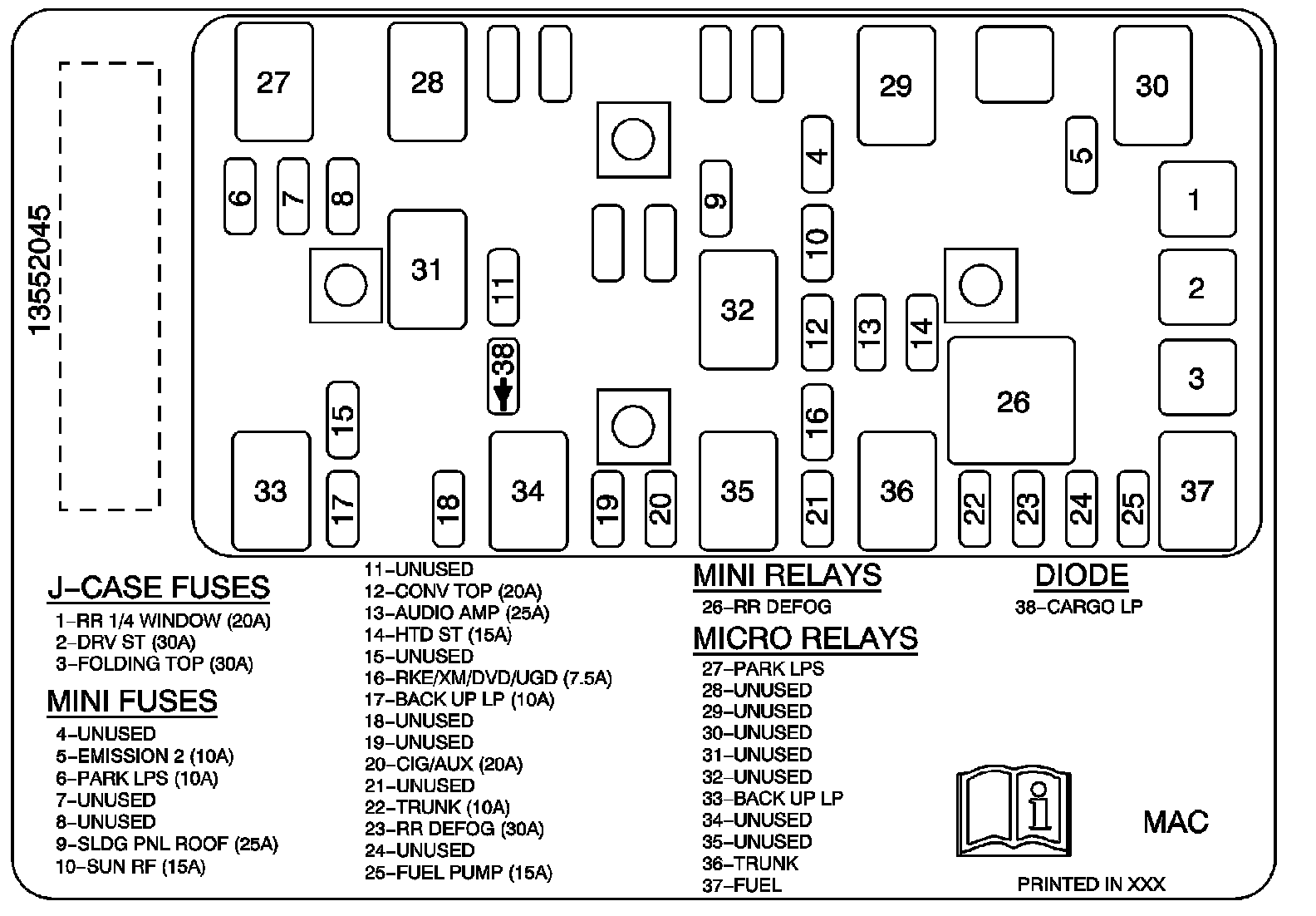

Fuse Block - Rear Label:

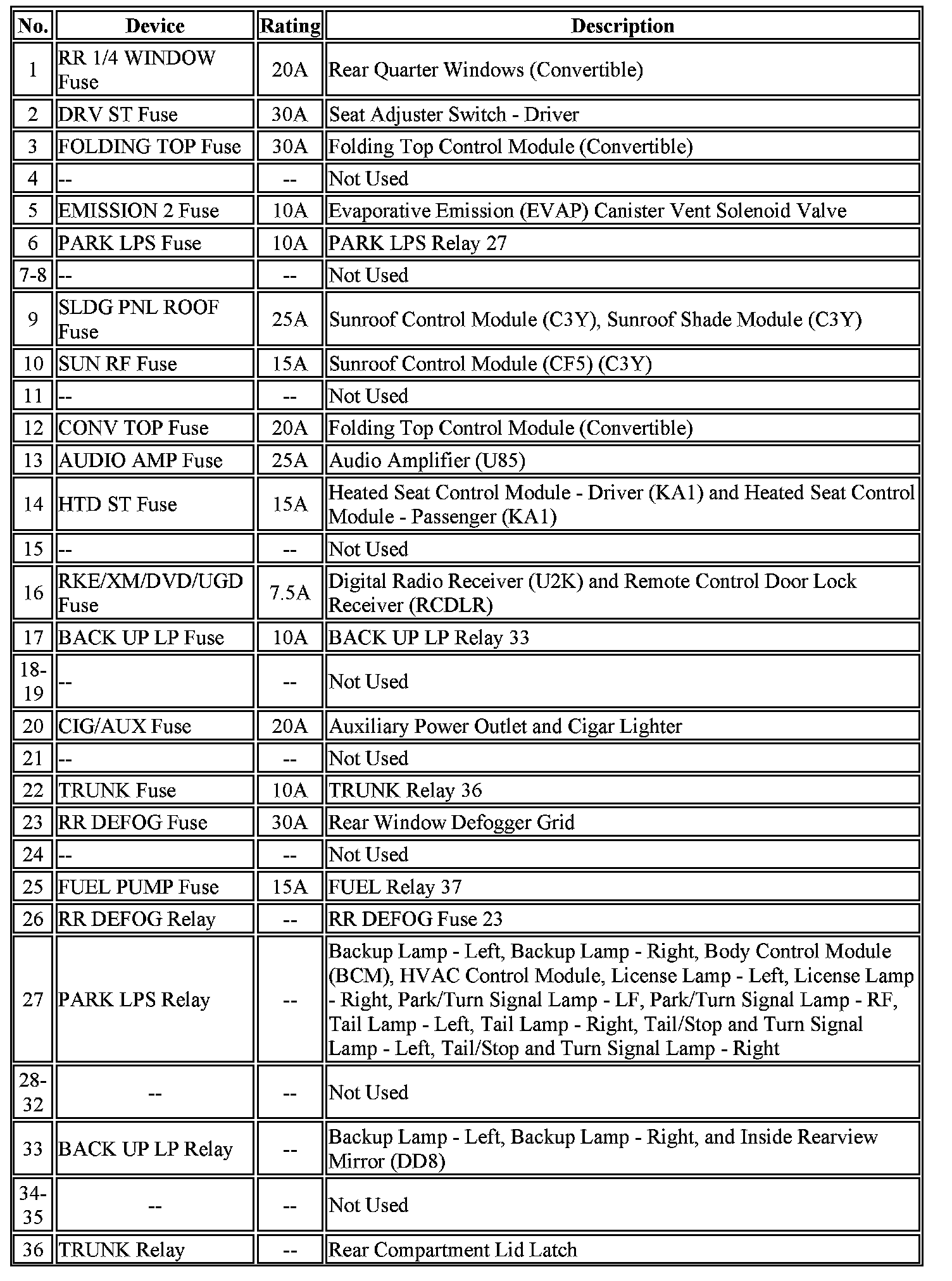

Fuse Block - Rear Label Usage Part 1 Of 2:





Fuse Block - Rear Label Usage Part 2 Of 2:

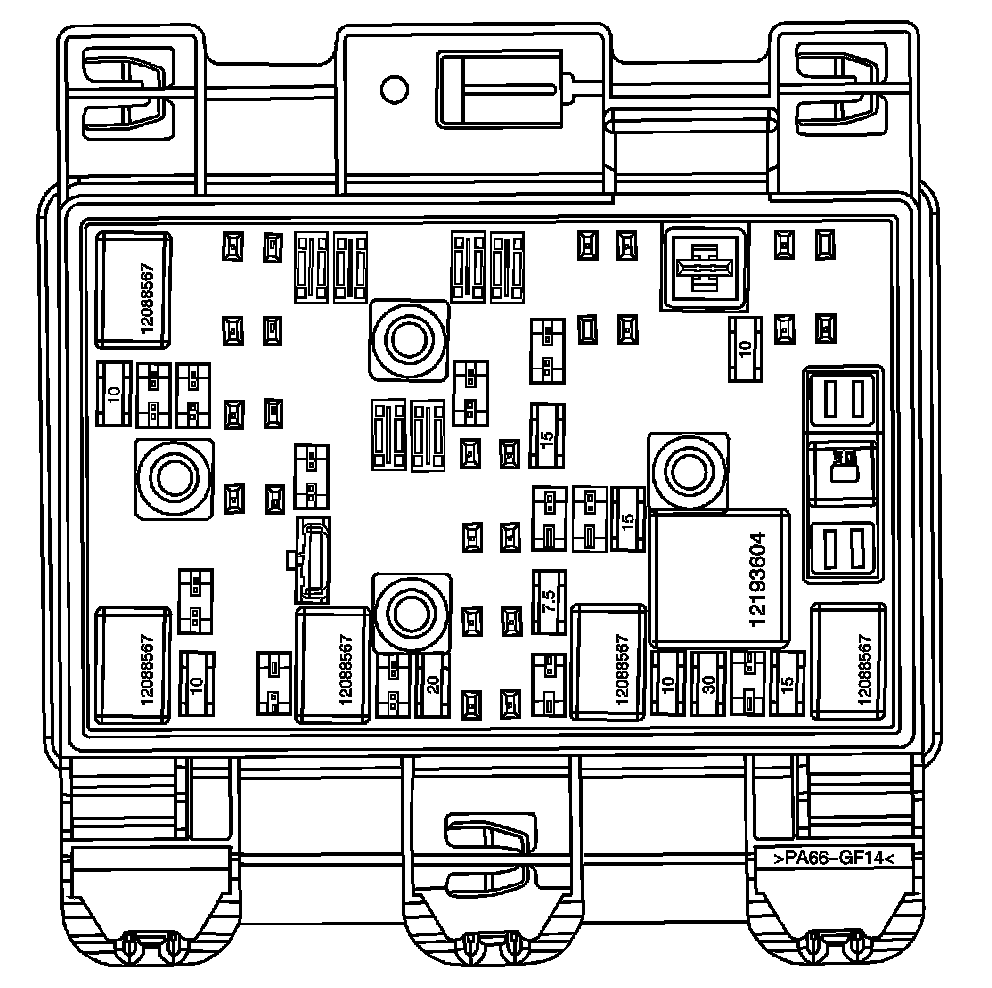

Fuse Block - Rear Top View:

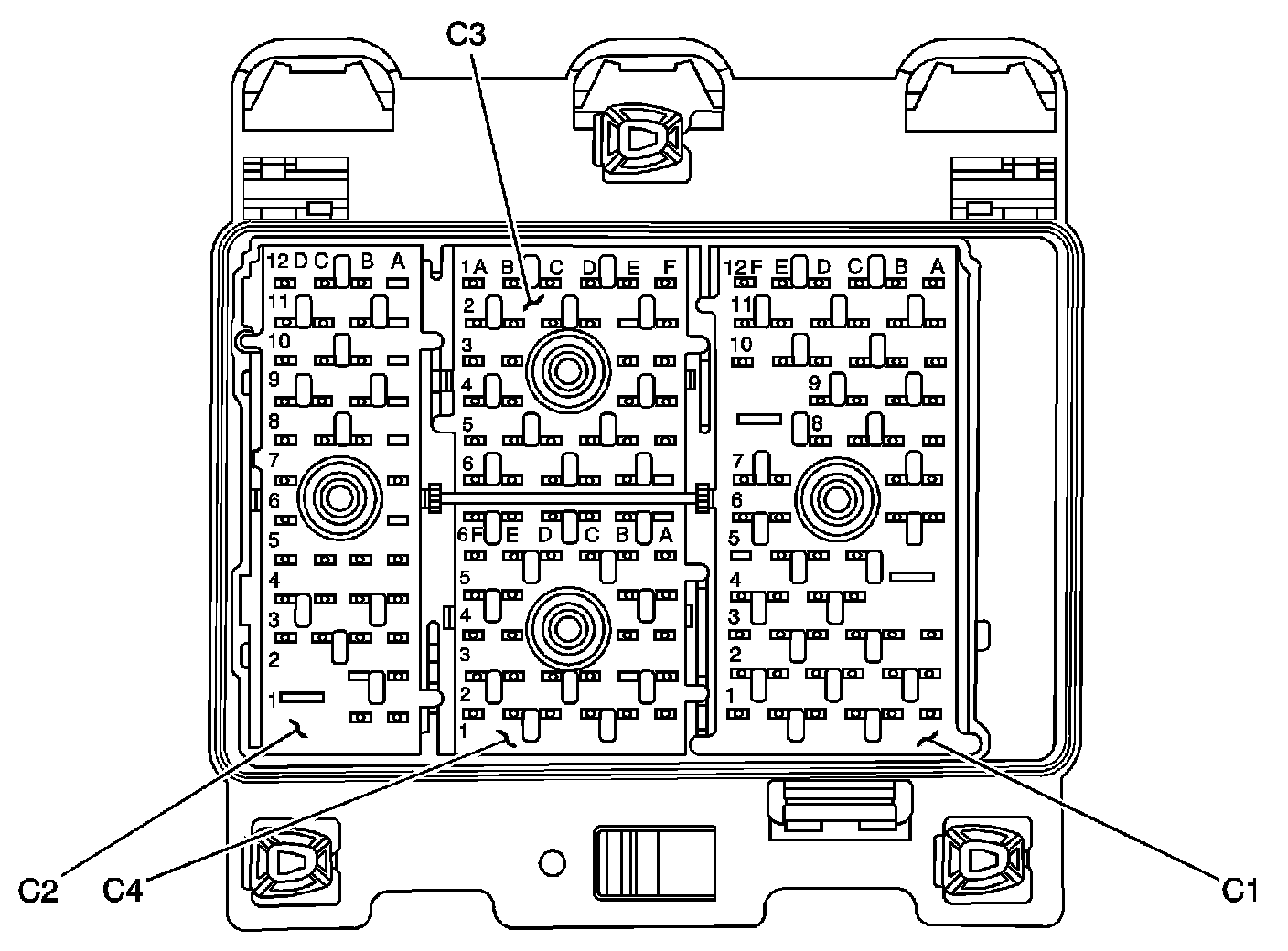

Fuse Block - Rear Bottom View:
