FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Pontiac
>>
2005
>>
Grand Prix V6-3.8L SC VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Amplifier, Sound System
Amplifier, Sound System
Audio Amplifier - C1 (With RPO Code U67):

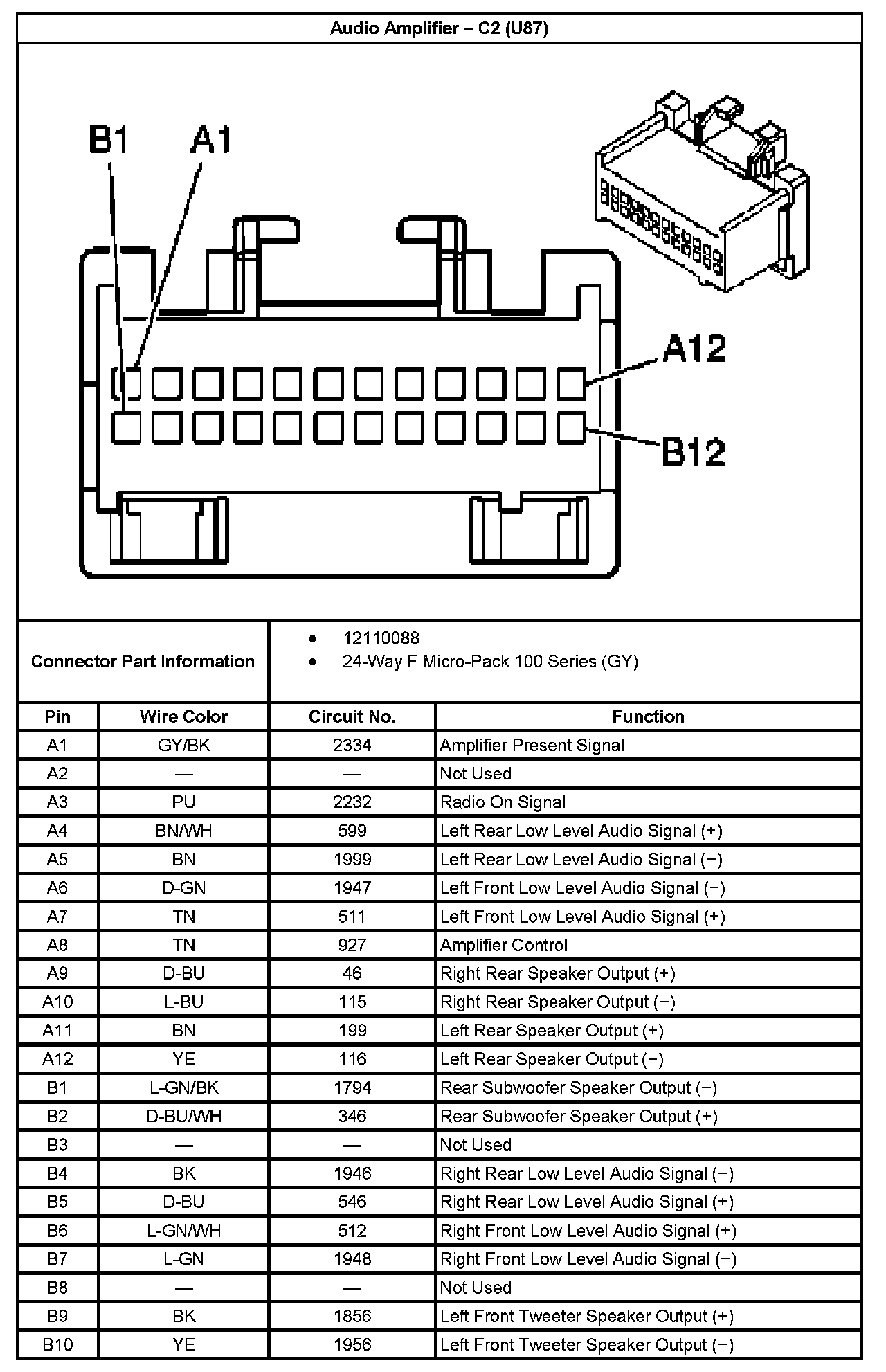

Audio Amplifier - C2 (With RPO Code U87) Part 1:
Audio Amplifier - C2 (With RPO Code U87) Part 2:
