Front Passenger Door Module (FPDM)

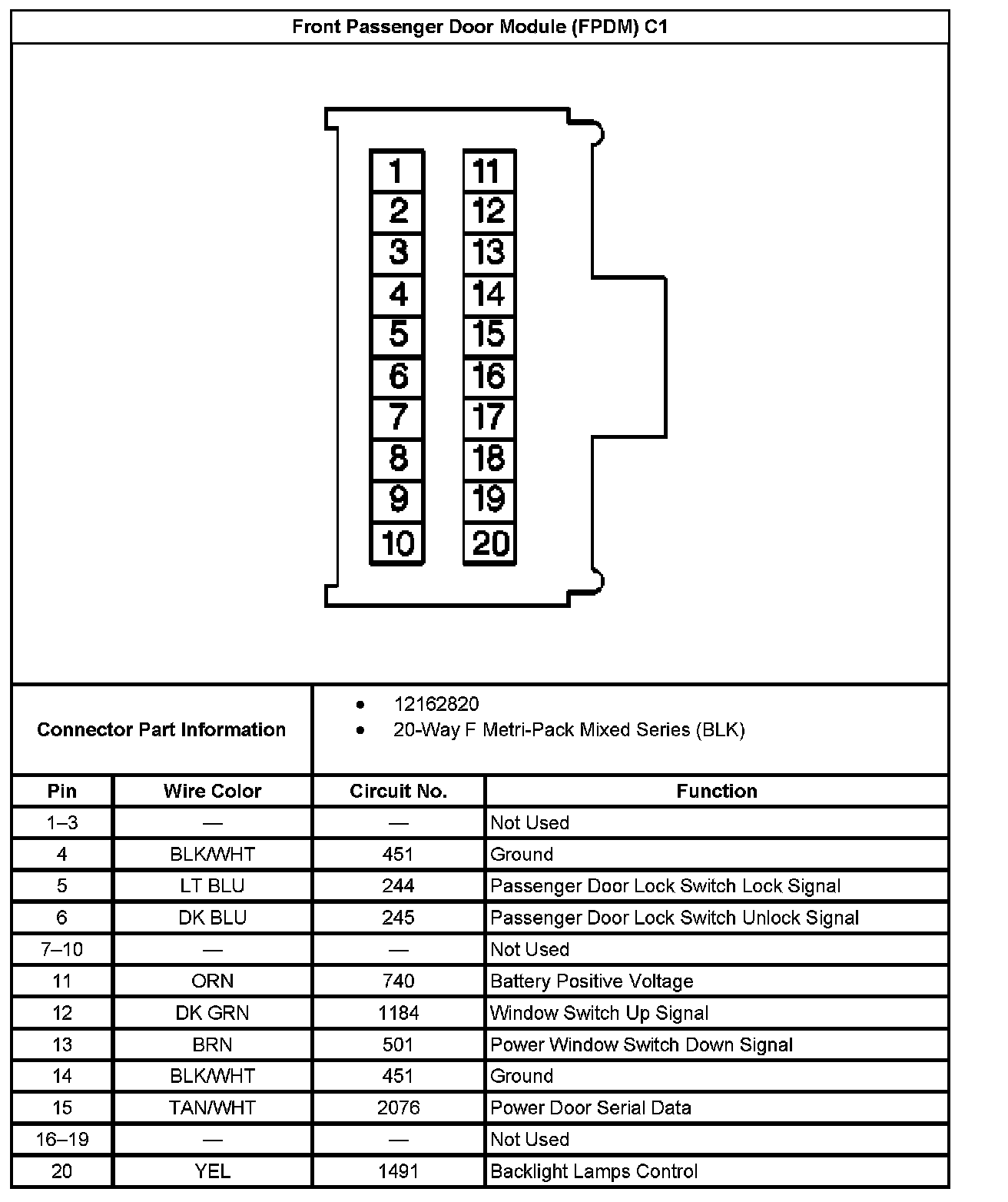

Front Passenger Door Module (FPDM) C1:

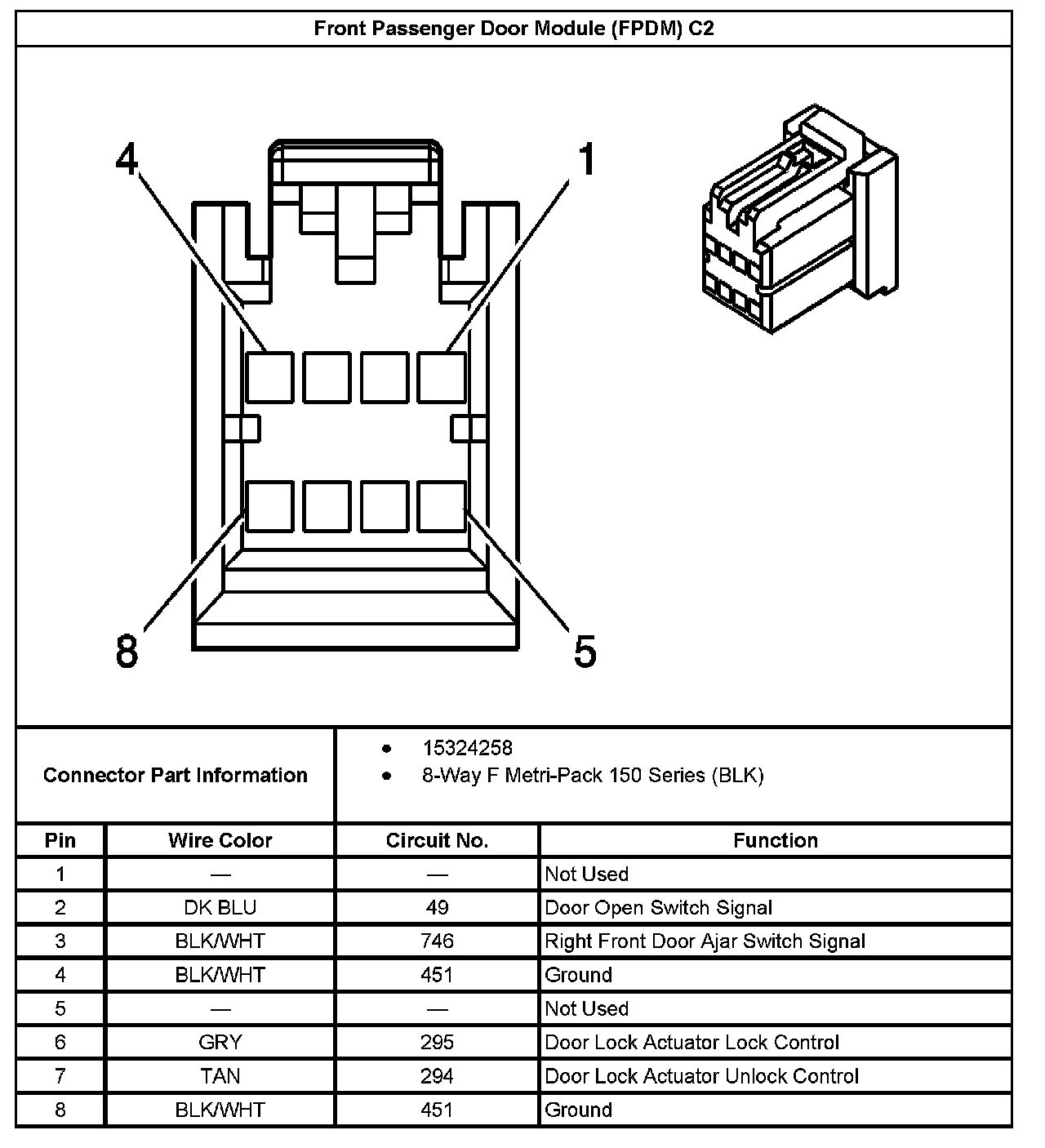

Front Passenger Door Module (FPDM) C2:



Front Passenger Door Module (FPDM) C3:

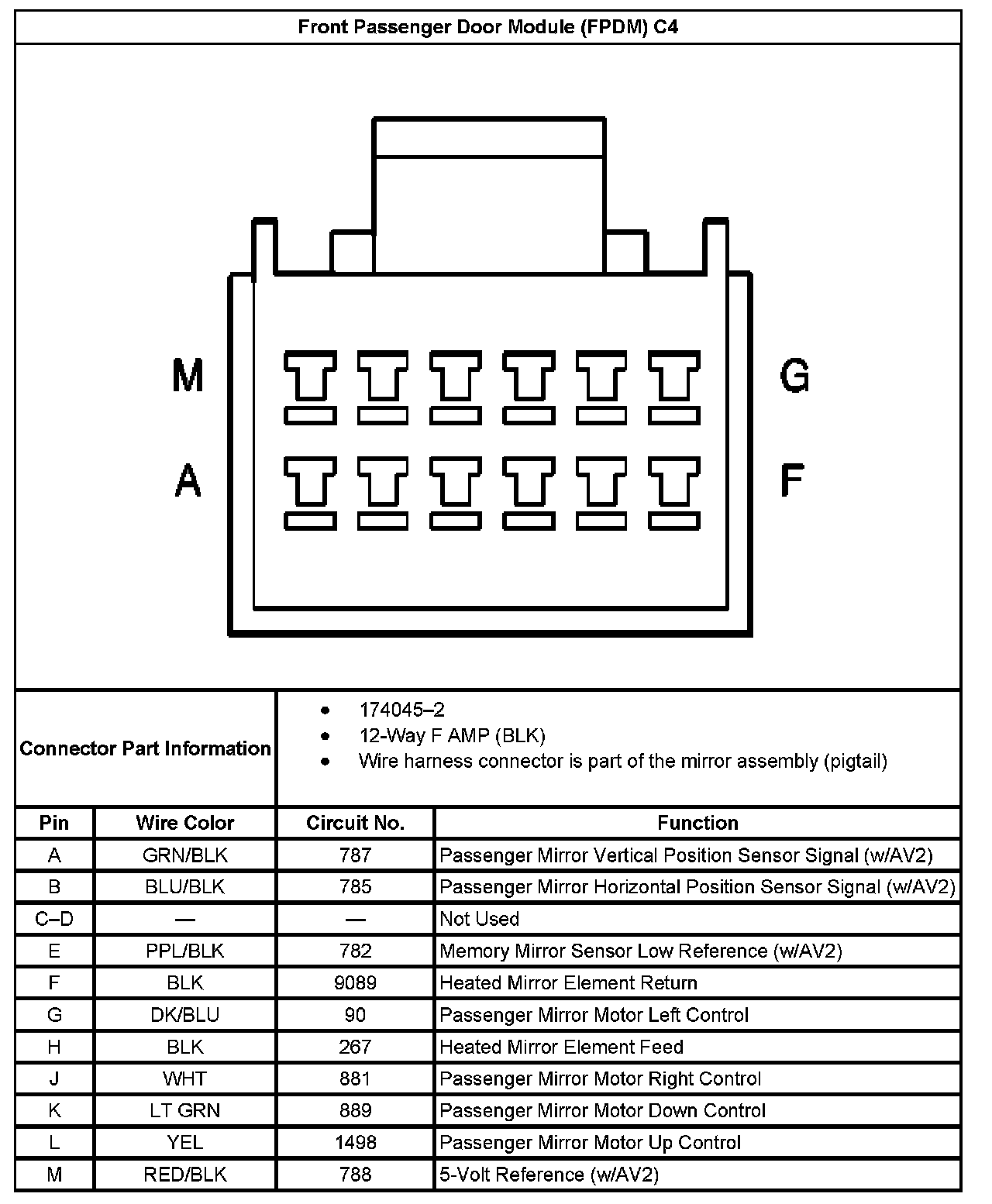

Front Passenger Door Module (FPDM) C4:
