Oil Pressure Sensor: Locations

Locations View:

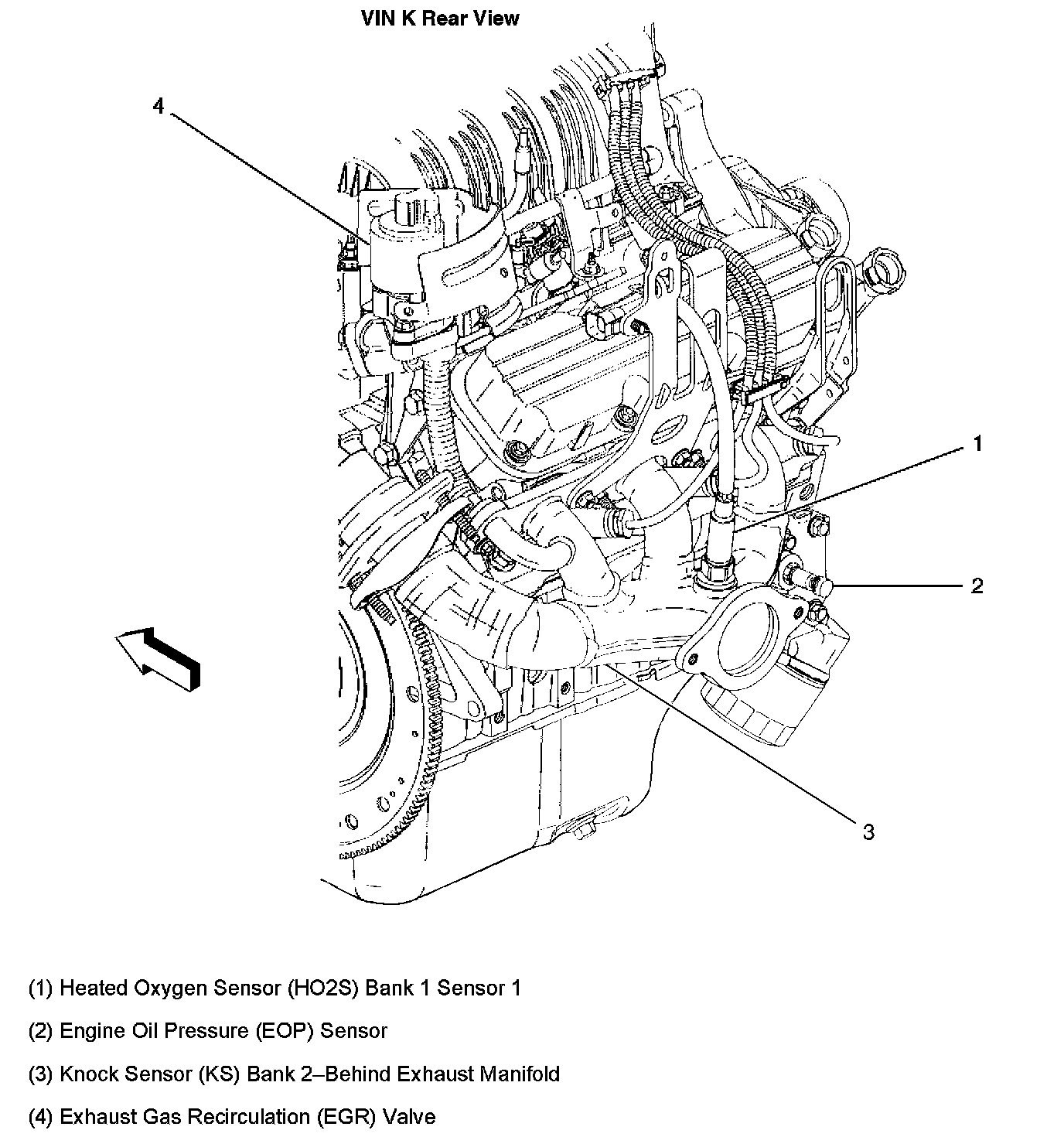

Rear View:



Cam Sensor, Oil Pressure Sensor, VSS Sensor:

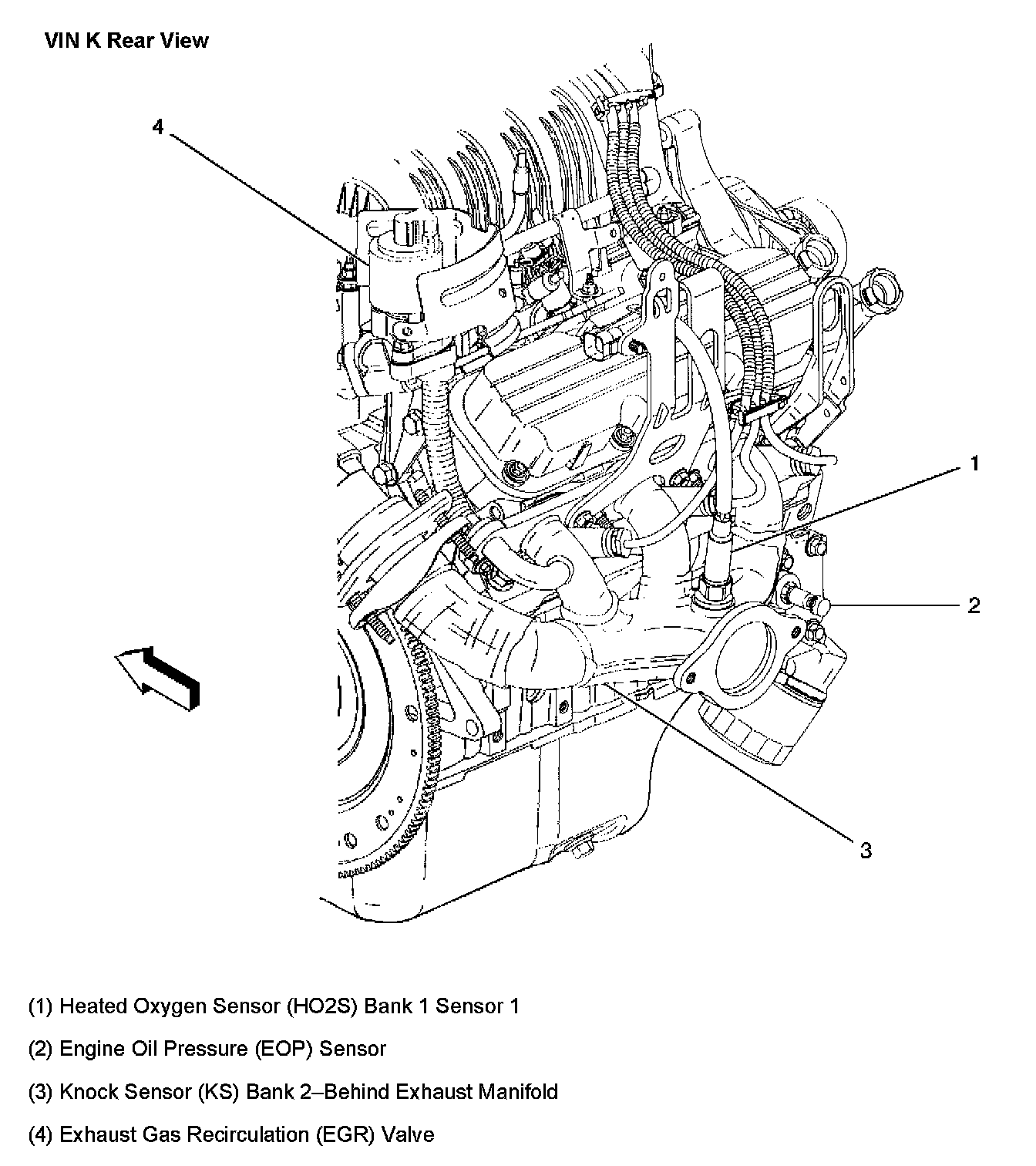

VIN K Rear View:
