Home >> Pontiac >> 2000 >> Sunfire L4-2.2L VIN 4 >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Diagrams >> Electrical Diagrams >> 3T40 Automatic Transaxle

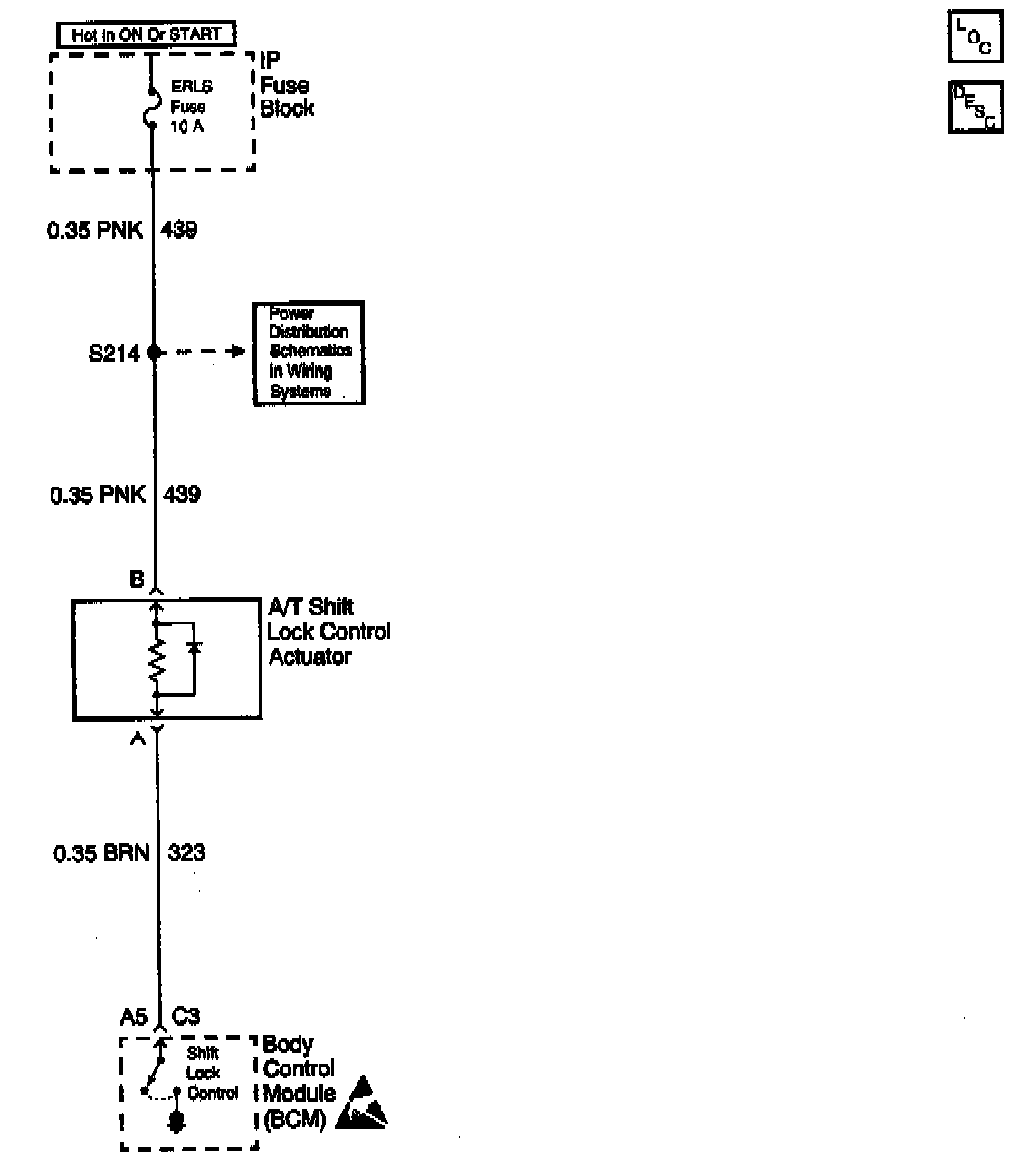

3T40 Automatic Transaxle
