Sunfire L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Locations
>>
Harness Locations
>>

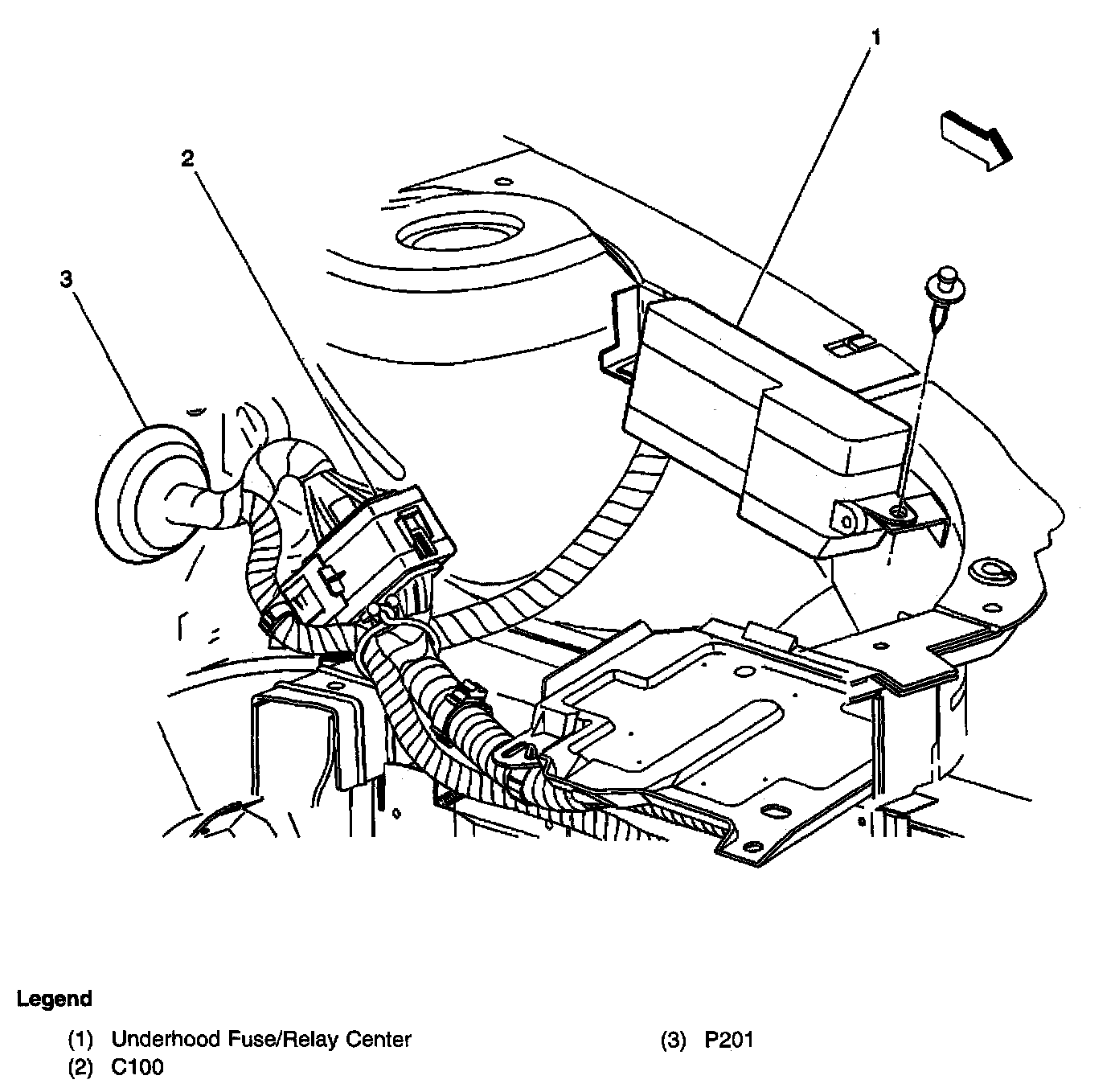

Harness Routing Views : Engine Compartment Views/Relay Center
Harness Routing Views : Engine Compartment Views/Relay Center
Location View:
