Door Jamb Switches and Door Lock/Unlock Relay
Door Jamb Switches and Door Lock/Unlock Relay

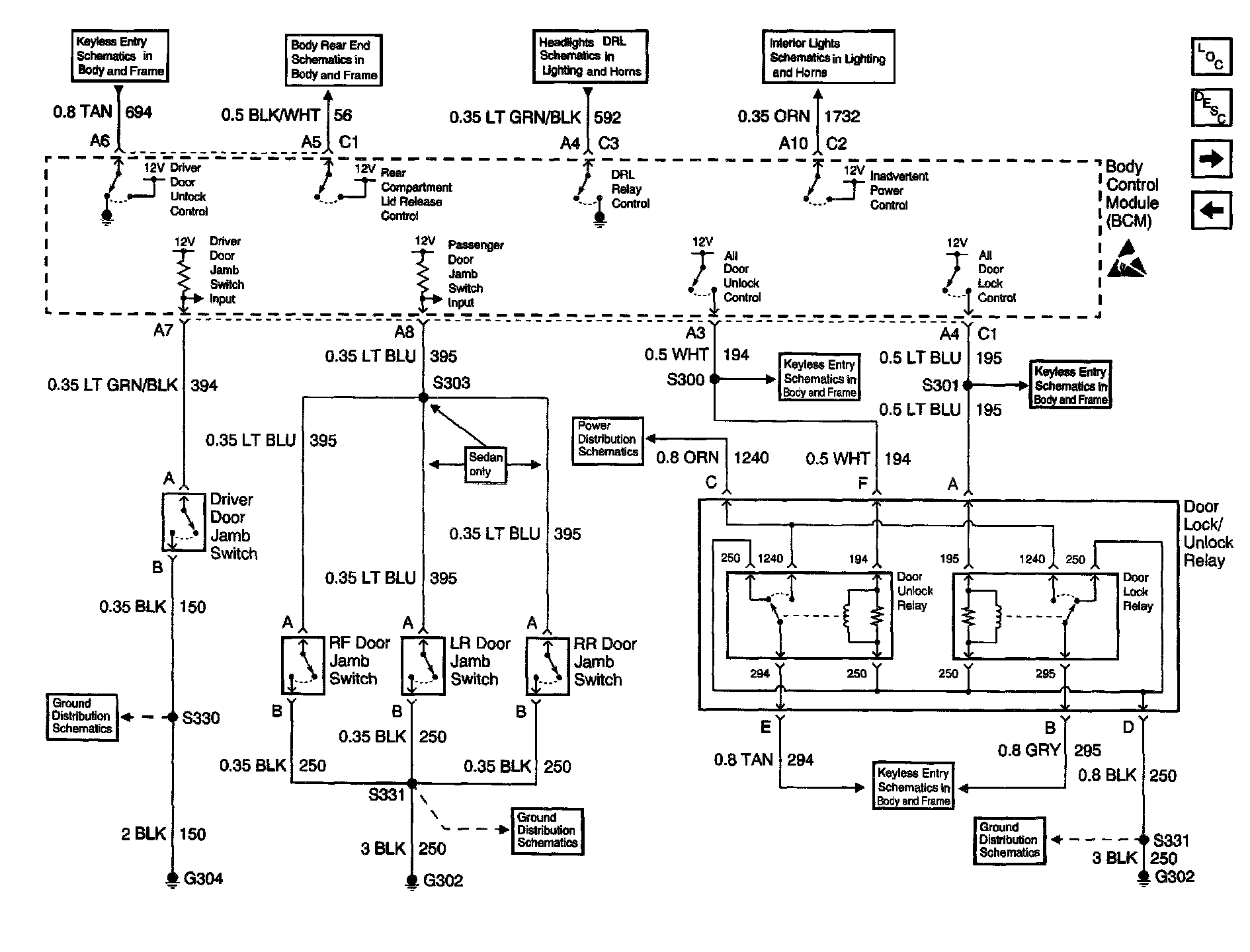

Body Control Module Schematics : Door Jamb Switches and Door Lock/Unlock Relay:
