Heater A/C Control Assembly C3
Heater A/C Control Assembly C3

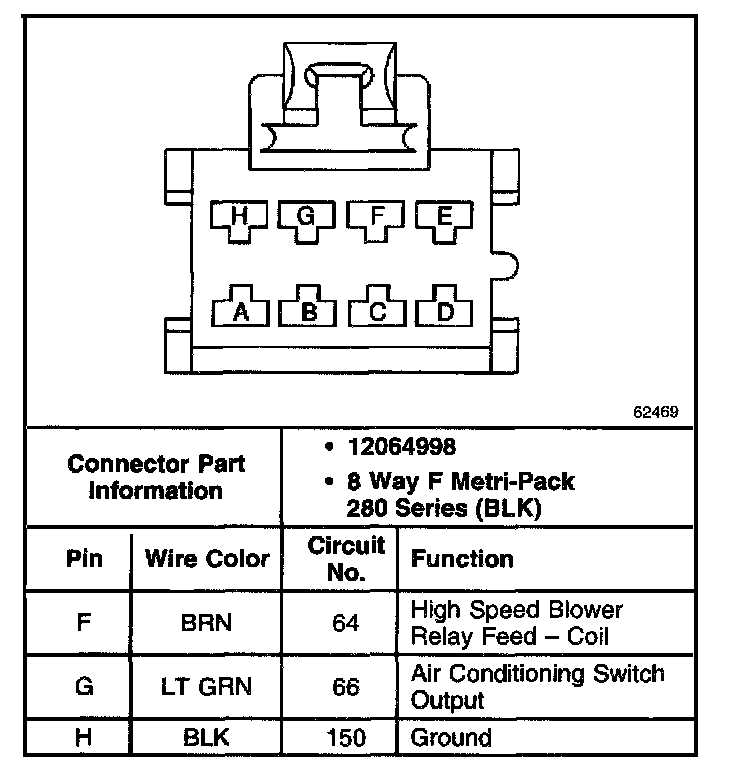

Heater A/C Control Assembly C3 (Part 1 Of 2):
Heater A/C Control Assembly C3 (Part 2 Of 2):
