Home >> Pontiac >> 2000 >> Sunfire L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Components >> Switches >> Ignition Switch

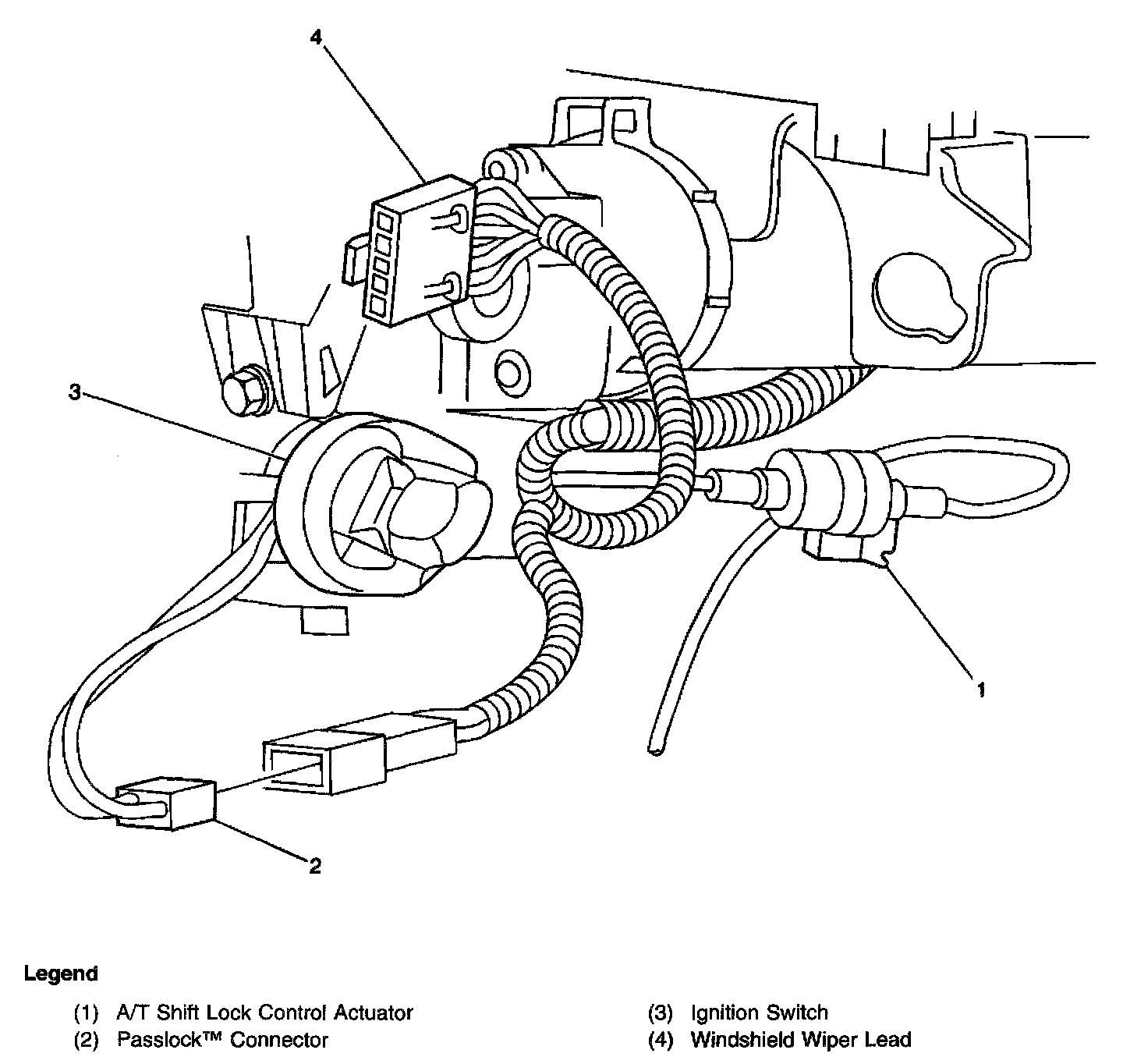

Ignition Switch

Location View:




At the right side of the steering column
