Home >> Pontiac >> 2000 >> Grand Prix V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Components >> Relays >> Rear Window Defogger Relay

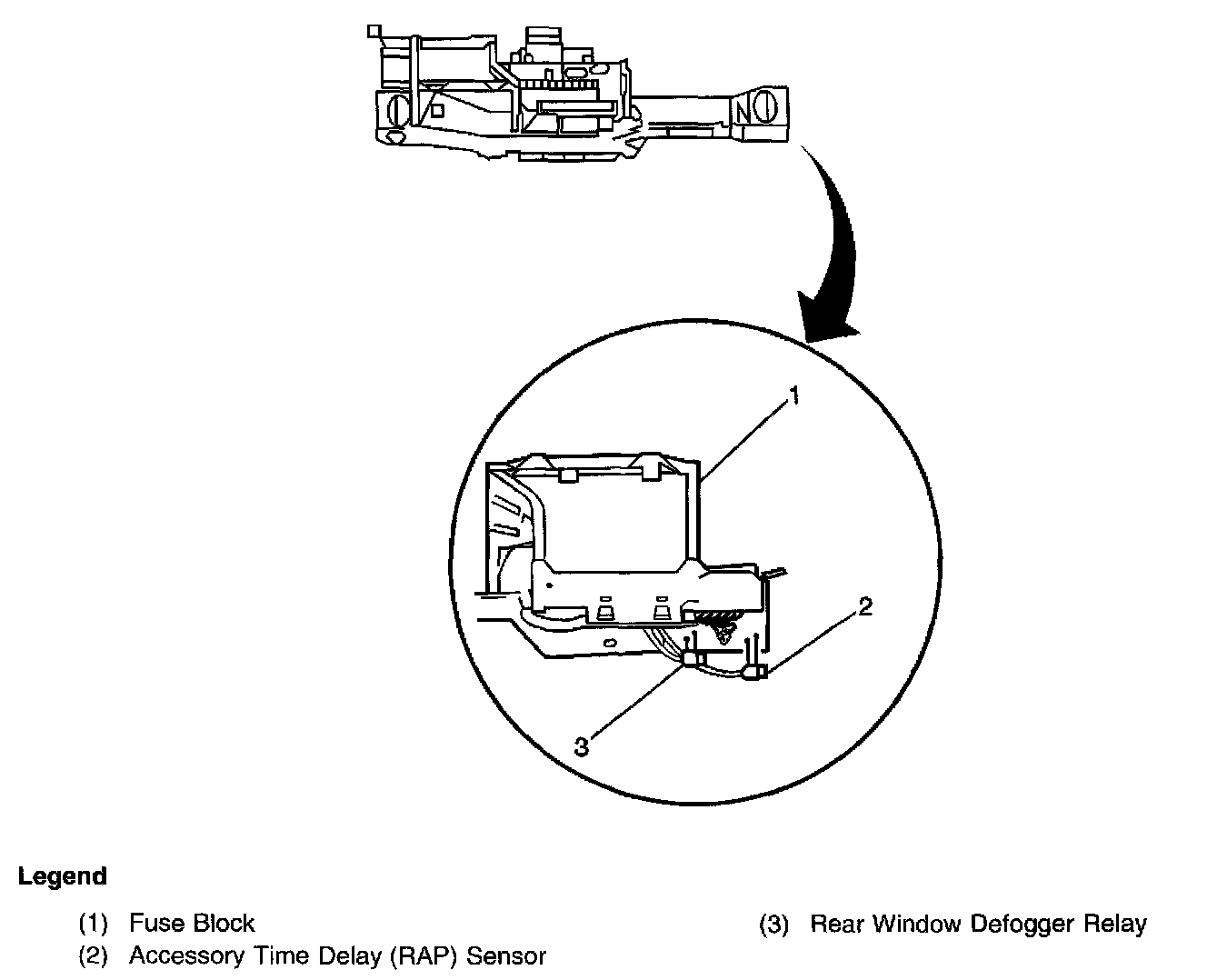

Rear Window Defogger Relay

Locations View:




Behind the right side of the IP, mounted to the IP cross beam above the fuse block
