Home >> Pontiac >> 2000 >> Grand Prix V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio/Stereo >> Radio Antenna Module

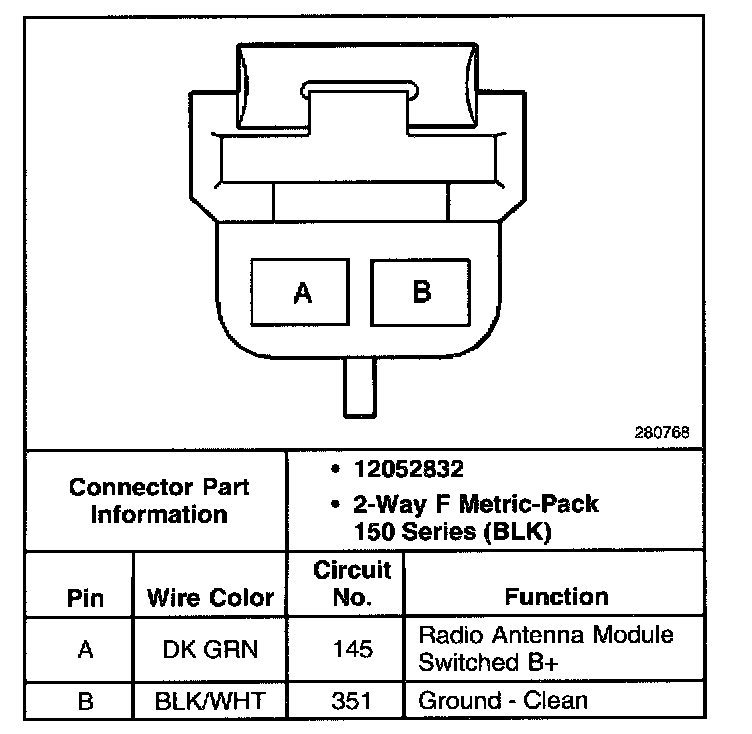

Radio Antenna Module

Radio Antenna Module:




Refer to RPO Code List. Application and ID
