Theft Deterrent Relay

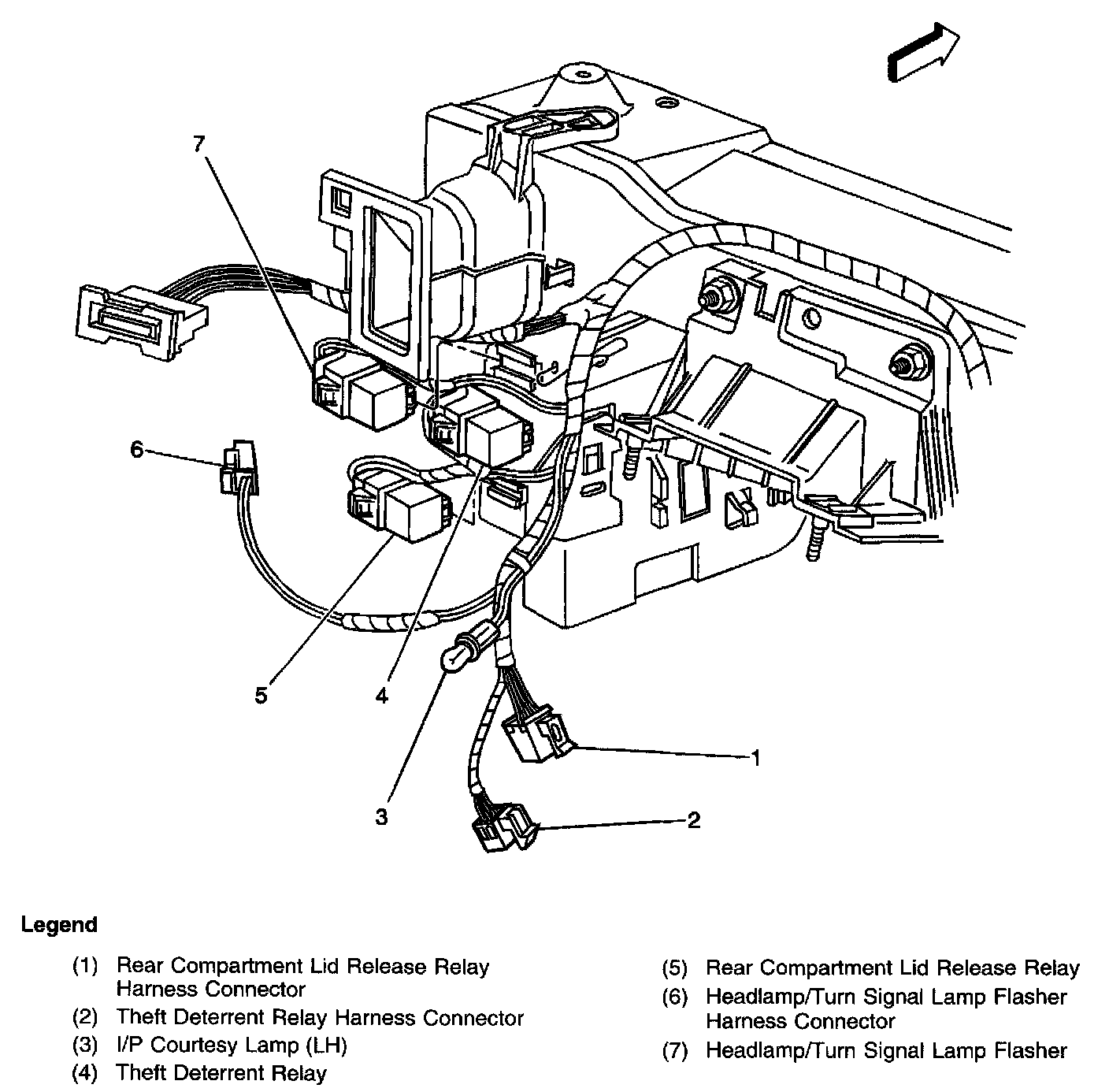

Locations View:
Locations View:
Below the left side of the IP, mounted to the leading face of the BCM mounting bracket
