Daytime Running Lamp (DRL) Diode
Daytime Running Lamp (DRL) Diode

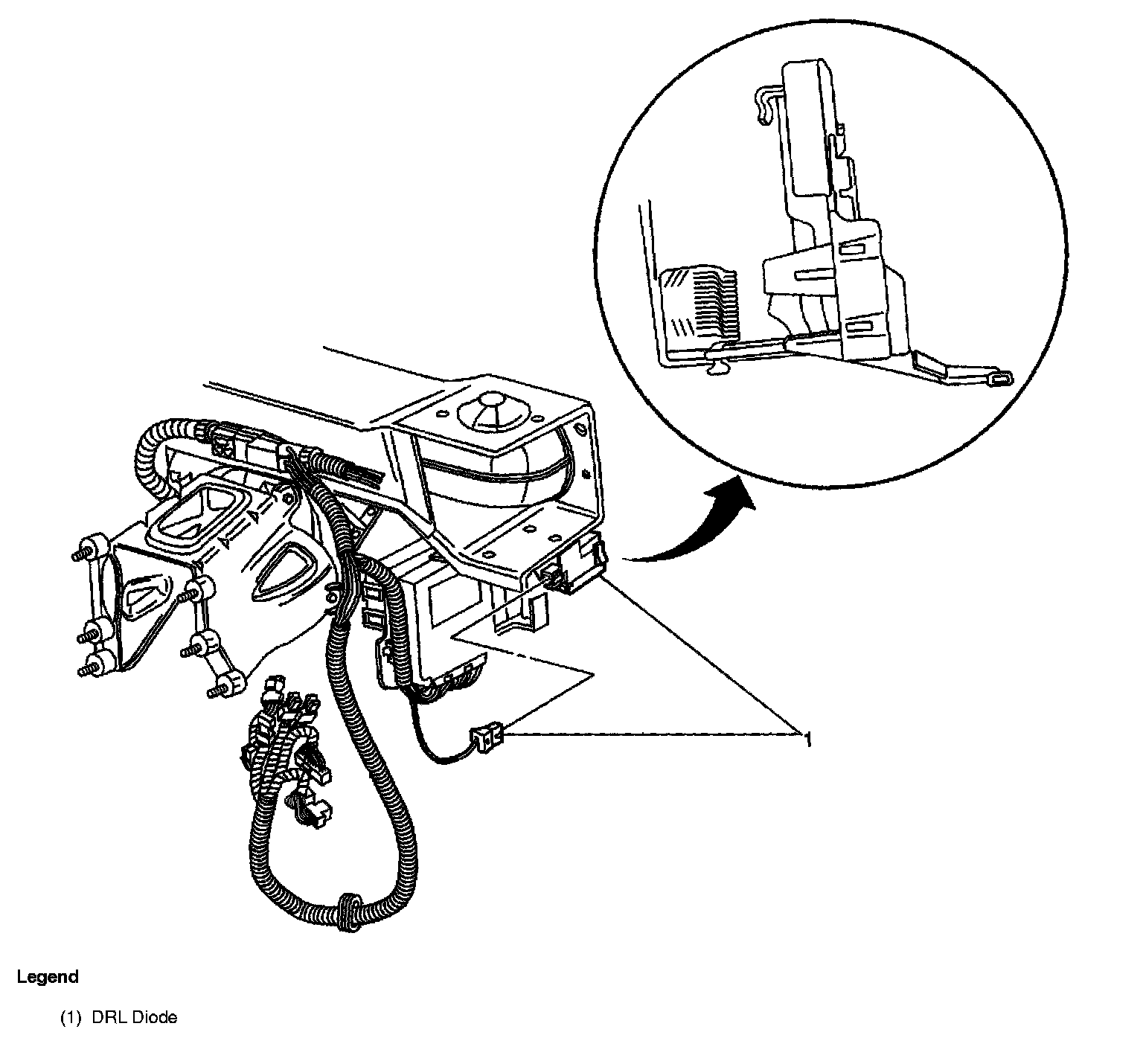

Locations View:
Below the left side of the IP, mounted on the cross beam above the park brake
