V5 - Conventional Mount

TOOLS REQUIRED
J 5403 Snap Ring Pliers

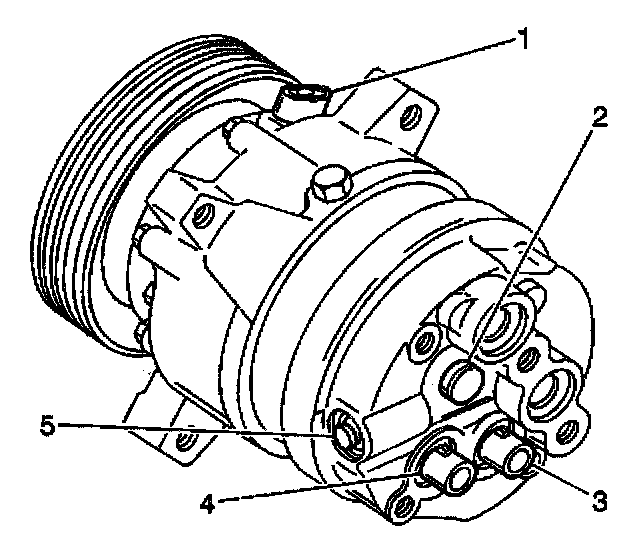

1. Remove the control valve retaining ring using the J 5403.
2. Remove the control valve assembly (5).
