DRL Relay Control, Left FRT DR Jamb SW, & Fog Lamp SW Input
DRL Relay Control, Left FRT DR Jamb SW, & Fog Lamp SW Input

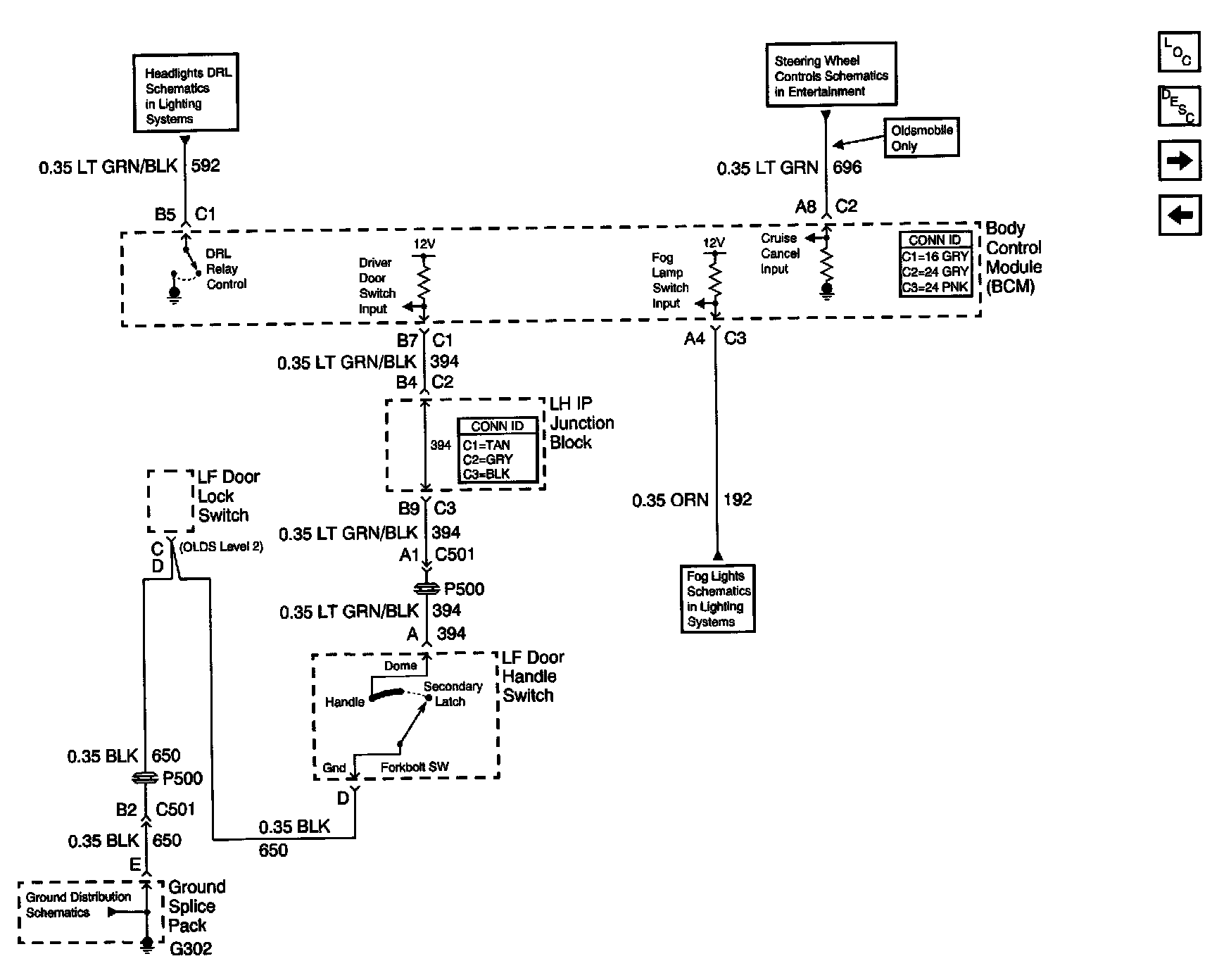

Body Control Module Schematics: DRL Relay Control, Left Front Door Jamb Switch, And Fog Lamp Switch Input:
