Home
>>
Pontiac
>>
2000
>>
Grand AM V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Locations
>>
Component Locations
>>
Miscellaneous Components
>>
IP Junction Block, Left
IP Junction Block, Left

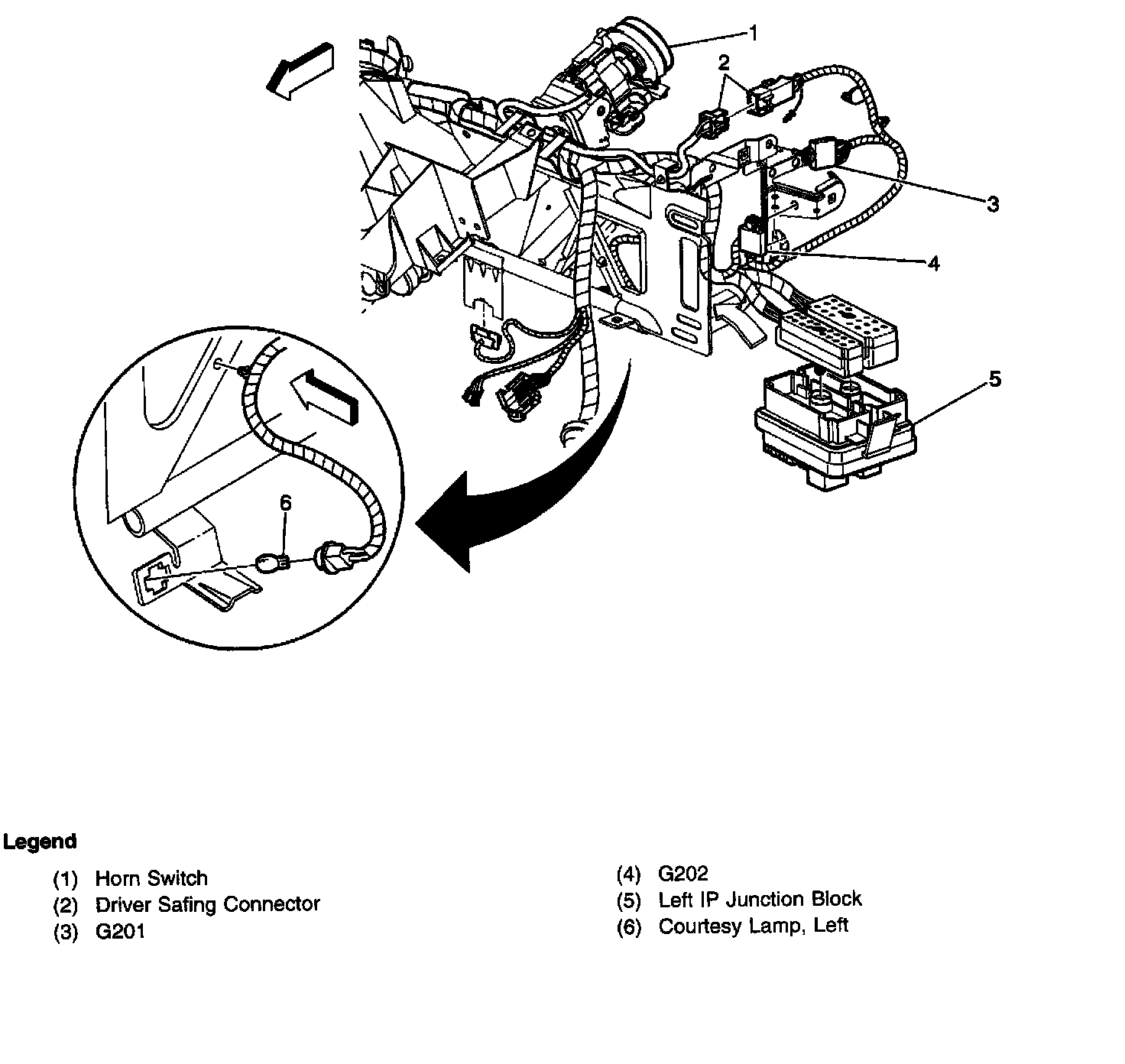

Location View:
Left Side Of Instrument Panel:
Location View:
On the left side of the instrument panel
