PWR CIRCs, Washer Solvent Level Sensor

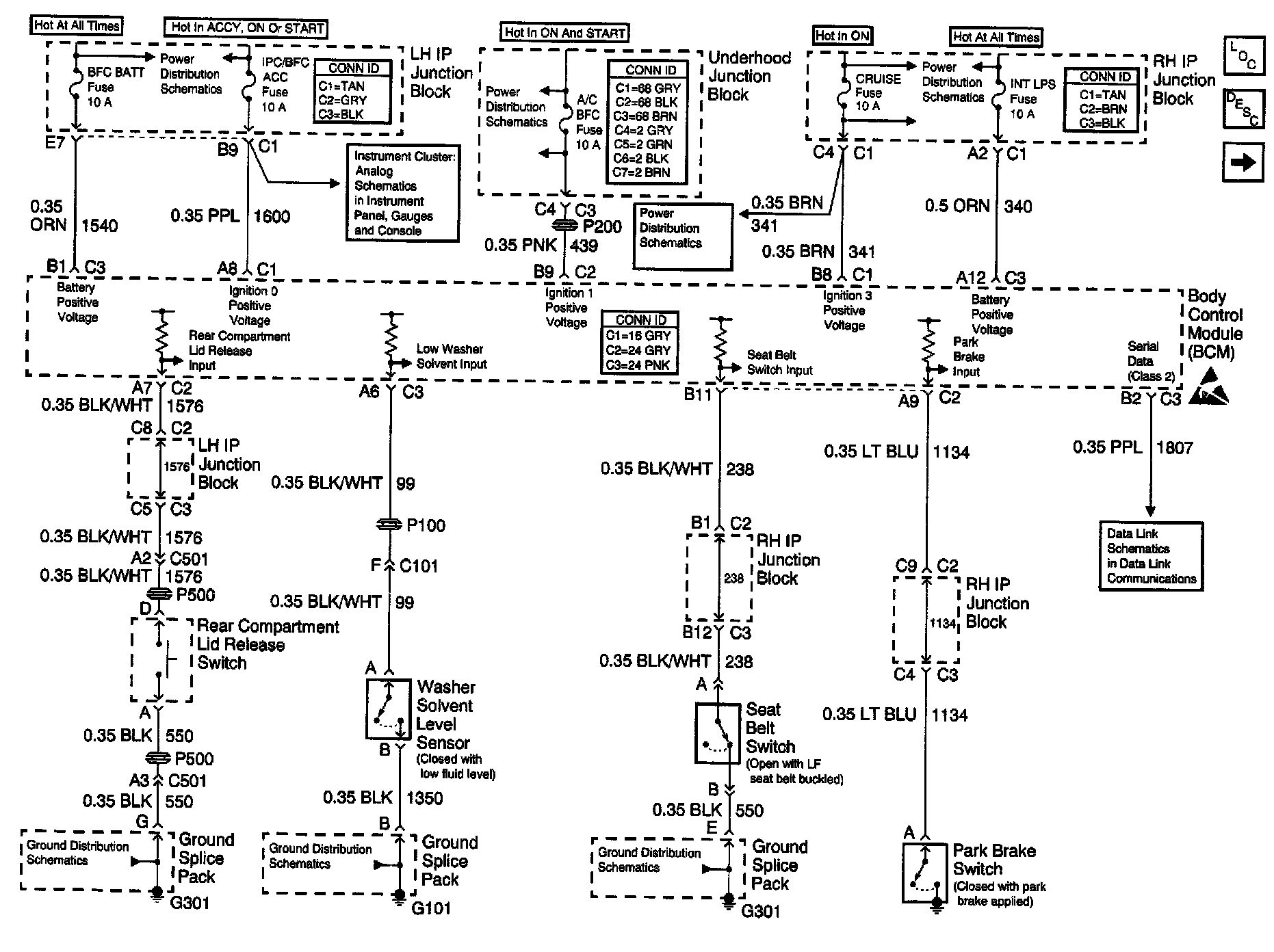

Body Control Module Schematics: Power Circuits, Washer Solvent Level Sensor, Seat Belt, Park Brake And Rear Compartment Switches:
