Grand AM V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Steering Pressure Control Valve
Power Steering Pressure Control Valve

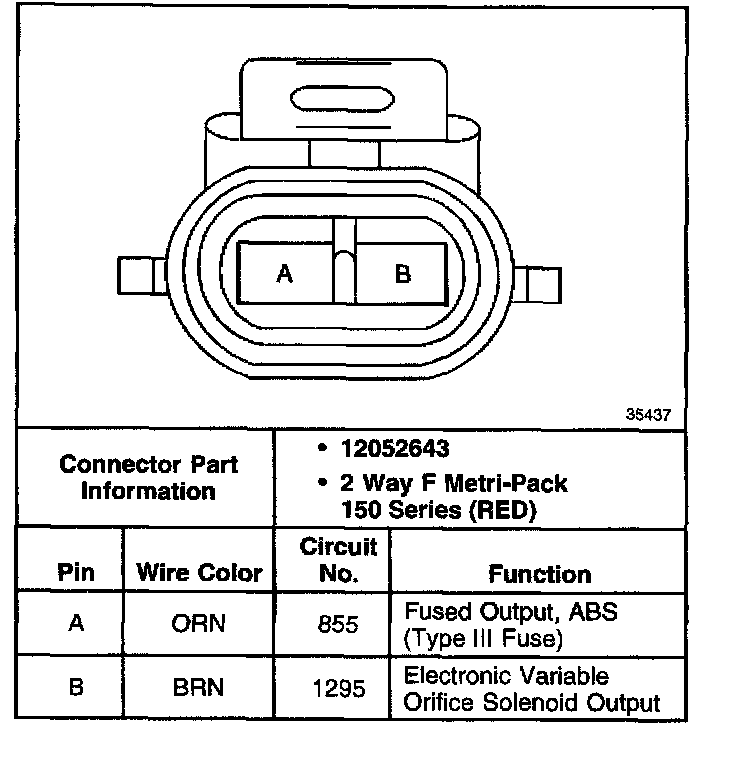

Electronic Variable Orface (EVO) Solenoid
Steering Wheel Position Sensor
