Home >> Pontiac >> 2000 >> Firefly (CANADA) L3-1.0L >> Repair and Diagnosis >> Wiper and Washer Systems >> Diagrams >> Electrical Diagrams >> Front and Rear Wiper Motors

Front and Rear Wiper Motors

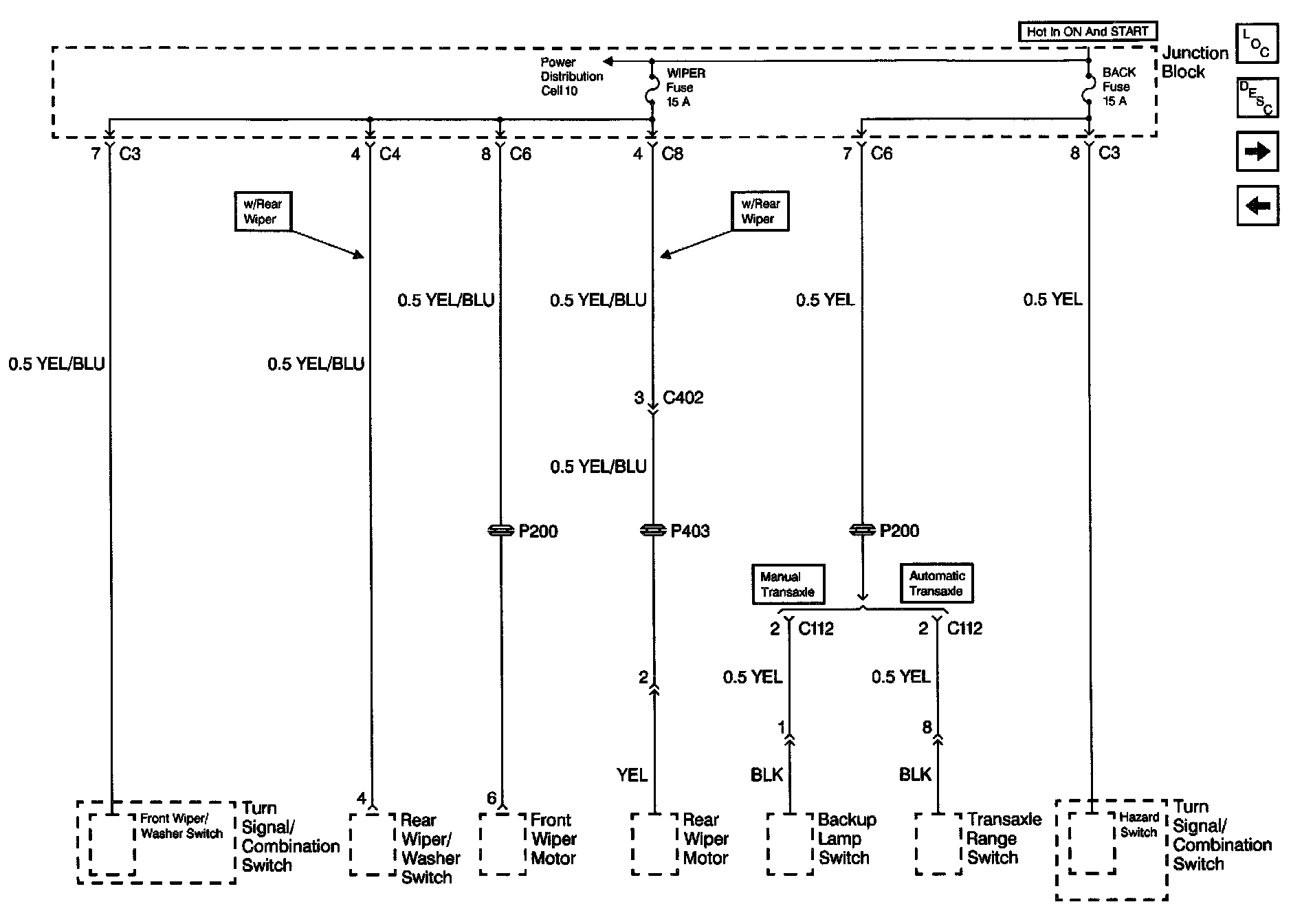

Fuse Block Details Schematics: Front And Rear Wiper Motors:
