Sealing Strip Replace-Rear Door Window Belt Inner

REMOVAL PROCEDURE




1. Remove the rear door trim panel.

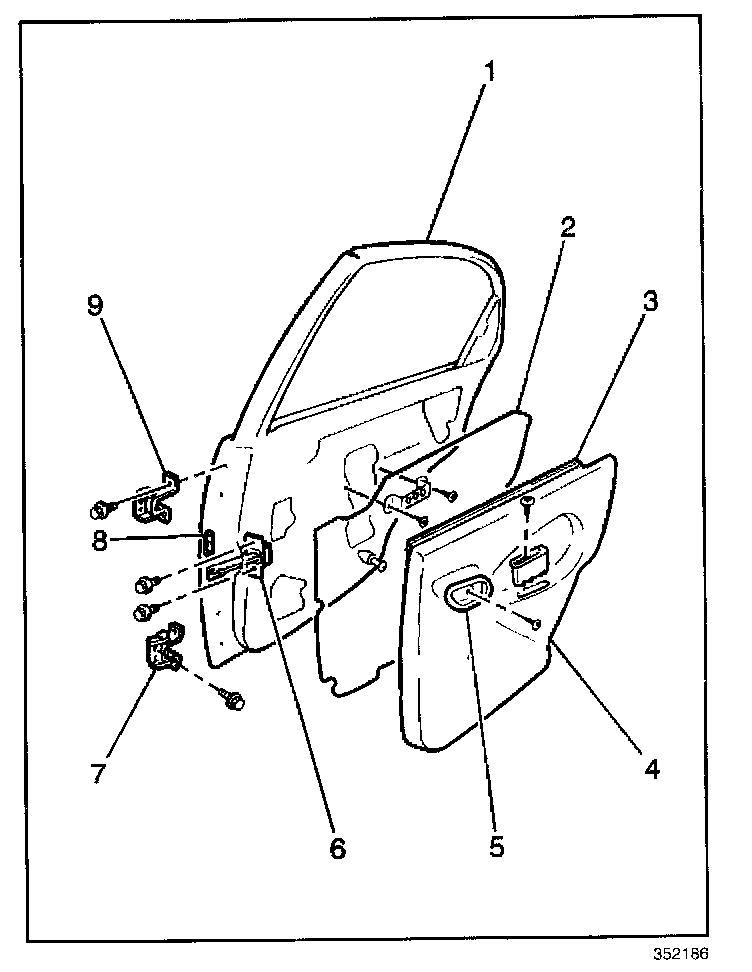

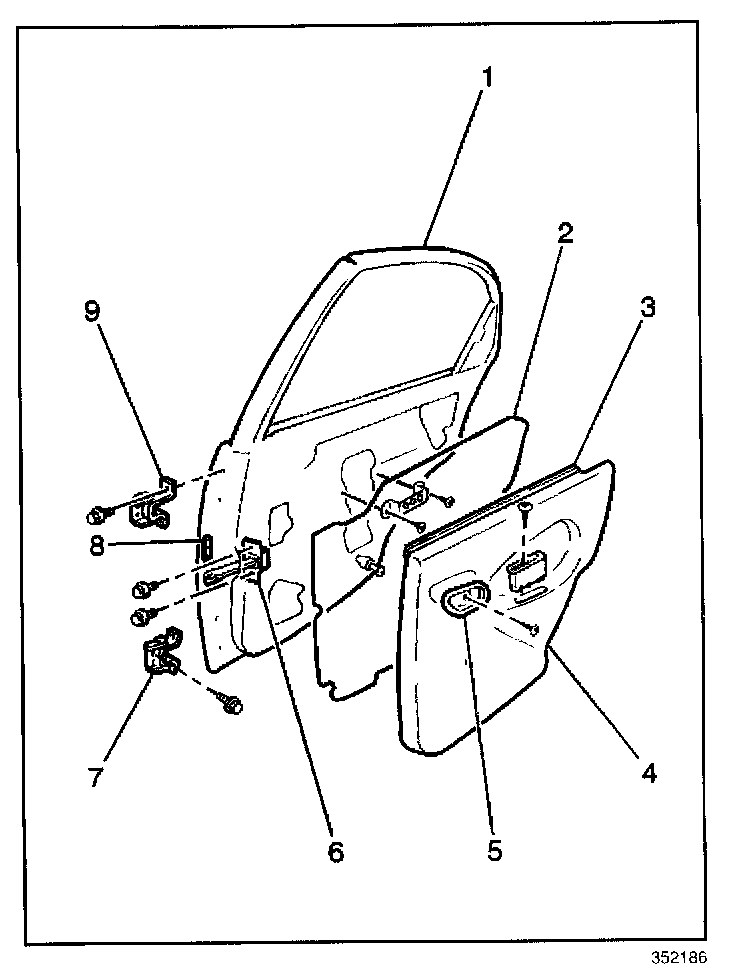

2. Release the 4 tabs that retain the inner sealing strip (3) to the door trim (4).

INSTALLATION PROCEDURE




1. Insert the tabs of the inner sealing strip (3) into the door trim (4). Fold the tabs over.
2. Install the rear door trim panel.
