Window Channel Replacement - Front Door Front/Rear (Rear)

REMOVAL PROCEDURE




1. Remove the front door window.

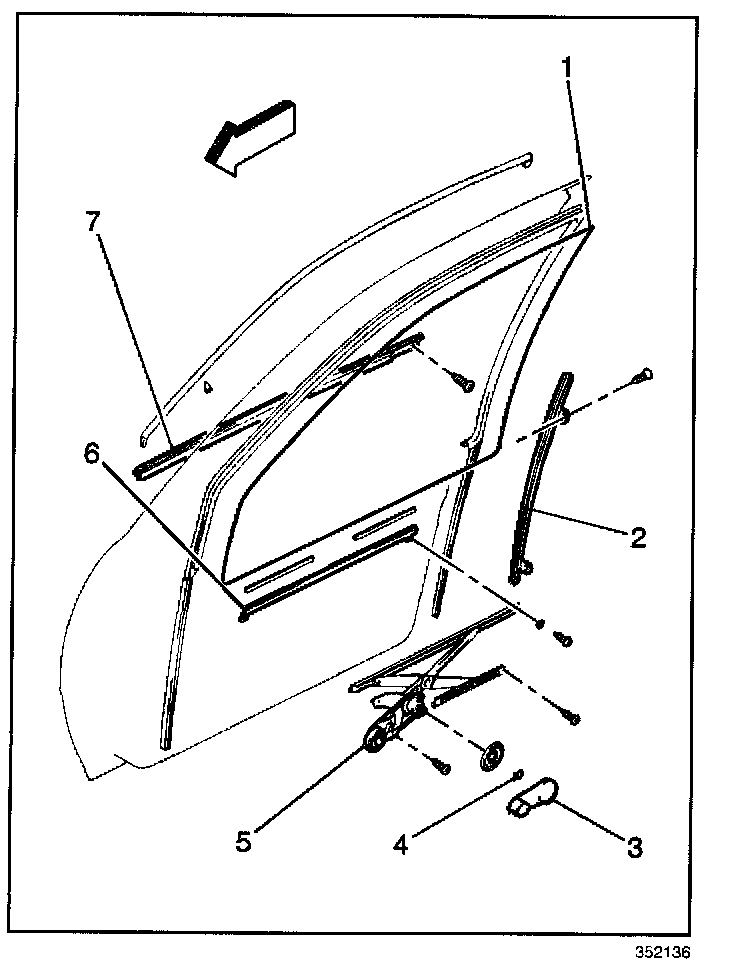

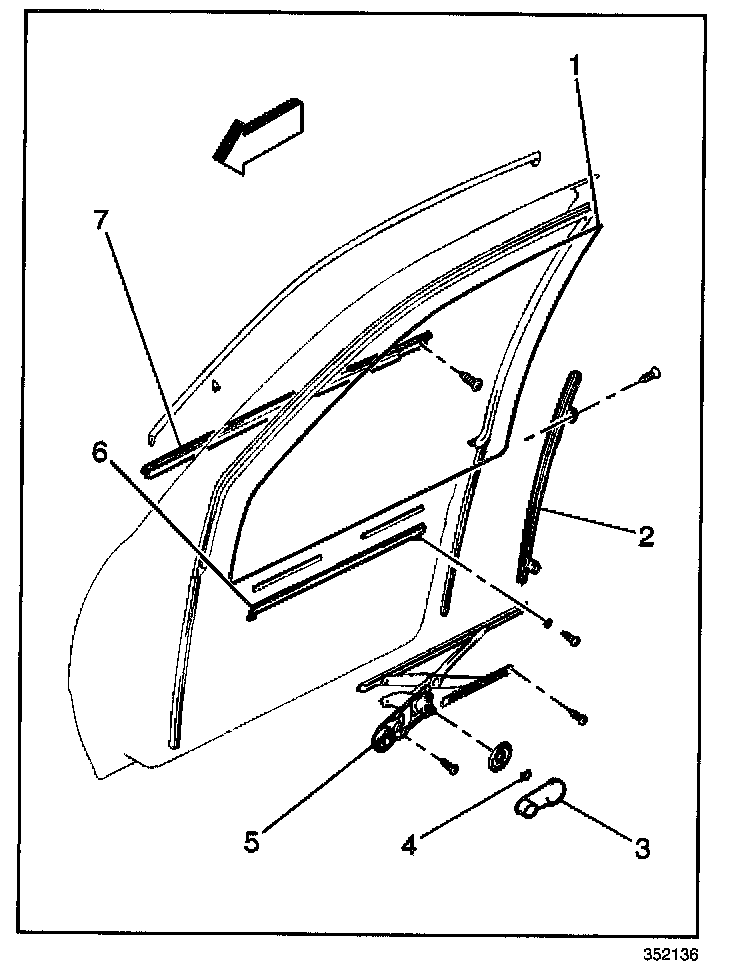

2. Position the front door water deflector aside in order to gain access to the screws and the rear window channel (2).
3. Remove the door window weather strip from the rear window channel (2).
4. Remove the rear window channel (2) from the front door by removing the 2 screws.

INSTALLATION PROCEDURE




1. Install the rear window channel (2) to the front door. Secure the channel with the 2 screws.
2. Install the door window weather strip to the rear window channel (2).
3. Install the front door window.
