Speedometer Gear, M/T: Service and Repair
Removal Procedure^ Tools Required
- J34839 Pinion Bearing Remover
- J37764 Slide Hammer Adapter
- J23907 Slide Hammer
1. Slide the boot on the speedometer cable.
2. Slide the boot off the speedometer driven gear case.

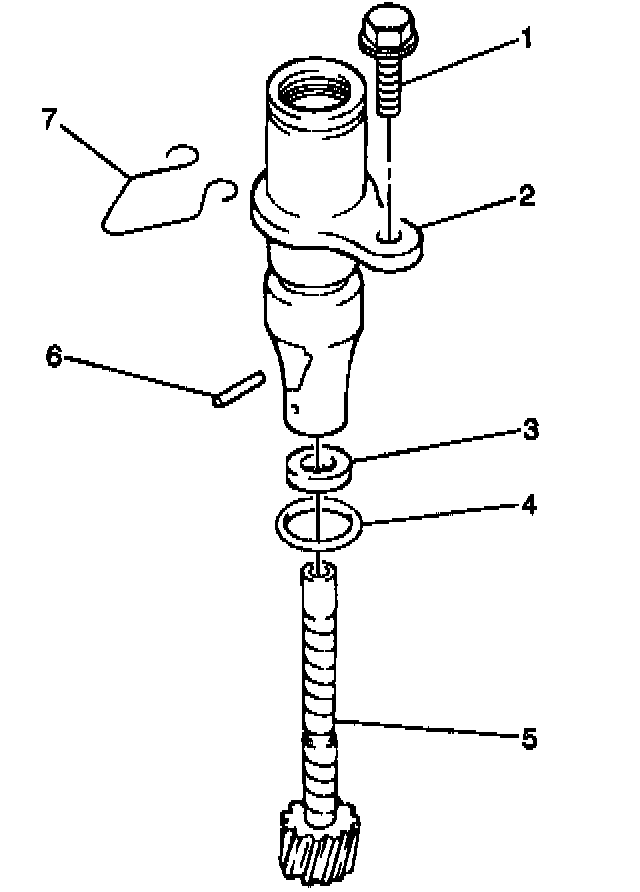

3. Remove the following components from the speedometer driven gear case (2):
^ The speedometer cable retaining clip (7)
^ The speedometer cable
4. Remove the following components from the transaxle:
4.1. The retaining bolt (1)
4.2. The speedometer driven gear case (2)
5. Use a standard drift punch in order to remove the roll pin (6) from the speedometer driven gear case (2).
6. Remove the speedometer driven gear (5) from the speedometer driven gear case (2).
7. Remove the O-ring (4) from the speedometer driven gear case (2).

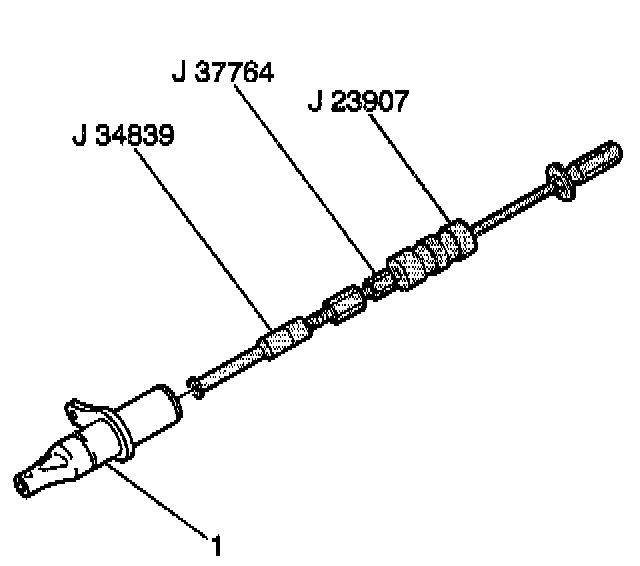

8. Use the following tools in order to remove the lip seal from the inside of the speedometer driven gear case (1):
8.1. J34839
8.2. J37764
8.3. J23907
9. Inspect the speedometer driven gear for excessive damage.
10. Inspect the O-ring damage.
Installation Procedure
^ Tools Required
- J34857 Gearshift Shaft Seal Installer
- J36850 Transmission Assembly Lubricant
1. Apply some J36850 to the new lip seal.

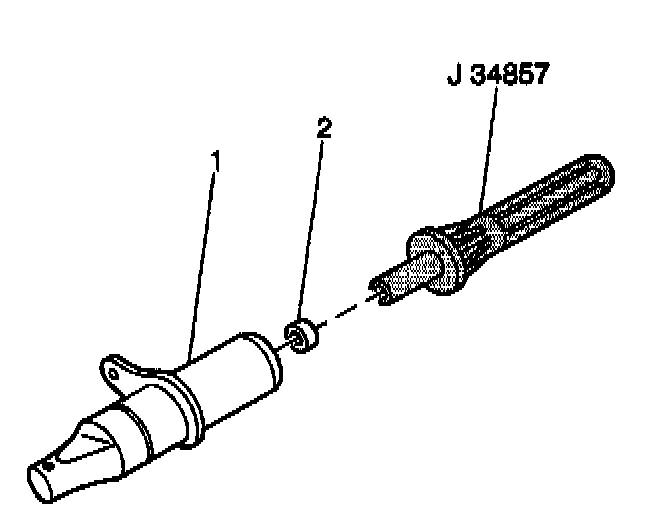

2. Use the J34857 in order to install the new lip seal (2) into the speedometer driven gear case (1).

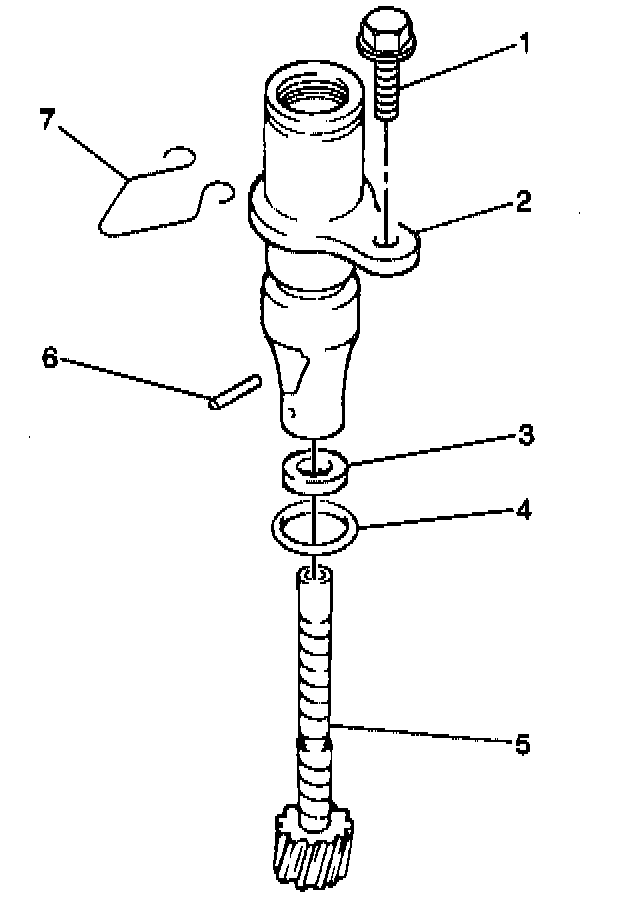

3. Install the O-ring (4) onto the speedometer driven gear case (2).
4. Apply J36850 some to the O-ring (4).
5. Install the speedometer driven gear (5) into the speedometer driven gear case (2).
6. Use a standard drift punch in order to install the roll pin (6) into the speedometer driven gear (5).
Notice: Refer to Fastener Notice in Service Precautions.

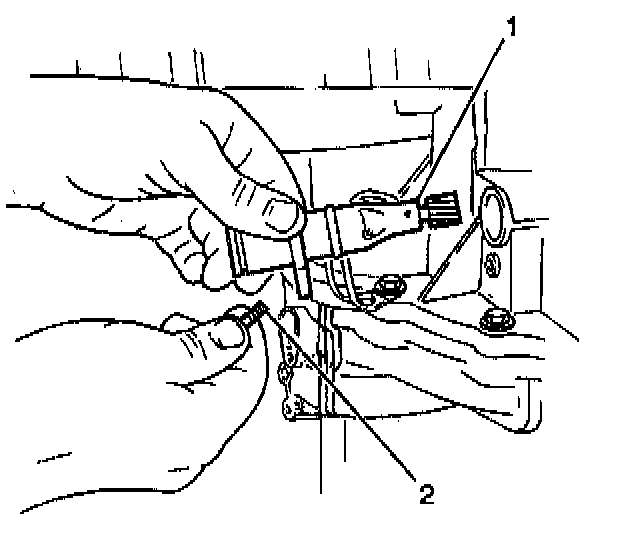

7. Install the speedometer driven gear case into the transaxle.
Install the bolt that retains the speedometer driven gear case (1).
Tighten the retaining bolt (2) to 7 Nm (62 inch lbs.).
8. Install the speedometer cable into the speedometer driven gear case.
Use the speedometer cable retaining clip in order to secure the speedometer cable.
9. Slide the boot down the speedometer cable.
10. Slide the boot over the speedometer driven gear case.
