Speedometer Gear, A/T: Service and Repair

Removal Procedure

^ Tools Required
- J34839 Pinion Bearing Remover
- J37764 Slide Hammer Adapter
- J23907 Slide Hammer






1. Slide the boot over the speedometer cable (1). Remove the boot from the speedometer driven gear case (3).
2. Remove the retaining clip (2) and the cable from the speedometer driven gear case.
3. Remove the 1 retaining bolt (4) and the speedometer driven gear from the transaxle case.
4. Use a standard drift punch and a hammer in order to remove the roll pin from the speedometer driven gear case.
5. Remove the speedometer driven gear from the speedometer driven gear case.
6. Remove the O-ring from the speedometer driven gear case.

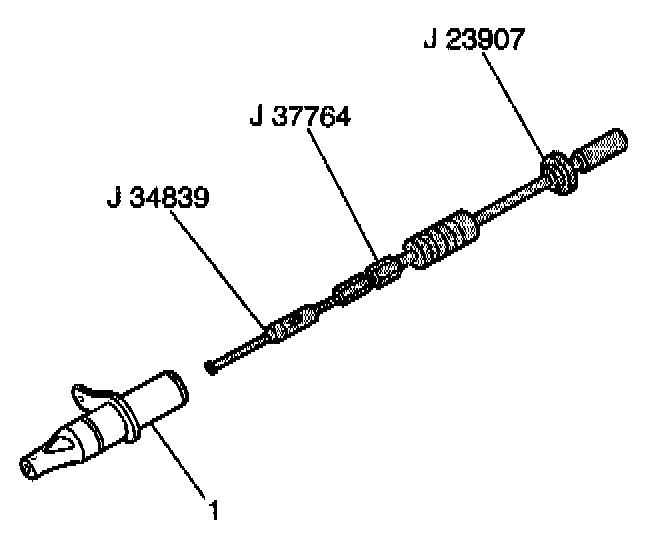

7. Use the J34839, the J37764, and the J23907 in order to remove the lip seal from inside the speedometer driven gear case (1).
8. Inspect the speedometer driven gear for tooth damage. Replace the speedometer driven gear, as necessary.
9. Inspect the O-ring for damage. Replace the O-ring, as necessary.

Installation Procedure

^ Tools Required
- J36850 Transmission Assembly Lubricant
- J34857 Gearshift Shaft Seal Installer

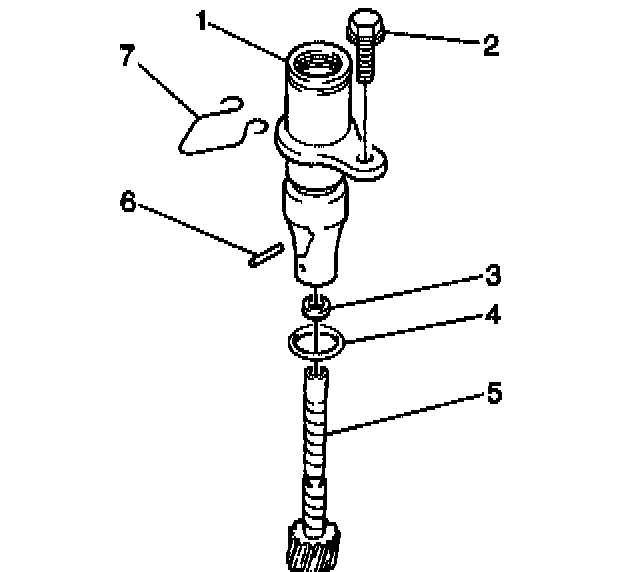

1. Apply J36850 to the new lip seal (3).

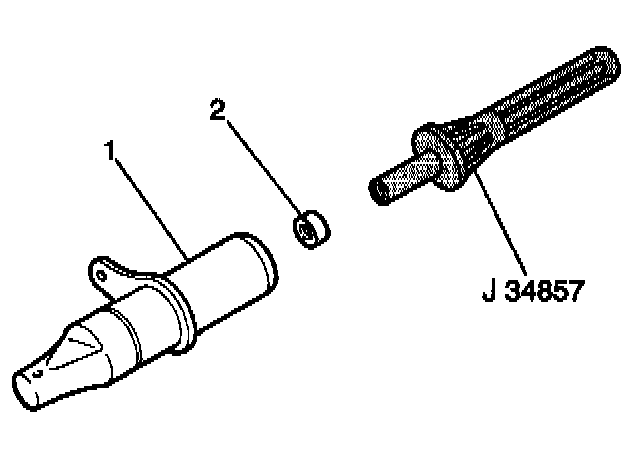

2. Use the J34857 in order to install the new lip seal (2) to the speedometer driven gear case.
3. Install the O-ring (4) onto the speedometer driven gear case (1).
4. Apply J36850 to the O-ring of the speedometer driven gear case.
5. Install the speedometer driven gear (5) into the gear case.
6. Install the roll pin into the speedometer driven gear case using a standard drift punch and a hammer.

Notice: Refer to Fastener Notice in Service Precautions.

7. Install the speedometer driven gear case into the transaxle case. Secure the case with the retaining bolt (2).
Tighten the retaining bolt to 8 Nm (11 ft. lbs.).
8. Install the speedometer cable into the speedometer driven gear case. Secure the cable with the speedometer cable retaining clip.
9. Slide the boot down the speedometer cable over the speedometer driven gear case.
