39. Transaxle Range Switch Assemble

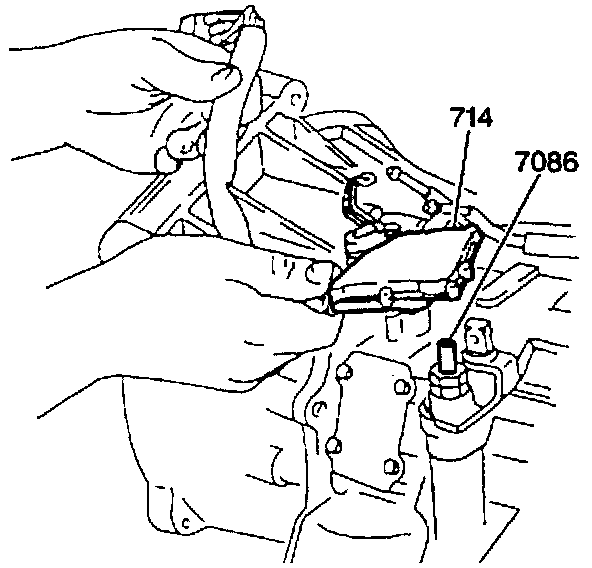

1. Install the transaxle range switch (714) onto the manual shift shaft (7086).
2. Install the transaxle range switch retaining bolt.
- Tighten the transaxle range switch retaining bolt to 23 Nm (17 ft. lbs.).

3. Install the transaxle range switch harness retaining clamps to the transaxle case.
- Tighten the range switch harness retaining clamp bolts to 23 Nm (17 ft. lbs.).
