35. Valve Body Assemble

IMPORTANT: You must install the gaskets and the spacer plate in the correct position for the fluid to flow through the fluid passages. Misplacement of the gaskets or the spacer plate will block the fluid passages, and shift failure will occur. Use caution not to tear or damage the valve body gaskets during installation.

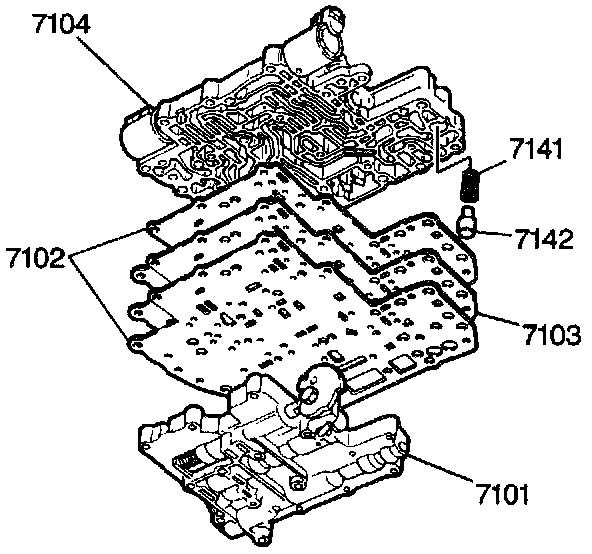

1. Install the new valve body gaskets (7102), separated by a spacer plate (7103) onto the lower valve body (7104).
2. Install the lower valve body onto the upper valve body (7101). Carefully align both halves with their common bolt holes. Confirm that the cooler bypass valve and spring (7142, 7141) remain in the lower valve body
3. Carefully turn the valve body assembly over, so that the upper valve body (7101) is on the top.





4. Install 16 upper valve body bolts in the following order:
4.1. Install two reamer bolts (positioning bolts) designated in the illustration by the number 4. Finger tighten only.

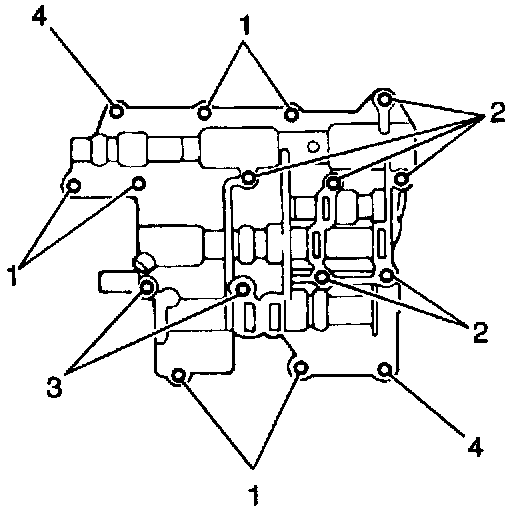

4.2. Install the 16 bolts (designations 1, 2, 3 and 4) in the following order. Finger tighten only.
- Bolt 4 - Reamer bolt - 2 pieces
- Bolt 3 - 44.0 mm (1.73 inch) - 2 pieces
- Bolt 2 - 38.0 mm (1.49 inch) - 6 pieces
- Bolt 1 - 29.5 mm (1.16 inch) - 6 pieces

NOTICE: Torque sequence and specification is very important to valve body operation. If bolts are torqued at random, valve bores may become distorted and inhibit valve operation. DO NOT use air powered tools when assembling the valve bodies.





5. Tighten the valve body bolts.

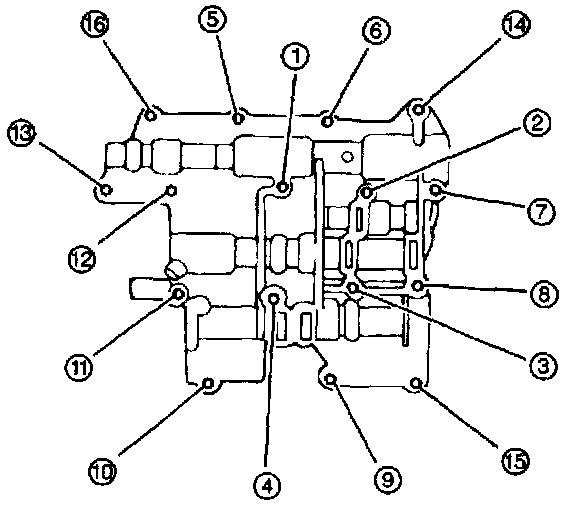

- Tighten all 16 bolts in the order shown to 6 Nm (53 inch lbs.).

NOTICE: When you install the valve body to the case, confirm that the accumulators and the springs are in their correct positions and that all valve body bolts are installed according to length and position. Do not use air powered tools when you install the valve body assembly.





6. Install the valve body assembly (7104) to the transaxle case. Align the manual valve (7107) with the shift lever pin (7148).

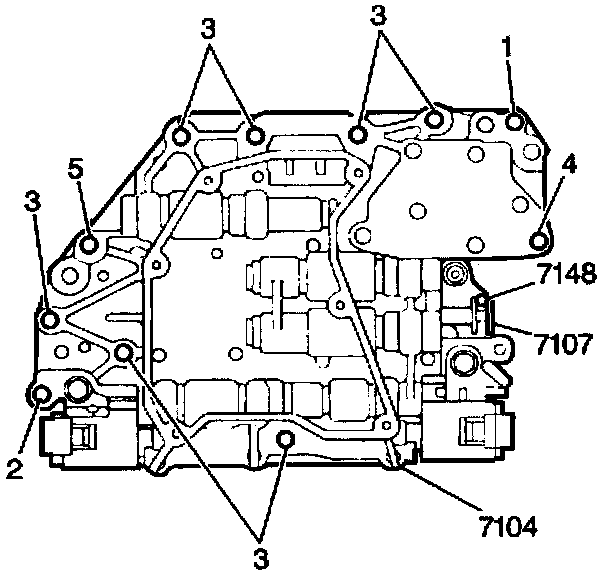

7. Install 11 lower valve body-to-case bolts (designations 1, 2, 3, 4 and 5) in the following order. Finger tighten only.
- Bolt 4 - 47 mm (1.85 inch) - 1 piece
- Bolt 3 - 35 mm (1.38 inch) - 7 pieces
- Bolt 1 - Reamer bolt: 32 mm (1.26 inch) - 1 piece
- Bolt 2 - Reamer bolt: 25 mm (0.98 inch) -1 piece
- Bolt 5 - 25 mm (0.98 inch) - 1 piece





8. - Tighten the body-to-case bolts.
- Tighten the reamer bolts, indicated by the numbers 1 and 2 in the illustration, to 12 Nm (106 inch lbs.).

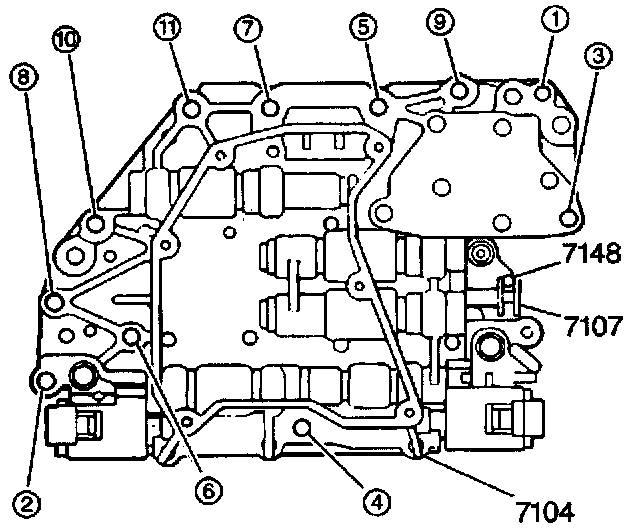

- Tighten the remaining lower valve body bolts in the order specified in the illustration, to 12 Nm (106 inch lbs.).

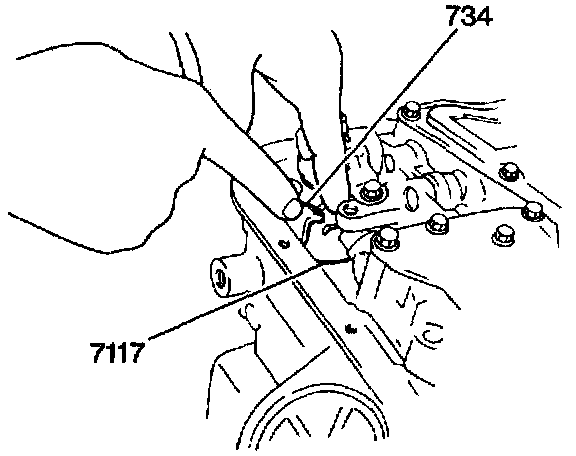

9. Install the TV cable assembly (734) to the transaxle case.
10. Install the TV cable to the throttle valve cam (7117).
