3. Transaxle Range Switch Disassemble

1. Remove the transaxle range switch harness retaining clamps from the transaxle case.
2. Remove the transaxle range switch retaining bolt.

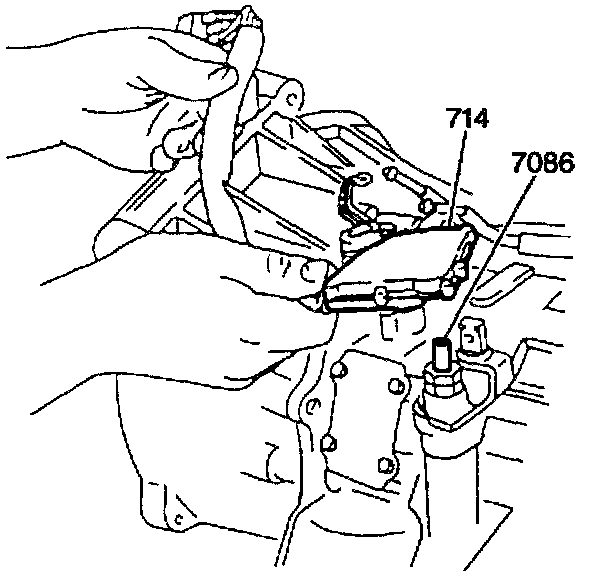

3. Lift straight up in order to remove the transaxle range switch (714) from the manual shift shaft (7086).
