21. Countershaft Assemble

- Tools Required
- J 7079-2 Driver Handle
- J 35608 Countershaft Installer

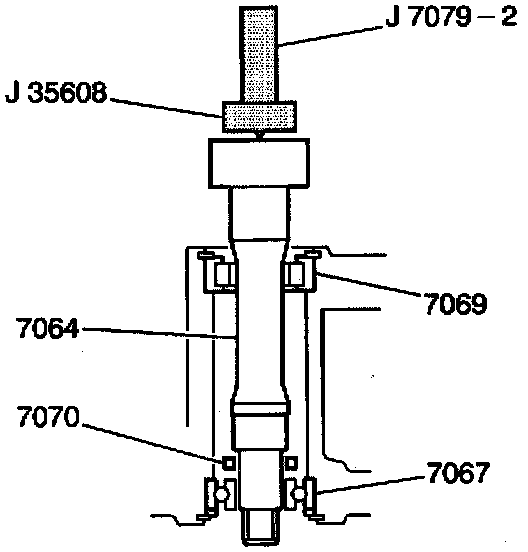

Using a J 35608 with a J 7079-2, insert the countershaft (7064) into the transaxle case, making sure that the roller bearing spacer (7070) is in the correct position. Then tap the countershaft into the transaxle case. Do not hammer excessively as this may damage the transaxle case.
