Home >> Pontiac >> 2000 >> Firefly (CANADA) L3-1.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Overhaul >> Repair Instructions >> 12. Differential Assemble Removal

12. Differential Assemble Removal

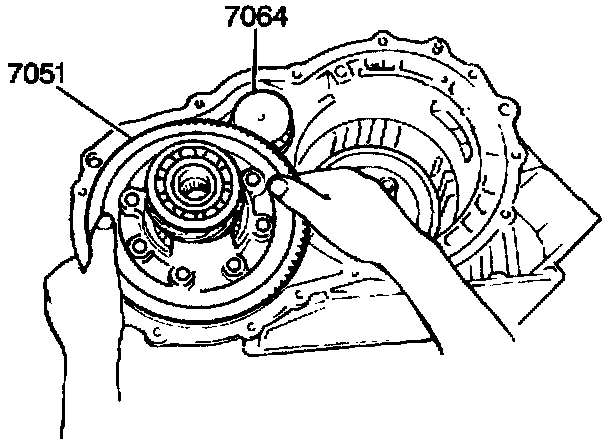

Remove the differential assembly (7051) by grasping the differential side bearing and gently lifting upward.
