Battery Is Undercharged or Overcharged
TOOLS REQUIREDJ 39200 Digital Multimeter
Usually, characteristics of a battery that is not charged adequately are slow cranking or a dark battery hydrometer. If this condition exists, check the following items for a cause:
1. Determine that the undercharged condition has not been caused by leaving accessories on for extended periods without charging the battery.
2. Check the drive belt for correct tension. Refer to Drive Belt Replacement 1.0L or to Drive Belt Replacement 1.3L in Engine.
3. If a battery fault is suspected, refer to Battery Load Test. Battery Load Test
4. Inspect the wiring for faults:
^ Verify that all connections are clean, tight, and not damaged.
^ Inspect the battery cable connections at the battery, at the starter and at the engine ground points.
^ Inspect the bulkhead connectors.

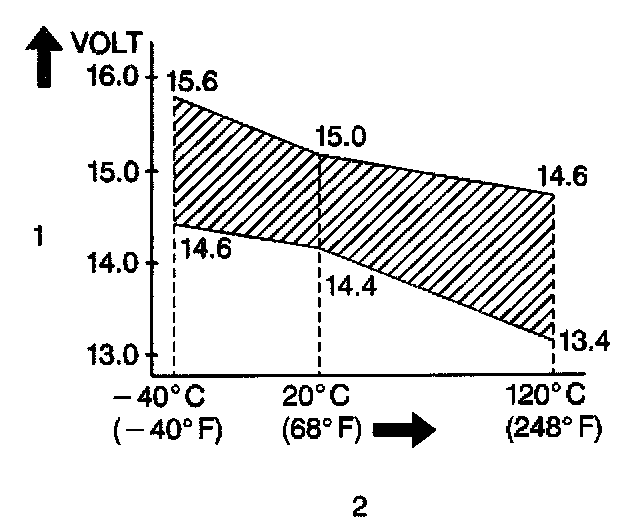

5. With all accessories turned off, connect a J 39200 across the battery. Run the engine at a moderate speed, and check the voltage, considering the temperature that the generator is exposed to during the test. When the temperature of the regulator case (2) in the generator increases, the voltage output (1) will decrease. The standard regulator voltage setting is 14.4 to 15.0 volts at 20°C (68°F). The minimum operating voltage should be 13.5 volts. If the voltage is at 13.5 volts or more, proceed to the next step. If the voltage is less than 13.5 volts, repair or replace the generator. Refer to Generator Overhaul or to Generator Replacement.
6. If the previous steps have not produced satisfactory results, perform the following generator test.
6.1. Disconnect the negative battery cable.
6.2. Remove the rubber protection, the nut, and the generator battery terminal wire.

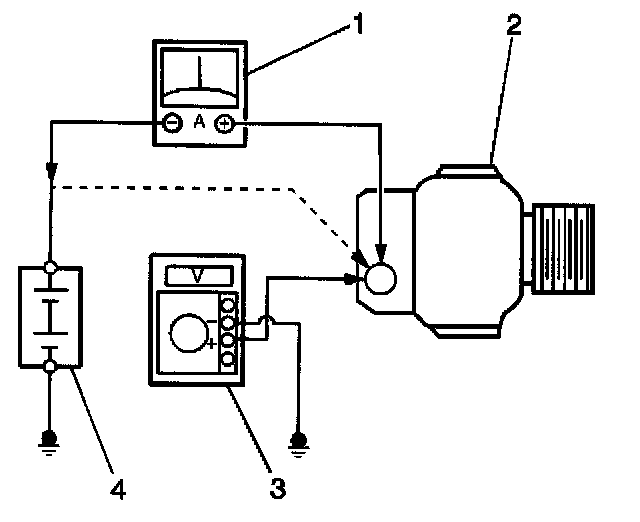

6.3. Connect an ammeter (1) between the generator (2) and the disconnected wire. Connect the ammeter black lead to the wire and the ammeter red lead to the generator battery terminal.
6.4. Connect a J 39200 (3) between the generator battery terminal and chassis ground.
6.5. Start the engine, and run the engine at 2000 RPM. Turn all accessories and high-beam headlamps on. Turn the blower to HIGH. Ground the generator F terminal with a screwdriver.
6.6. Adjust the engine speed in order to obtain the maximum current output.
6.7. If the current output is within 10 amperes of the maximum rating, and the voltage reading is 13.5 to 16.0 volts, the generator is not faulty and is not the cause of an undercharged battery condition. Refer to General Specifications. If the current output is not within 10 amperes of the maximum rating, or the voltage reading is less than 13.5 volts, repair or replace the generator. Refer to Generator Overhaul or to Generator Replacement.
If an obvious overcharge condition exists, such as spewing of the electrolyte, test the field windings for shorts and for grounds. If the field winding is faulty, replace the rotor, and retest the generator for correct voltage output. Refer to Generator Replacement and to Generator Overhaul.
