Solenoid Removal Procedure

SOLENOID REMOVAL PROCEDURE




1. Remove the starter from the vehicle.

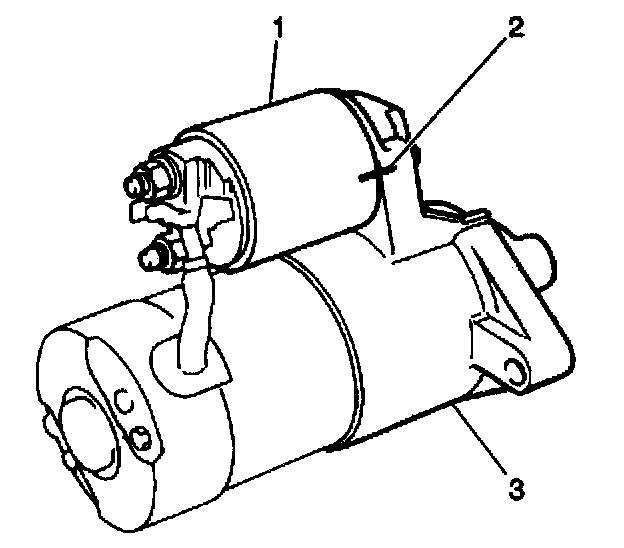

2. Scribe matchmarks (2) on the solenoid and on the drive housing in order to ensure correct solenoid installation.

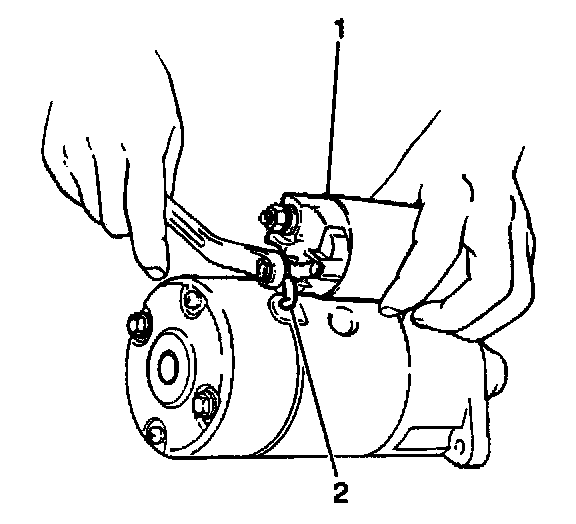

3. Remove the nut and the field coil lead wire (2) from the solenoid.




4. Remove the 2 screws and the solenoid (1) from the drive housing.
