Solenoid Installation Procedure

1. Lightly lubricate the solenoid plunger with Lubriplate lubricant GM P/N 1050109, or with the equivalent.

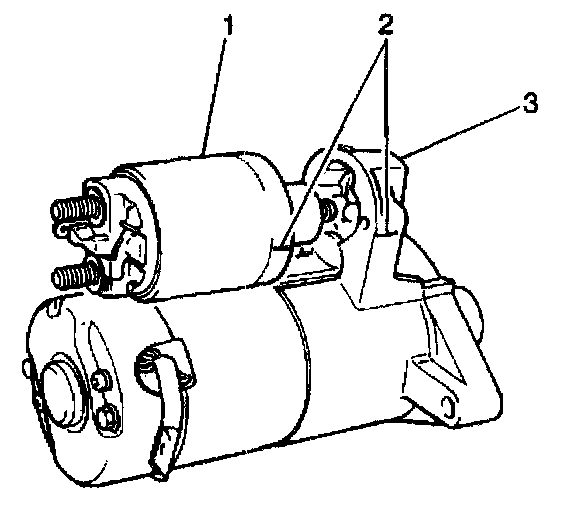

2. Install the solenoid to the drive housing, aligning the matchmarks (2).

NOTE: Refer to Fastener Notice in Service Precautions.




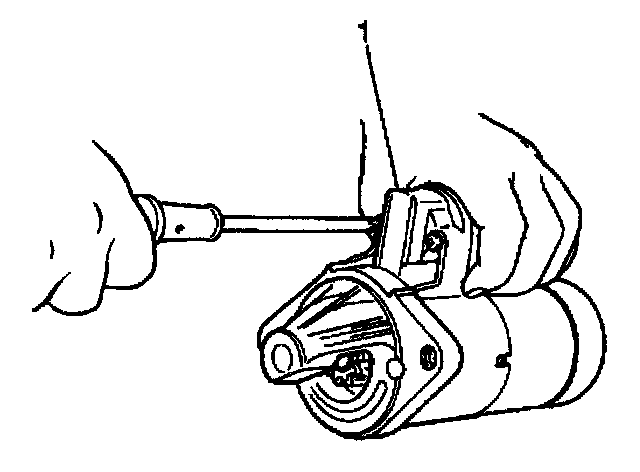

3. Install the 2 screws to the solenoid (1).

Tighten
Tighten the screws to 7 N.m (62 lb in).

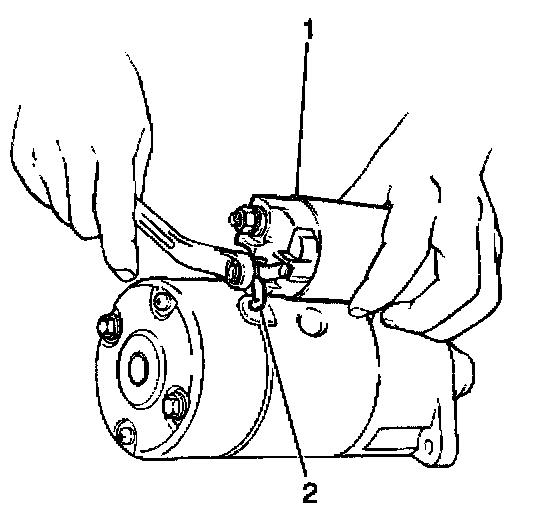

4. Install the field coil lead wire (2) and the nut to the solenoid.
5. Install the starter to the vehicle.
